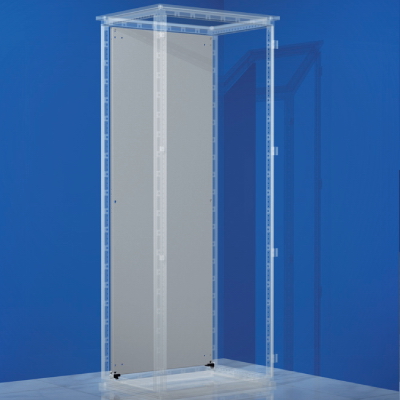

Mounting plate for cabinet of CAE / CQE 1800 x 400 mm

Code: R5PCE1840
Mounting plate for cabinet of CAE / CQE 1800 x 400 mm
Mounting plate for cabinet of CAE / CQE 1800 x 400 mm
  • To ask a question
Width, mm 400
Height, mm 1800
Perforated Нет
Surface protection Galvanized
Material Steel
Front plate width 286
Front plate height 1683
Material Galvanized steel
Enclosure type Floor
Product type Mounting plate
Drawings
Seria Name DWG (dynamic.) Eplan DWG STEP
Metal enclosures - "RAMblock"
Prefabricated outdoor metal cabinets CQE (dynamic blocks)
RAR
8.46 Mb
Metal enclosures - "RAMblock"
Prefabricated outdoor metal cabinets CQE
RAR
169.72 Mb
Metal enclosures - "RAMblock"
Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)
RAR
1.17 Mb
Metal enclosures - "RAMblock"
Installation fee for cabinets SAE/CQE 1800 x 400 mm
RAR
24.59 Kb
RAR
39.7 Kb
Certificates
Name Document
RAM block - Exemption letter for enclosures RAM block_1
PDF
3.69 MB
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
RAM block - Test report for assembled metal enclosures CQE on the seismic stability_2
PDF
844.06 kB
RAM block - Test report for assembled metal enclosures CQE on the vibration_1
PDF
805.39 kB
RAM block - Certificate of conformity to GOST R for RAM block
PDF
5.54 MB
RAM block - Test report for assembled metal enclosures CQE for accordance with GOST 15150 (UHL1)
PDF
2.11 MB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
protocol_preliminary results of heat stability
PDF
187.18 kB
Test reports on the current 100kA_"RAM block"_11
PDF
280.85 kB
Test reports on the current 6300 Amps_ "RAM block"_1
PDF
294.38 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
Certificate or Ruassian maritime register for floor enclosures CQE
PDF
664.44 kB
Russian Maritime Register of Shipping_1
PDF
8.60 MB
Certificate of conformity to GOST 14254-2015 for the Floor-mounted universal assembled enclosures series CQE (IP55, IP65)
PDF
419.92 kB
