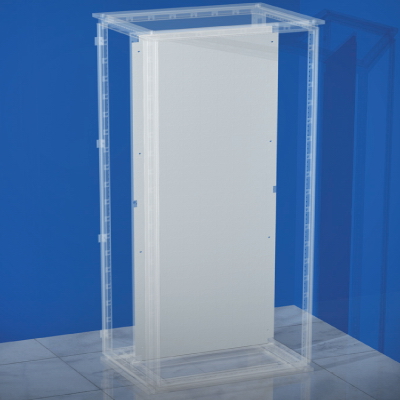

Mounting plate, extra, for cabinets of CQE, 1800 x 800 mm

Code: R5PSP1880
Mounting plate, extra, for cabinets of CQE, 1800 x 800 mm
Mounting plate, extra, for cabinets of CQE, 1800 x 800 mm
Height, mm 1800
Width, mm 800
Thickness, mm 2
Width, mm 800
Height, mm 1800
Perforated No
Surface protection Zinc coated
Material Steel
