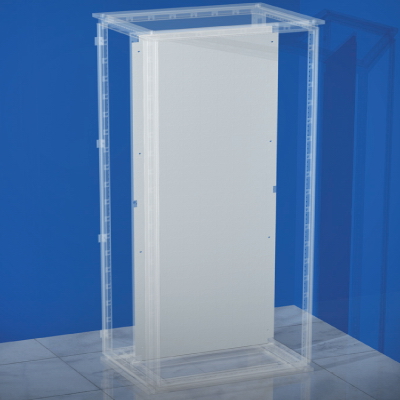

Mounting plate, extra, for cabinets of CQE, 1800 x 1000 mm

Code: R5PSP18100
Mounting plate, extra, for cabinets of CQE, 1800 x 1000 mm
Mounting plate, extra, for cabinets of CQE, 1800 x 1000 mm
Height, mm 1800
Width, mm 1000
Thickness, mm 2
Width, mm 1000
Height, mm 1800
Perforated No
Surface protection Zinc coated
Material Steel
Drawings
Seria Name Eplan DWG STEP DWG (dynamic blocks)
RAMblock - metal enclosures
Prefabricated outdoor metal cabinets CQE
RAR
169.72 MB
RAMblock - metal enclosures
Installation fee extra for CQE cabinets, 1800 x 1000 mm
RAR
20.34 kB
RAR
16.85 kB
RAMblock - metal enclosures
Prefabricated outdoor metal cabinets CQE (dynamic blocks)
RAR
8.46 MB
RAMblock - metal enclosures
Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)
RAR
1.17 MB
