| Assembly arrangement | Basic element with central cover plate |
| Model | Single push button |
| Contacts | 1 make contact (NO) |
| Imprint | None |
| Label space/information surface | No |
| Modular version | Yes |
| With lighting | Yes |
| Suitable for degree of protection (IP) | IP20 |

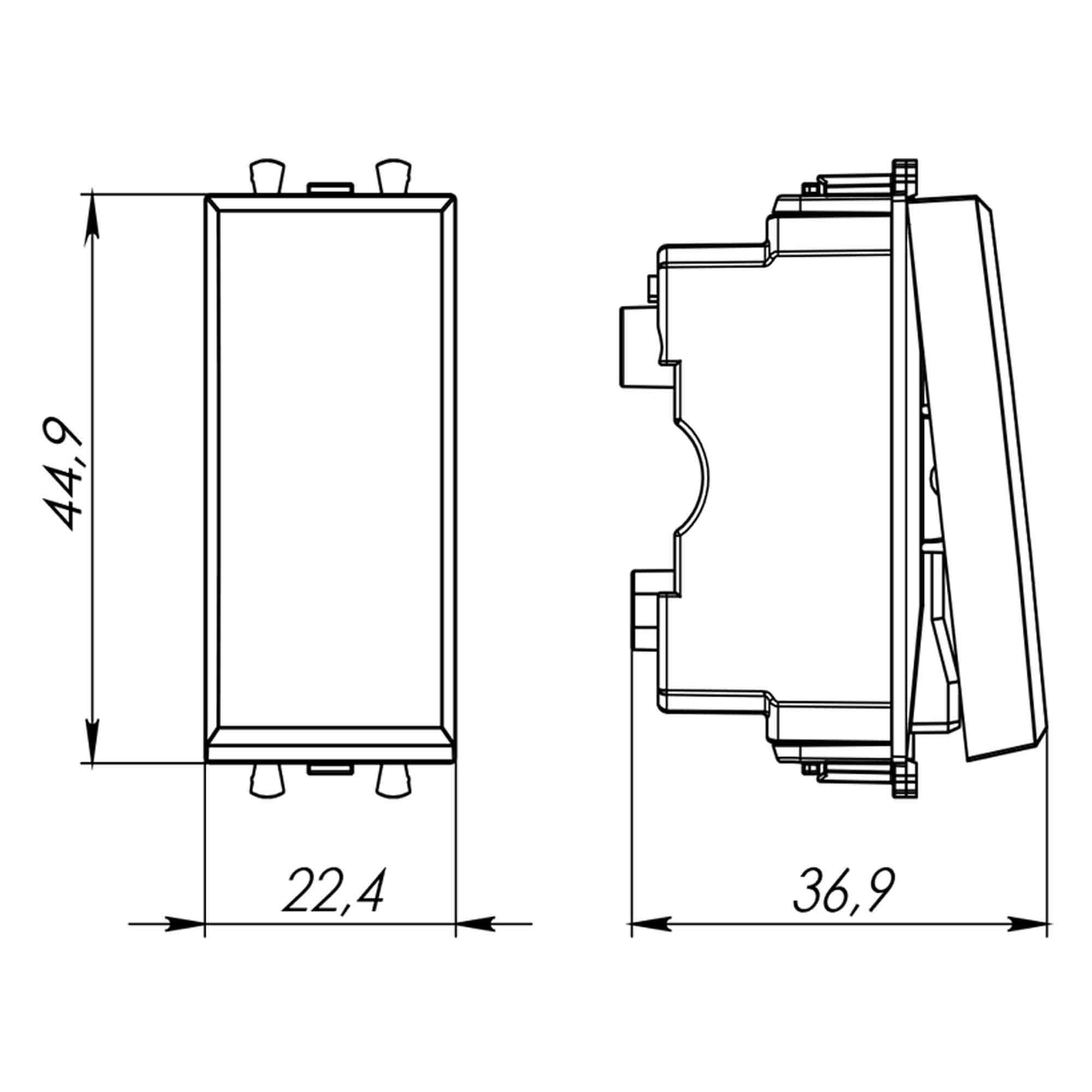

| Width of device, mm | 22.4 |
| Height of device, mm | 44.9 |
| Depth of device, mm | 36.9 |
| Nominal voltage, V | 230 |
| Method of operation | Push button |
| Colour | Black |
| Surface protection | Decor |
| Rated current, A | 10 |
| Material quality | Thermoplastic |
| Material | Plastic |
| Type of fastening | Screw mounting |
| Number of rockers | 1 |
| Surface finishing | Matt |
| Number of modules (module system) | 1 |
| Mounting method | Surface mounted (plaster) |
| Color | black matte |
| Number of modules | 1 |
| Material | PVC |
| Product type | Push-button |
| Type of installation | module element |
