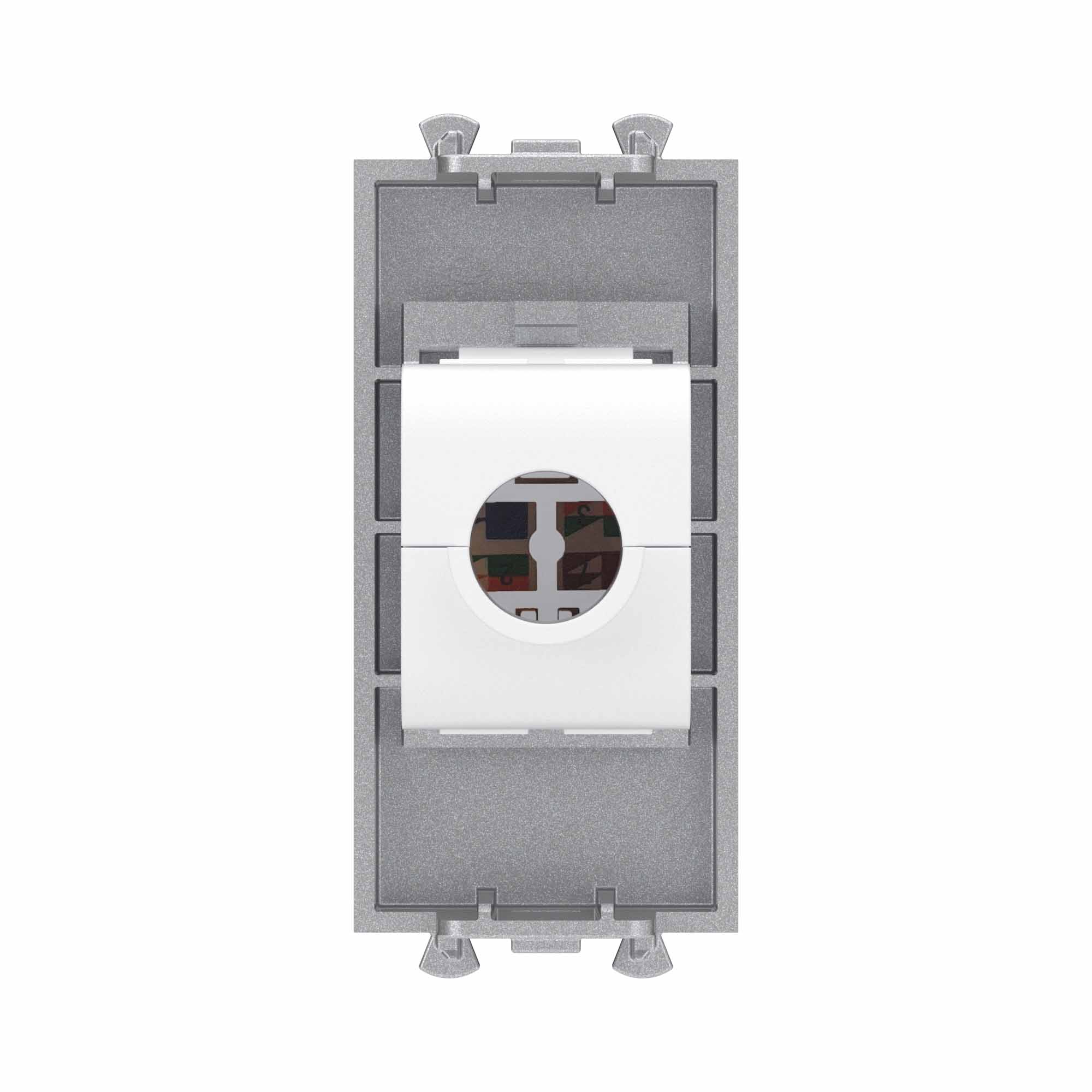

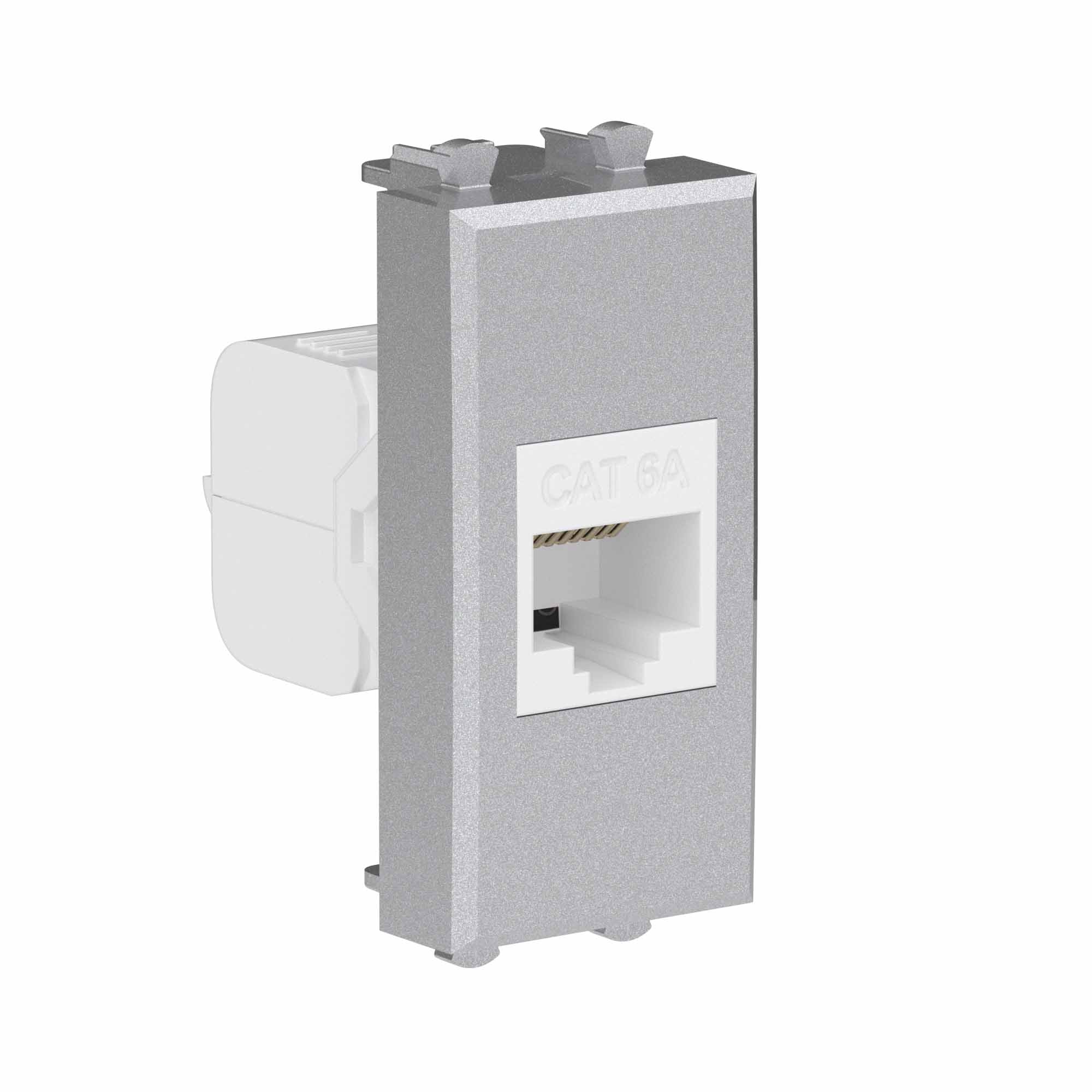

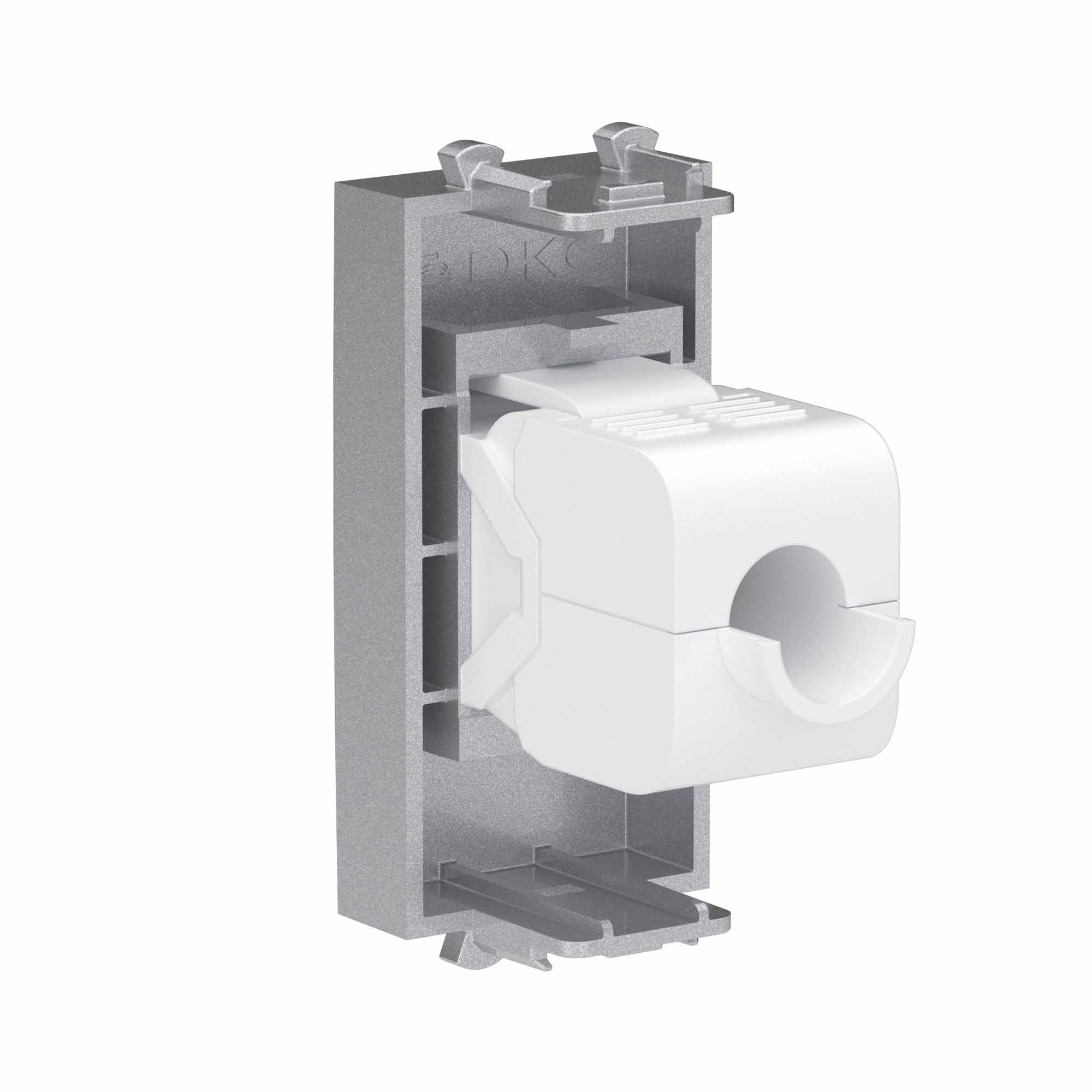

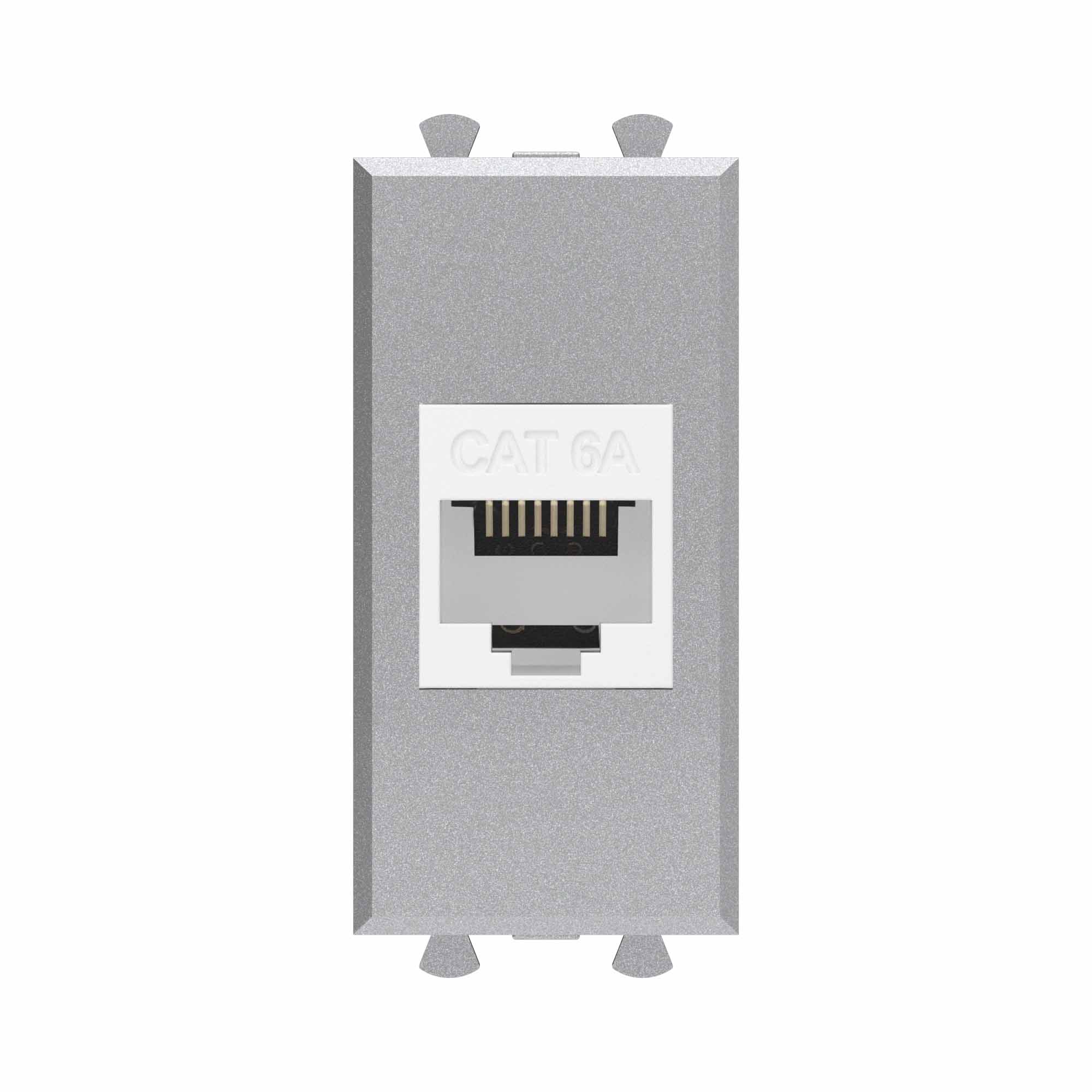

RJ-45 socket without shutter Avanti category 6A UTP, 1 mod., hardened steel
Code:
4404671
Code:
4404671
| Assembly arrangement | Basic element with central cover plate |
| Modular version | Yes |
| Category | Other |
| Duct installation | Yes |
| Type of connector | RJ45 |
| Floor box/sub-floor mounted | Yes |
| With buses/couplings | Yes |

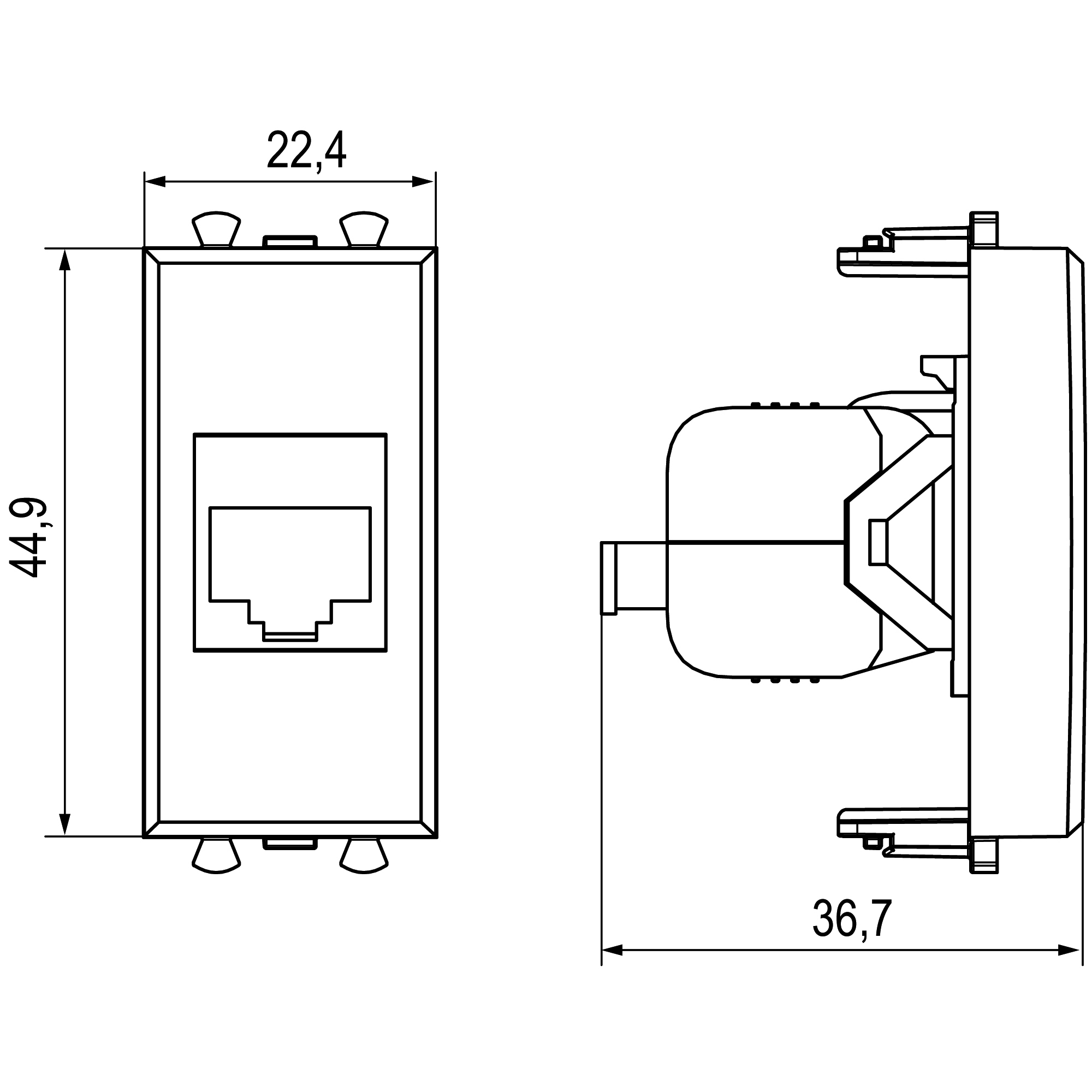

| Width of device, mm | 22.4 |
| Height of device, mm | 44.9 |
| Mounting method | Surface mounted (plaster) |
| Colour | Silver |
| Outlet direction | Straight |
| Suitable for number of connectors | 1 |
| Material | Plastic |
| Type of fastening | Engage (snap) |
| Surface finishing | Glossy |
| Degree of protection (IP) | IP20 |
| Shielded buses | No |
| Design suitable | Yes |
| With label space | No |
| With dust cover | No |
| Depth of device, mm | 36.7 |
| Color | hardened steel |
| Number of modules | 1 |
| Material | PVC |
| Product type | computer socket |
| Type of installation | module element |
| Category | 5e shielded |
