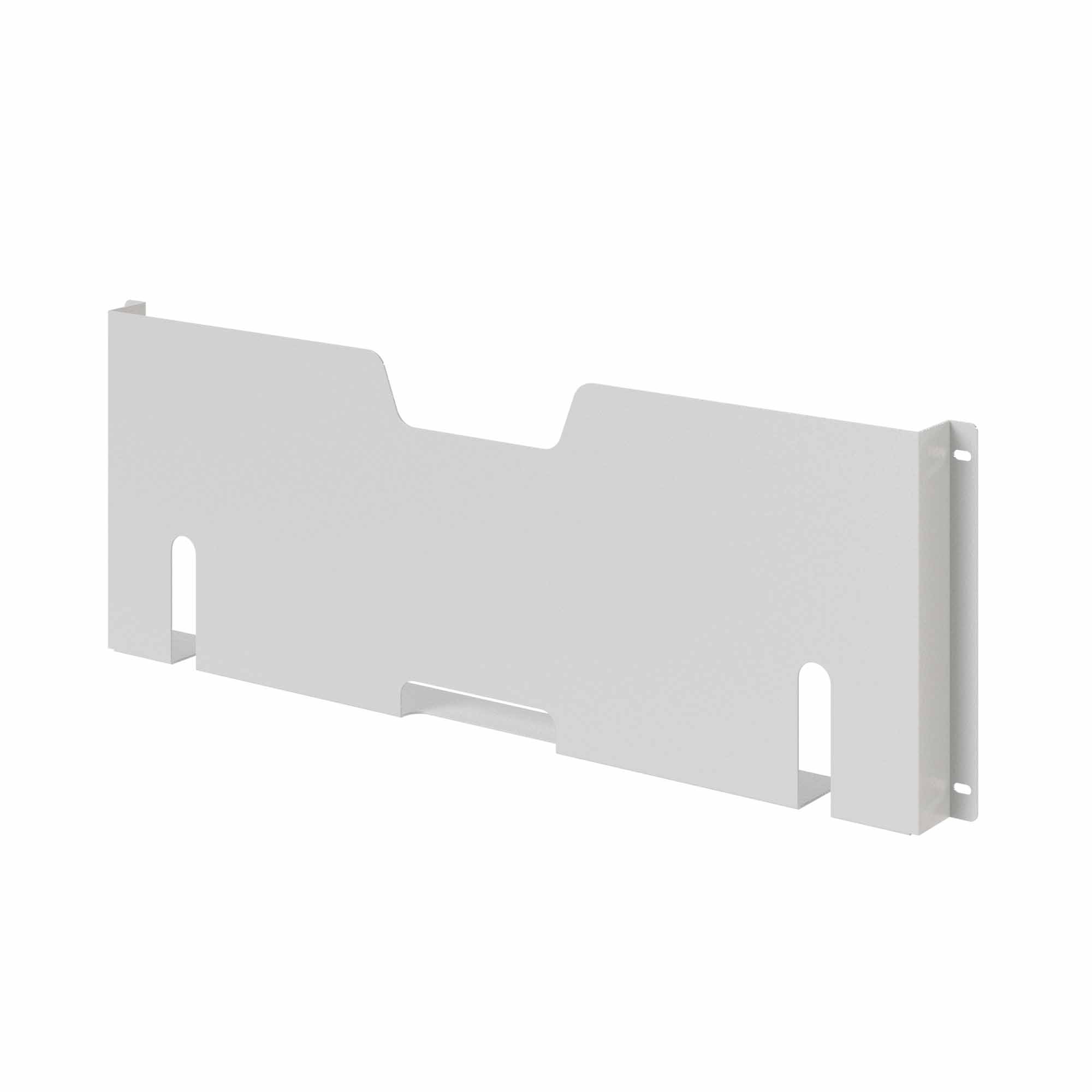

Pocket for documents, metal, for doors 800 mm (wide)

Code: R5TE80
Pocket for documents, metal, for doors 800 mm (wide)
Pocket for documents, metal, for doors 800 mm (wide)
  • To ask a question
Colour Grey
Model Wiring diagram pocket
Self adhesive mounting No
Suitable for enclosure building width, mm 800
Material Metal
Transparent No
Color gray
Useful height, mm 240
Useful depth, mm 60
Useful width, mm 645
Drawings
Seria Name Eplan DWG STEP DWG (dynamic blocks)
Metal enclosures - "RAMblock"
Prefabricated outdoor metal cabinets CQE
RAR
169.72 MB
Metal enclosures - "RAMblock"
Pocket, document pocket, metal, for doors to share 800 mm
RAR
22.43 kB
RAR
26.79 kB
Metal enclosures - "RAMblock"
Prefabricated outdoor metal cabinets CQE (dynamic blocks)
RAR
8.46 MB
Metal enclosures - "RAMblock"
Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)
RAR
1.17 MB
Certificates
Name Document
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
