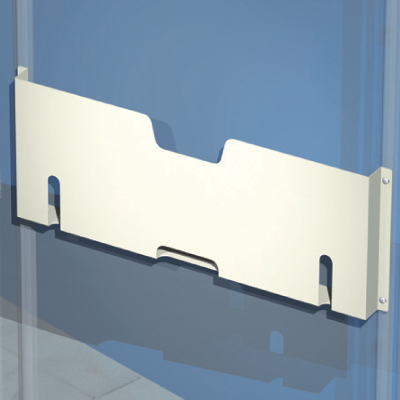

Pocket for documents, metal, for doors 600 mm (wide)

Pocket for documents, metal, for doors 600 mm (wide)

Code: R5TE60

Pocket for documents, metal, for doors 600 mm (wide)

Pocket for documents, metal, for doors 600 mm (wide)

To ask a question

Colour	Grey
Model	Wiring diagram pocket
Self adhesive mounting	No

Suitable for enclosure building width, mm	600
Material	Metal
Transparent	No

Color	gray
Height, mm	240

Thickness, mm	1.5
Depth, mm	60

Drawings

Seria	Name	Eplan	DWG	STEP	DWG (dynamic blocks)
RAMblock - metal enclosures	Prefabricated outdoor metal cabinets CQE	RAR 169.72 MB
RAMblock - metal enclosures	Pocket, document pocket, metal, for doors Share 600 mm		RAR 22.55 kB	RAR 27.81 kB
RAMblock - metal enclosures	Prefabricated outdoor metal cabinets CQE (dynamic blocks)				RAR 8.46 MB
RAMblock - metal enclosures	Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)				RAR 1.17 MB

Certificates

Name	Document
RAM block - Exemption letter for accessories RAM block_1	PDF 742.54 kB
Test report on hinged welded cabinets ST_UHL1_1	PDF 196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"	PDF 5.99 MB
