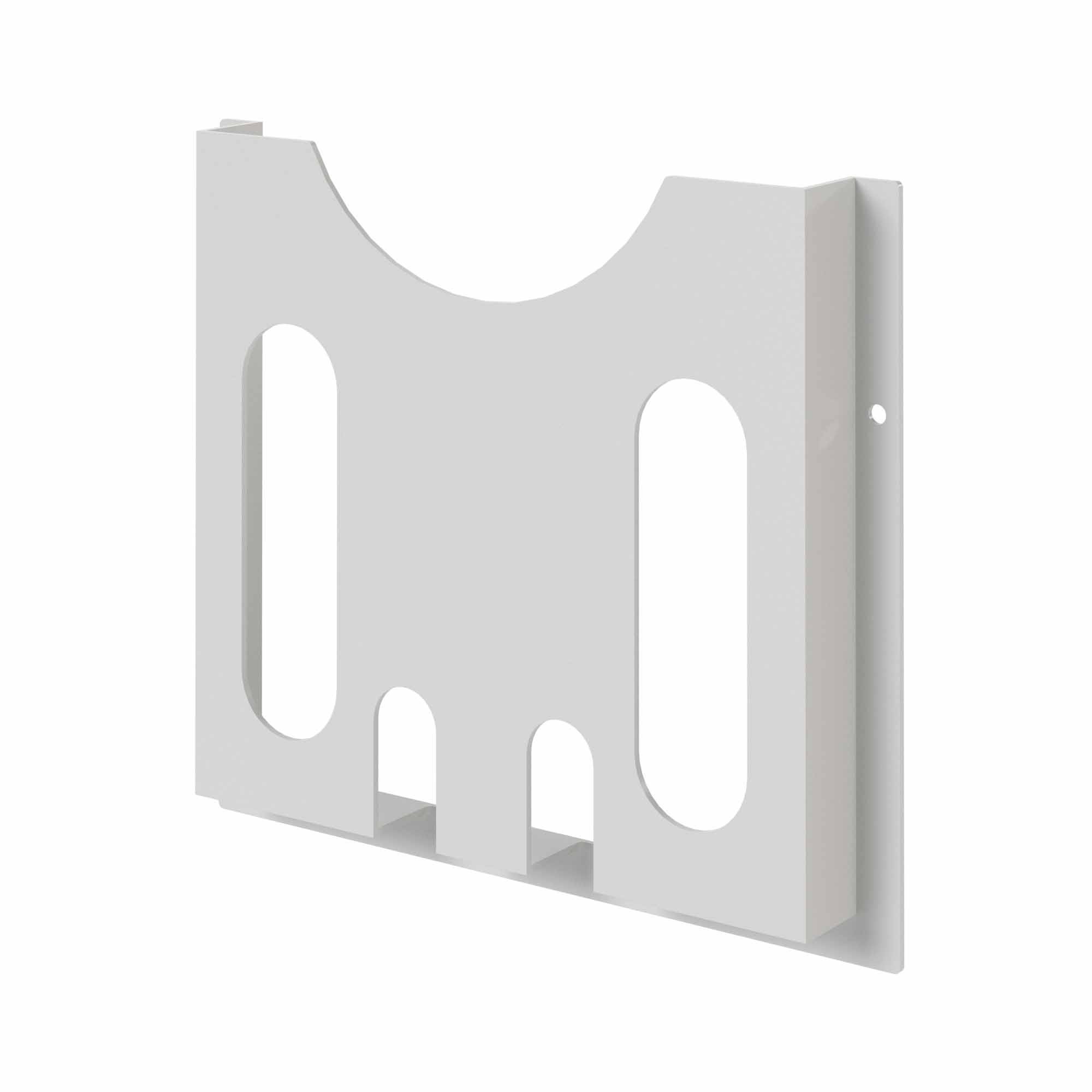

Pocket for documents, plastic, 222x230x30 mm

Pocket for documents, plastic, 222x230x30 mm

Code: R5A32

To ask a question

Colour	Grey
Model	Wiring diagram pocket
Self adhesive mounting	Yes

Material	Plastic
Transparent	No

Color	gray
Useful height, mm	222

Useful depth, mm	30
Useful width, mm	230

Drawings

Seria	Name	Eplan	DWG	STEP	DWG (dynamic blocks)
Metal enclosures - "RAMblock"	Prefabricated outdoor metal cabinets CQE	RAR 169.72 MB
Metal enclosures - "RAMblock"	Pocket, document pocket, plastic, 222x230x30 mm		RAR 28.28 kB	RAR 15.54 kB
Metal enclosures - "RAMblock"	Prefabricated outdoor metal cabinets CQE (dynamic blocks)				RAR 8.46 MB
Metal enclosures - "RAMblock"	Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)				RAR 1.17 MB

Certificates

Name	Document
RAM block - Exemption letter for accessories RAM block_1	PDF 742.54 kB
Test report on hinged welded cabinets ST_UHL1_1	PDF 196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"	PDF 5.99 MB
