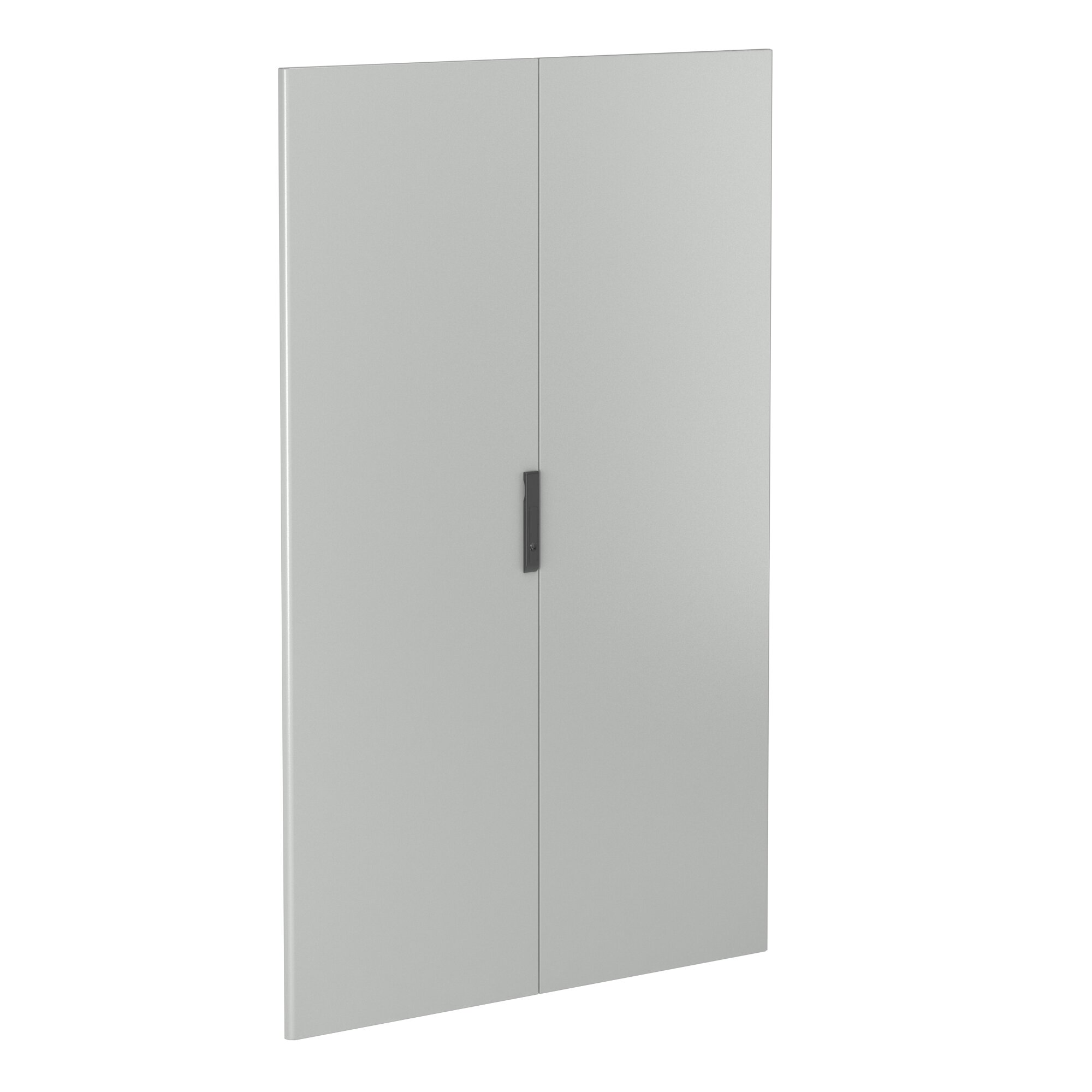

The door is solid, for cabinets of CAE / CQE, 2000 x 1200 mm

The door is solid, for cabinets of CAE / CQE, 2000 x 1200 mm

Code: R5CPE20120

To ask a question

Material	Steel
Surface finishing	Powder coating
Colour	Grey
Width, mm	1200
Height, mm	2000
Depth, mm	2

Model	Lock door
EMC-version	Нет
Degree of protection (IP)	Other
Version as glazed door	Нет
Version as door for disconnecting switch interlocking	Нет
Perforated	Нет

Material	Painted steel
Enclosure type	Floor

Enclosure specification	With a double door
Product type	Doors

Drawings

Seria	Name	Eplan	DWG	STEP	DWG (dynamic blocks)
Metal enclosures - "RAMblock"	Prefabricated outdoor metal cabinets CQE	RAR 169.72 MB
Metal enclosures - "RAMblock"	Door Splash, cabinets SAE/CQE, 2000 x 1200 mm		RAR 93.83 kB	RAR 1.30 MB
Metal enclosures - "RAMblock"	Prefabricated outdoor metal cabinets CQE (dynamic blocks)				RAR 8.46 MB
Metal enclosures - "RAMblock"	Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)				RAR 1.17 MB

Certificates

Name	Document
RAM block - Exemption letter for enclosures RAM block_1	PDF 3.69 MB
RAM block - Exemption letter for accessories RAM block_1	PDF 742.54 kB
RAM block - Test report for assembled metal enclosures CQE on the seismic stability_2	PDF 844.06 kB
RAM block - Test report for assembled metal enclosures CQE on the vibration_1	PDF 805.39 kB
RAM block - Certificate of conformity to GOST R for RAM block	PDF 5.54 MB
RAM block - Test report for assembled metal enclosures CQE for accordance with GOST 15150 (UHL1)	PDF 2.11 MB
Test report on hinged welded cabinets ST_UHL1_1	PDF 196.35 kB
protocol_preliminary results of heat stability	PDF 187.18 kB
Test reports on the current 100kA_"RAM block"_11	PDF 280.85 kB
Test reports on the current 6300 Amps_ "RAM block"_1	PDF 294.38 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"	PDF 5.99 MB
Certificate or Ruassian maritime register for floor enclosures CQE	PDF 664.44 kB
Russian Maritime Register of Shipping_1	PDF 8.60 MB
Certificate of conformity to GOST 14254-2015 for the Floor-mounted universal assembled enclosures series CQE (IP55, IP65)	PDF 419.92 kB
