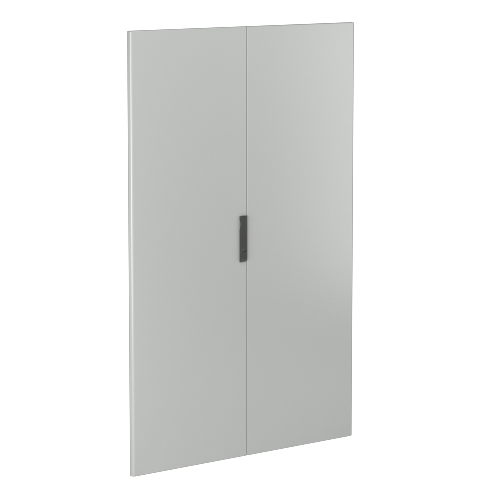

The door is solid, double, for cabinets of CAE / CQE, 1600 x 800 mm

Code: R5CPE1681
The door is solid, double, for cabinets of CAE / CQE, 1600 x 800 mm
The door is solid, double, for cabinets of CAE / CQE, 1600 x 800 mm
Material Steel
Type of surface With powder coating
Colour Grey
Width, mm 800
Height, mm 1600
Depth, mm 2
Model Asymmetrically divided double wing door
EMC-version No
Degree of protection (IP) Other
Version as glazed door No
Version as door for disconnecting switch interlocking No
Perforated No
Color gray
Height, mm 1600
Width, mm 800
Thickness, mm 2
