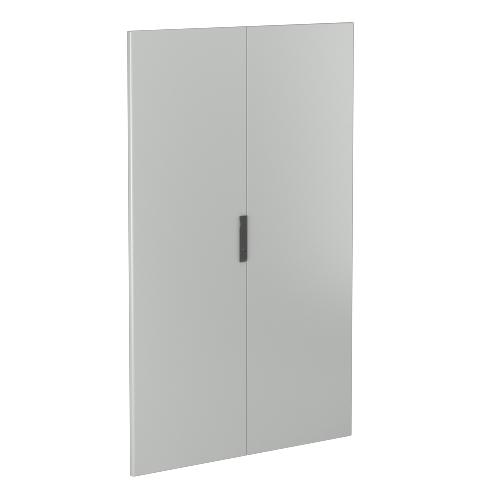

The door is solid, double, for cabinets of CAE / CQE, 1000 x 2000 mm

Code: R5CPE10200
The door is solid, double, for cabinets of CAE / CQE, 1000 x 2000 mm
The door is solid, double, for cabinets of CAE / CQE, 1000 x 2000 mm
Color gray
Height, mm 1000
Width, mm 2000
Thickness, mm 2
Material Steel
Type of surface With powder coating
Colour Grey
Width, mm 2000
Height, mm 1000
Depth, mm 2
Model Asymmetrically divided double wing door
EMC-version No
Degree of protection (IP) Other
Version as glazed door No
Version as door for disconnecting switch interlocking No
Perforated No
Drawings
Seria Name Eplan DWG (dynamic blocks)
RAMblock - metal enclosures
Prefabricated outdoor metal cabinets CQE
RAR
169.72 MB
RAMblock - metal enclosures
Prefabricated outdoor metal cabinets CQE (dynamic blocks)
RAR
8.46 MB
RAMblock - metal enclosures
Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)
RAR
1.17 MB
Certificates
Name Document
RAM block - Exemption letter for enclosures RAM block_1
PDF
3.69 MB
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
RAM block - Test report for assembled metal enclosures CQE on the seismic stability_2
PDF
844.06 kB
RAM block - Test report for assembled metal enclosures CQE on the vibration_1
PDF
805.39 kB
RAM block - Certificate of conformity to GOST R for RAM block
PDF
5.54 MB
RAM block - Test report for assembled metal enclosures CQE for accordance with GOST 15150 (UHL1)
PDF
2.11 MB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
protocol_preliminary results of heat stability
PDF
187.18 kB
Test reports on the current 100kA_"RAM block"_11
PDF
280.85 kB
Test reports on the current 6300 Amps_ "RAM block"_1
PDF
294.38 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
Certificate or Ruassian maritime register for floor enclosures CQE
PDF
664.44 kB
Russian Maritime Register of Shipping_1
PDF
8.60 MB
Certificate of conformity to GOST 14254-2015 for the Floor-mounted universal assembled enclosures series CQE (IP55, IP65)
PDF
419.92 kB
