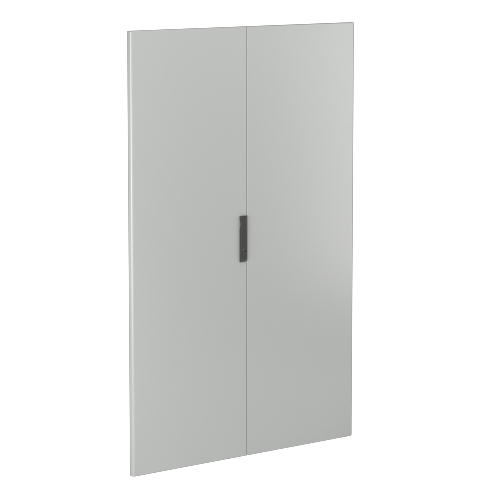

The door is solid, double, for cabinets of CAE / CQE, 1000 x 1800 mm

Code: R5CPE10180
The door is solid, double, for cabinets of CAE / CQE, 1000 x 1800 mm
The door is solid, double, for cabinets of CAE / CQE, 1000 x 1800 mm
Material Steel
Type of surface With powder coating
Colour Grey
Width, mm 1800
Height, mm 1000
Depth, mm 2
Model Asymmetrically divided double wing door
EMC-version No
Degree of protection (IP) Other
Version as glazed door No
Version as door for disconnecting switch interlocking No
Perforated No
Color gray
Height, mm 1000
Width, mm 1800
Thickness, mm 2
Drawings
Seria Name Eplan DWG (dynamic blocks)
RAMblock - metal enclosures
Prefabricated outdoor metal cabinets CQE
RAR
169.72 MB
RAMblock - metal enclosures
Prefabricated outdoor metal cabinets CQE (dynamic blocks)
RAR
8.46 MB
RAMblock - metal enclosures
Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)
RAR
1.17 MB
Certificates
Name Document
RAM block - Exemption letter for enclosures RAM block_1
PDF
3.69 MB
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
RAM block - Test report for assembled metal enclosures CQE on the seismic stability_2
PDF
844.06 kB
RAM block - Test report for assembled metal enclosures CQE on the vibration_1
PDF
805.39 kB
RAM block - Certificate of conformity to GOST R for RAM block
PDF
5.54 MB
RAM block - Test report for assembled metal enclosures CQE for accordance with GOST 15150 (UHL1)
PDF
2.11 MB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
protocol_preliminary results of heat stability
PDF
187.18 kB
Test reports on the current 100kA_"RAM block"_11
PDF
280.85 kB
Test reports on the current 6300 Amps_ "RAM block"_1
PDF
294.38 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
Certificate or Ruassian maritime register for floor enclosures CQE
PDF
664.44 kB
Russian Maritime Register of Shipping_1
PDF
8.60 MB
Certificate of conformity to GOST 14254-2015 for the Floor-mounted universal assembled enclosures series CQE (IP55, IP65)
PDF
419.92 kB
Show all
