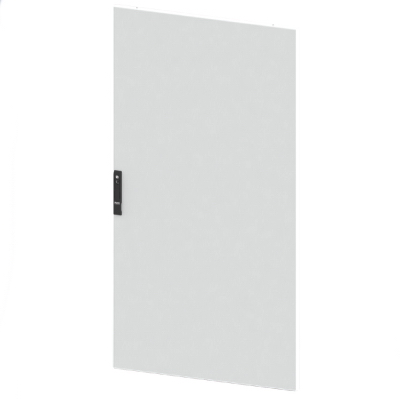

The door is solid, for cabinets of CAE / CQE, 1200 x 600 mm
Code: R5CPE1260
| Type of surface | With powder coating |
| Colour | Grey |
| Height, mm | 1200 |
| Width, mm | 600 |
| Depth, mm | 2 |
| Demountable | No |
| Degree of protection (IP) | IP65 |
| Number of doors | 1 |
| Number of height units | 1 |
| With socket | No |
| With roof plate | No |
| With earthing | No |
| With front door | Yes |
| With backside door | No |
| With sidewall | No |
- RAM block - Exemption letter for enclosures RAM block_1 (4 MB)
- RAM block - Test report for assembled metal enclosures CQE on the seismic stability_2 (844 kB)
- RAM block - Test report for assembled metal enclosures CQE on the vibration_1 (805 kB)
- RAM block - Certificate of conformity to GOST R for RAM block (6 MB)
- RAM block - Test report for assembled metal enclosures CQE for accordance with GOST 15150 (UHL1) (2 MB)
- RAM block - Test report for assembled metal enclosures CQE for grounding (158 kB)
- protocol_preliminary results of heat stability (187 kB)
- Test reports on the current 100kA_"RAM block"_11 (281 kB)
- Test reports on the current 6300 Amps_ "RAM block"_1 (294 kB)
- Certificate or Ruassian maritime register for floor enclosures CQE (664 kB)
- Russian Maritime Register of Shipping_1 (9 MB)
- Certificate of conformity to GOST 14254-2015 for the Floor-mounted universal assembled enclosures series CQE (IP55, IP65) (420 kB)
Standard solutions
| Seria | Name | Eplan | STEP | DWG | DWG (dynamic blocks) |
|---|---|---|---|---|---|
| RAMblock - metal enclosures | Prefabricated outdoor metal cabinets CQE | Link | |||
| Door Splash, cabinets SAE/CQE, 1200 x 600 mm | Link | Link | |||
| Prefabricated outdoor metal cabinets CQE (dynamic blocks) | Link | ||||
| Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks) | Link |
