Code: R5PIE12100
Type of surfaceWith powder coating
Width, mm1000
Height, mm1200
Depth, mm2
ModelInner door
Degree of protection (IP)Other
Version as glazed doorNo
Version as door for disconnecting switch interlockingNo

Enclosures and accessories
Seria Name Eplan STEP DWG DWG (dynamic blocks)
RAMblock - metal enclosures Prefabricated outdoor metal cabinets CQE Link

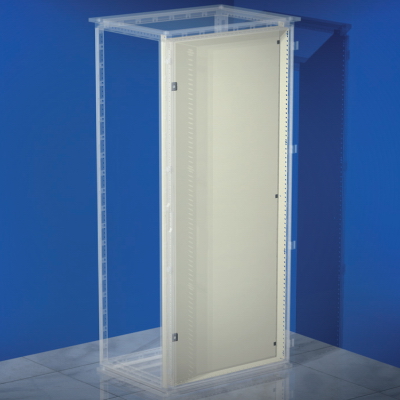

Inner door for cabinets SAE/CQE 1200 x 1000 mm Link Link
Prefabricated outdoor metal cabinets CQE (dynamic blocks) Link
Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks) Link
