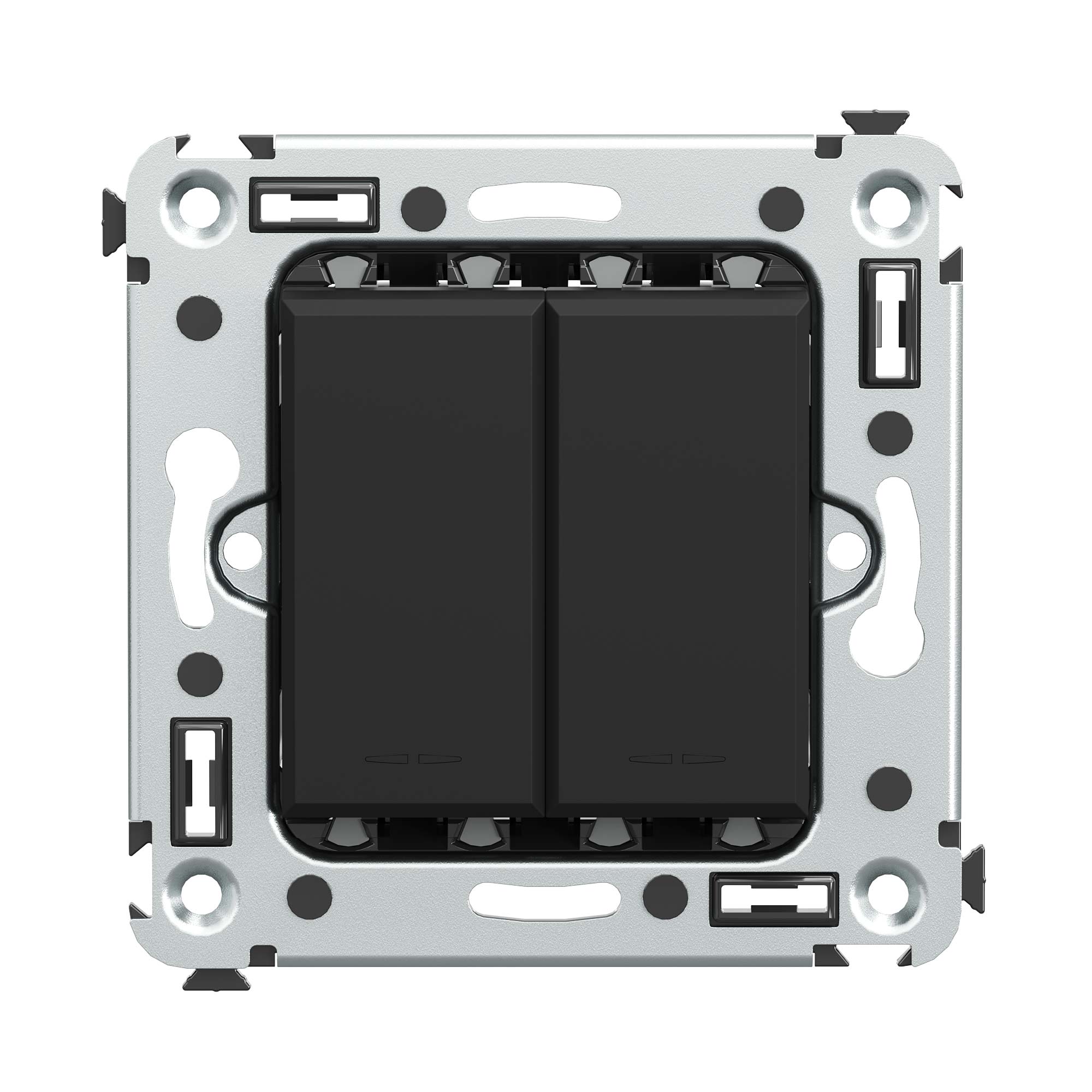

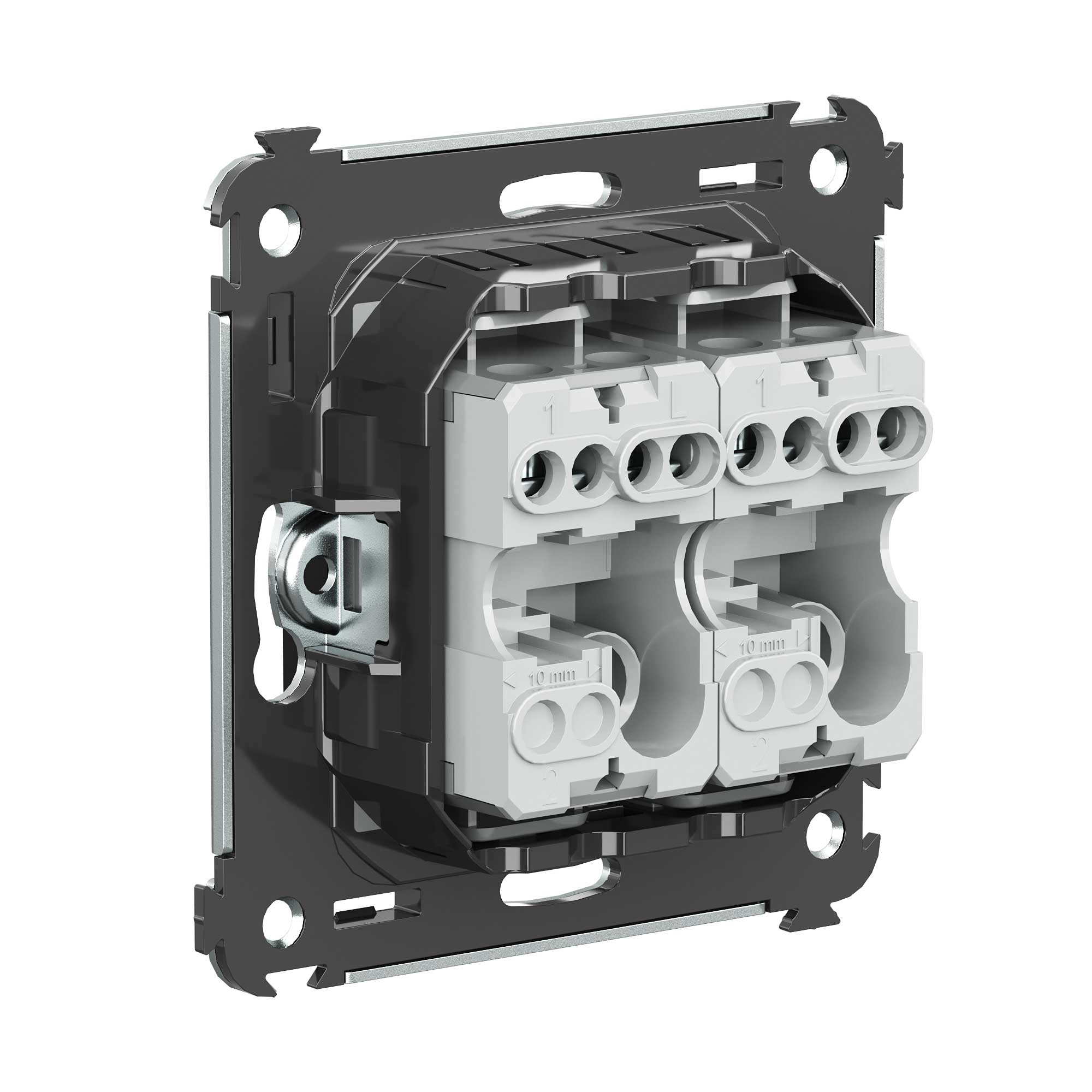

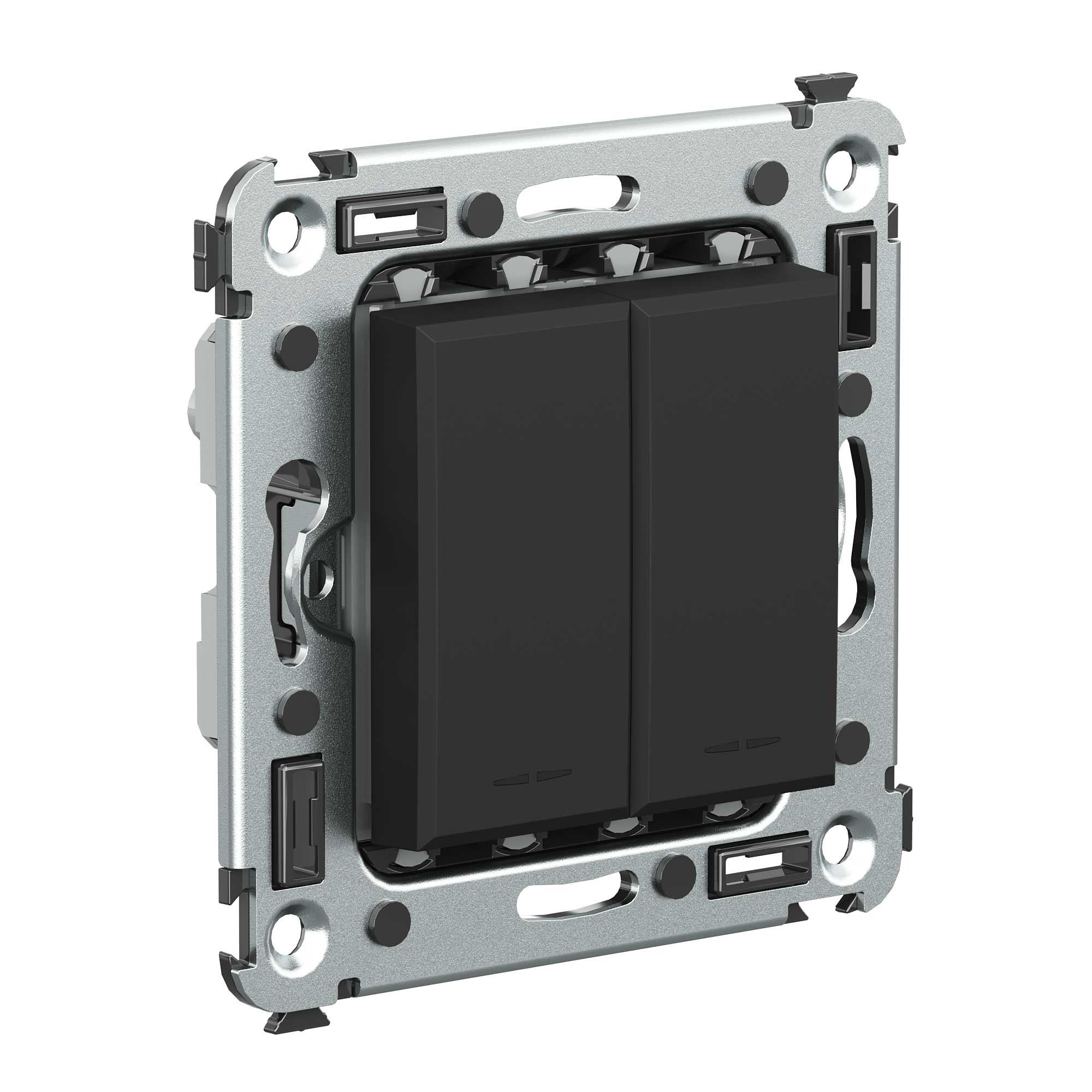

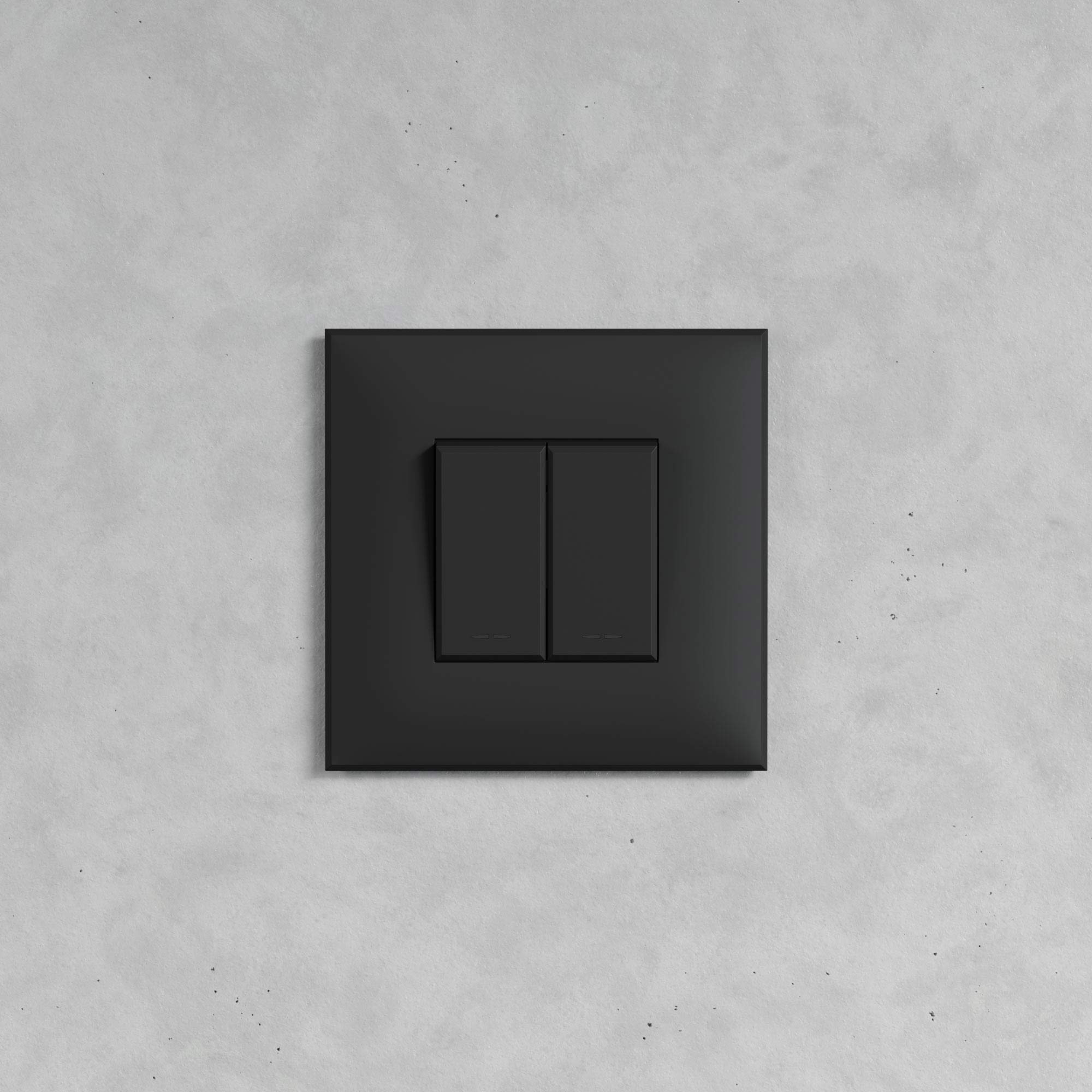

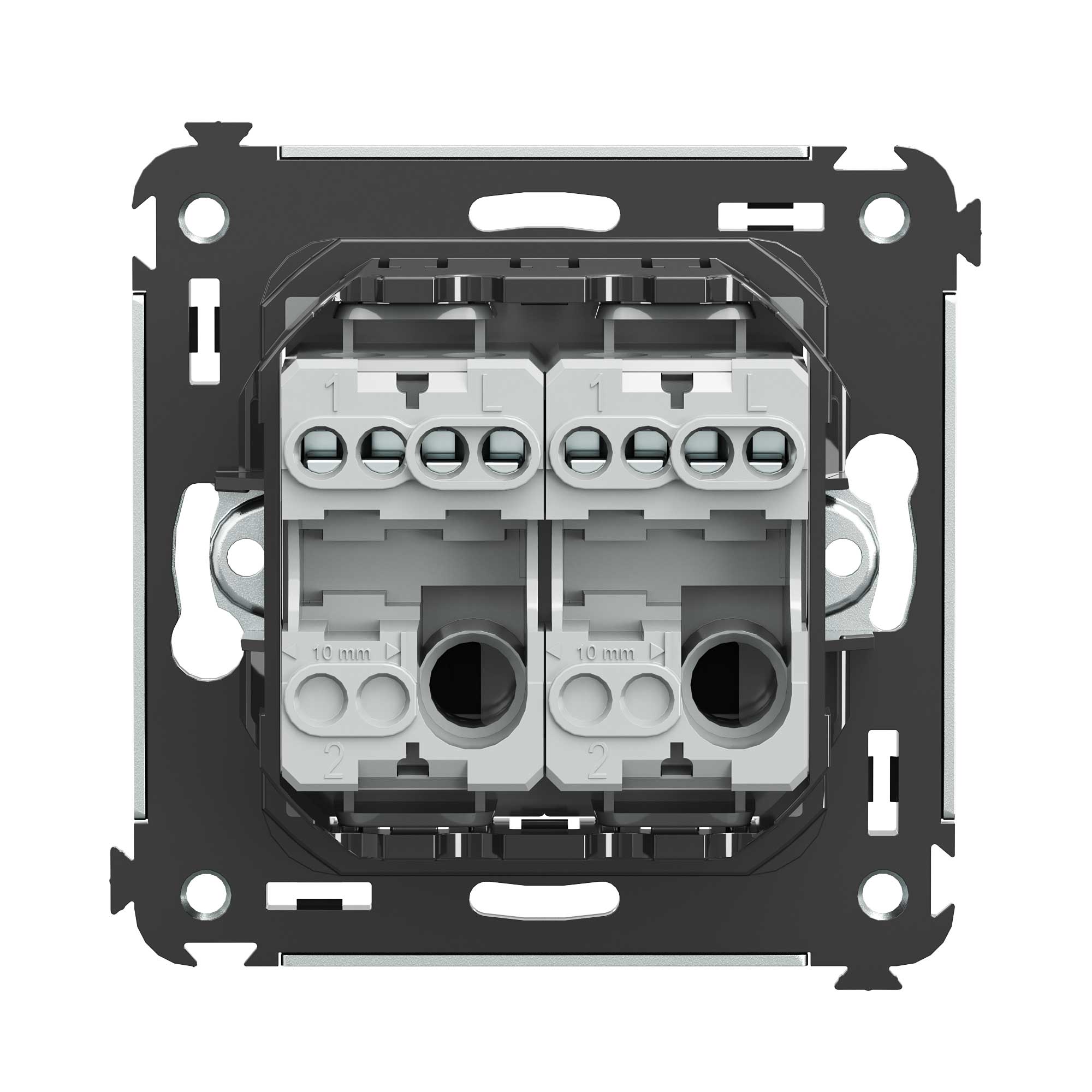

Push-button, double, 10A, Avanti, black matt, 2 mod.

Code: 4412154
Code: 4412154
  • To ask a question
Nominal voltage, V 230
Mounting method Flush mounted (plaster)
Method of operation Push button
Colour Black
Rated current, A 10
Material quality Thermoplastic
Material Plastic
Number of rockers 2
Surface finishing Matt
Width of device, mm 44.9
Height of device, mm 44.9
Depth of device, mm 36.9
Number of modules (module system) 2
Assembly arrangement Basic element with central cover plate
Model Single push button
Contacts 1 make contact (NO)
Imprint None
Surface protection Decor
Label space/information surface No
Modular version No
Type of fastening Screw mounting
With lighting Yes
Suitable for degree of protection (IP) IP20
Color black matte
Number of modules 2
Material PVC
Product type Push-button
Type of installation concealed installation
Button type two - key
