Flush mounting double two way switch 16A, Avanti, black matt, 2 mod.

Code: 4412114
Code: 4412114
  • To ask a question
Nominal voltage, V 230
Mounting method Flush mounted (plaster)
Method of operation Rocker/button
Colour Black
Illumination Possible to install an additional LED backlight
Rated current, A 16
Material quality Thermoplastic
Material Plastic
Type of fastening Screw mounting
Number of rockers 2
Surface finishing Matt

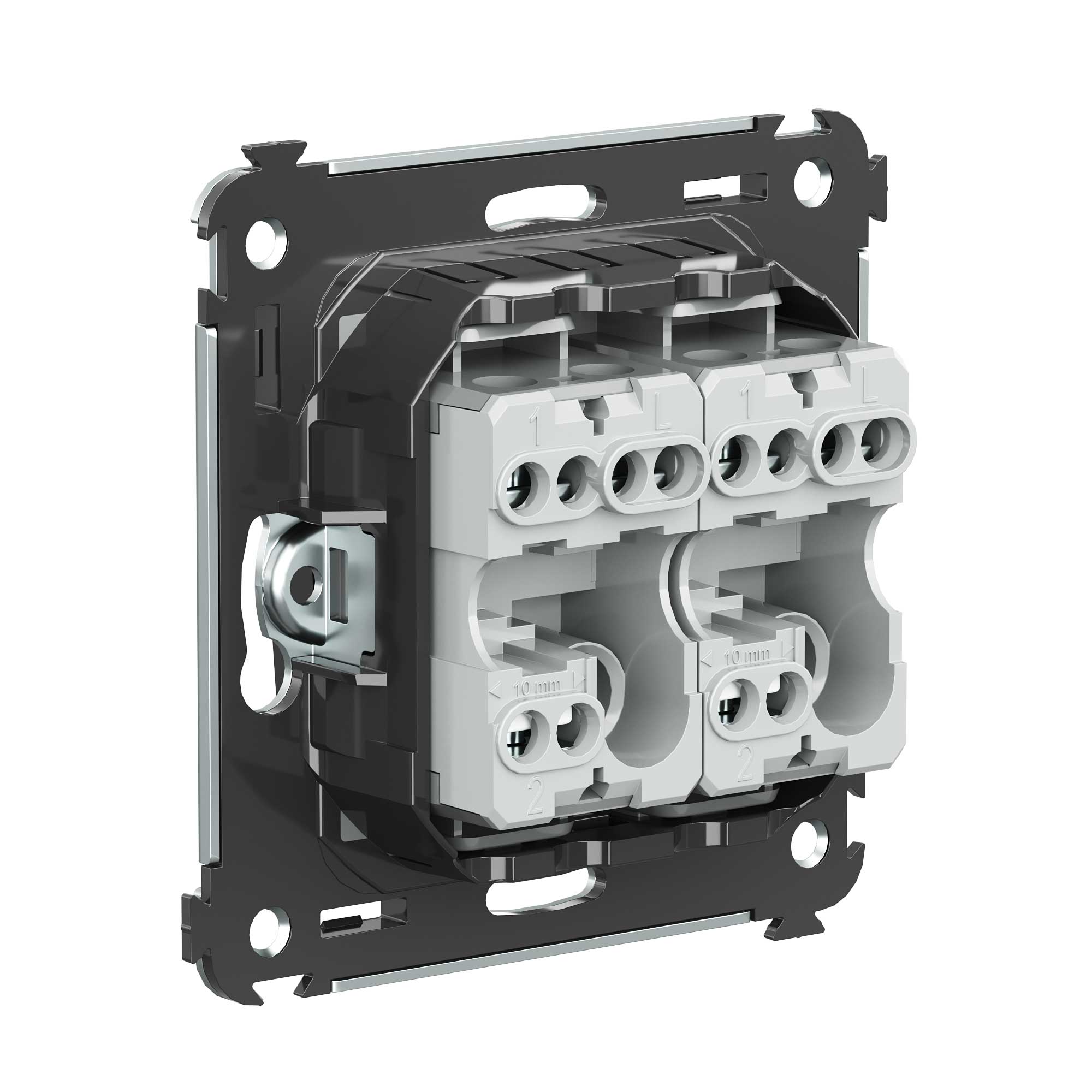

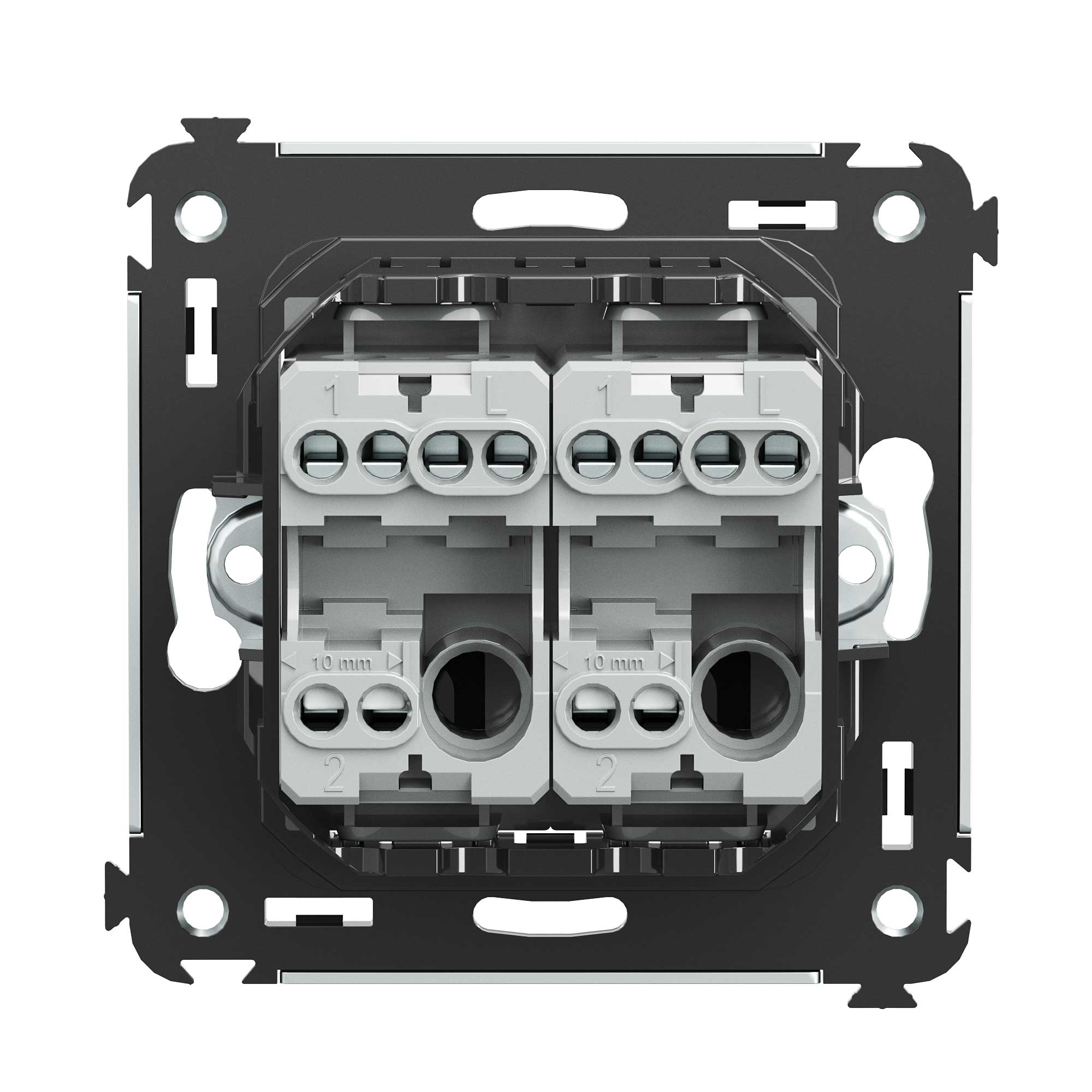

Connection type Screwed terminal
Number of modules (module system) 2
Surface protection Decor
Assembly arrangement Basic element with central cover plate
Modular version No
Wiring system Two-way switch
Push button switch No
Suitable for degree of protection (IP) IP20

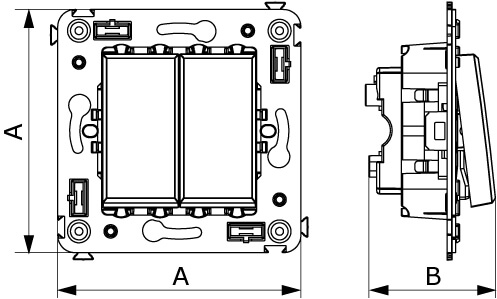

Width of device, mm 70.9
Height of device, mm 70.9
Depth of device, mm 36.9
Label space/information surface No
Color black matte
Number of modules 2
Material PVC
Product type Switch
Type of installation concealed installation
