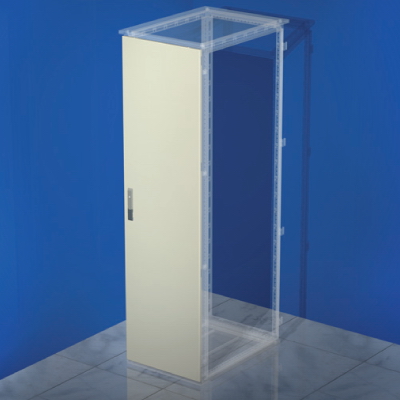

The side door, 2200x500mm

Code: R5CPLE2250

To ask a question

Material	Steel
Type of surface	With powder coating
Colour	Grey
Width, mm	500
Height, mm	2200
Depth, mm	2

Model	Lock door
EMC-version	No
Degree of protection (IP)	Other
Version as glazed door	No
Version as door for disconnecting switch interlocking	No
Perforated	No

Color	gray
Height, mm	2200

Width, mm	500
Thickness, mm	2
