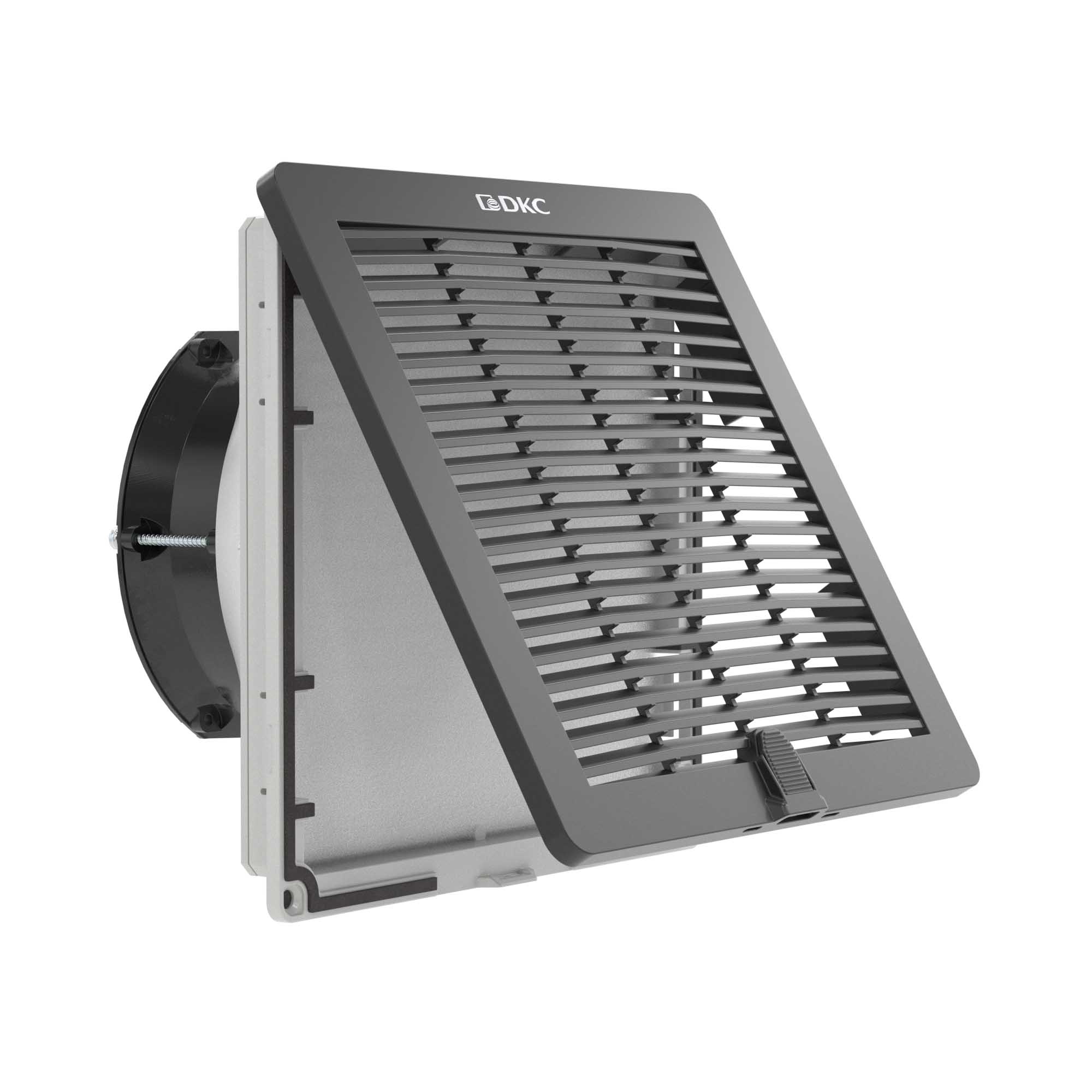

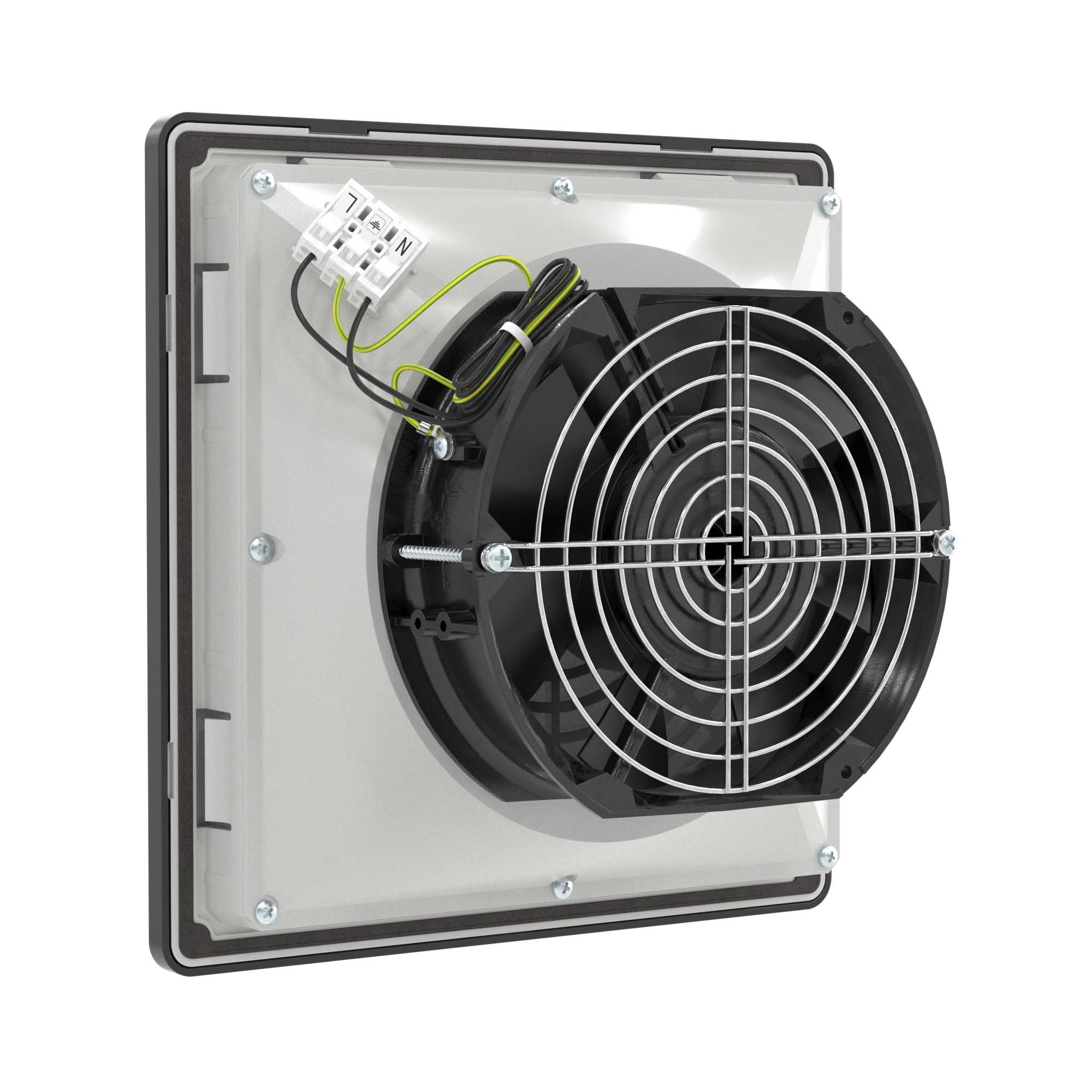

Fan with filter RV 670/730 m3/h, 230 V, 325x325 mm, IP54, RAL9005

Code: R5RV20230PB
Fan with filter RV 670/730 m3/h, 230 V, 325x325 mm, IP54, RAL9005
  • To ask a question
829

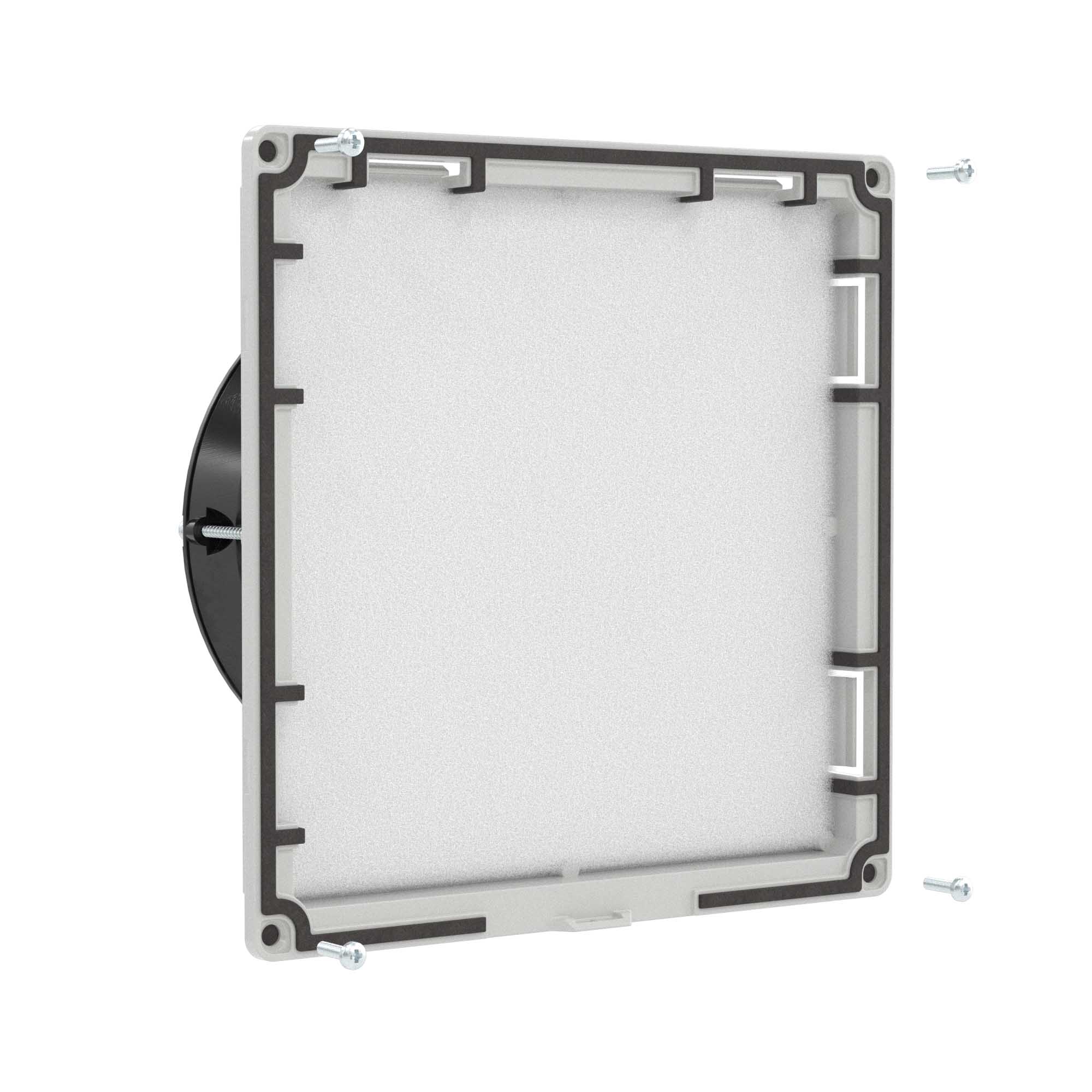

Mounting method Snap mounting
Colour Black
Width, mm 325
Height, mm 325
Depth, mm 154
RAL-number 7035
Voltage type AC
Suitable for 19 inch rack mounting Yes
Number of fans 1
EMC-version Yes
Degree of protection (IP) IP54
With protective cover Yes
With filter Yes
Rated power, W 136
Roof ventilator Yes
Built as slide-in ventilator Yes
Volume flow, freeblowing, m³/h 670
Air circulator Yes
Wall build in Yes
Noise emission, dB(A) 70
Product type Fan
Mounting type Wall-mounted
Rated operating voltage V, ~, Hz 230 V, 1 p, 50/60 Hz
Unimpeded air flow, m3/h 670
Size Size 20, 325 x 325
EMC-version No
Code of ventilation grille R5RF20B
External dimensions (W x H x D), mm 325 x 325 x 154
Maximum installation depth, mm 139.4
Required mounting cut-out (W x H), mm 292 x 292
Degree of protection IP54
Optionally degree of protection IP55, IP56
Material ABS plastic, PC, UL94V0
Operating temperature range, ˚C -10…+55
Storage temperature range, ˚C -40…+70
Noise level, dB(A) 70
Rated current, A 0.61
Rated power consumption, W 136
Maximum static pressure, Pa 120
Service life (MTBF), h 50000
Filter class G3
Color RAL 9005, black
Weight, kg 3.1
Accessories
Analogs

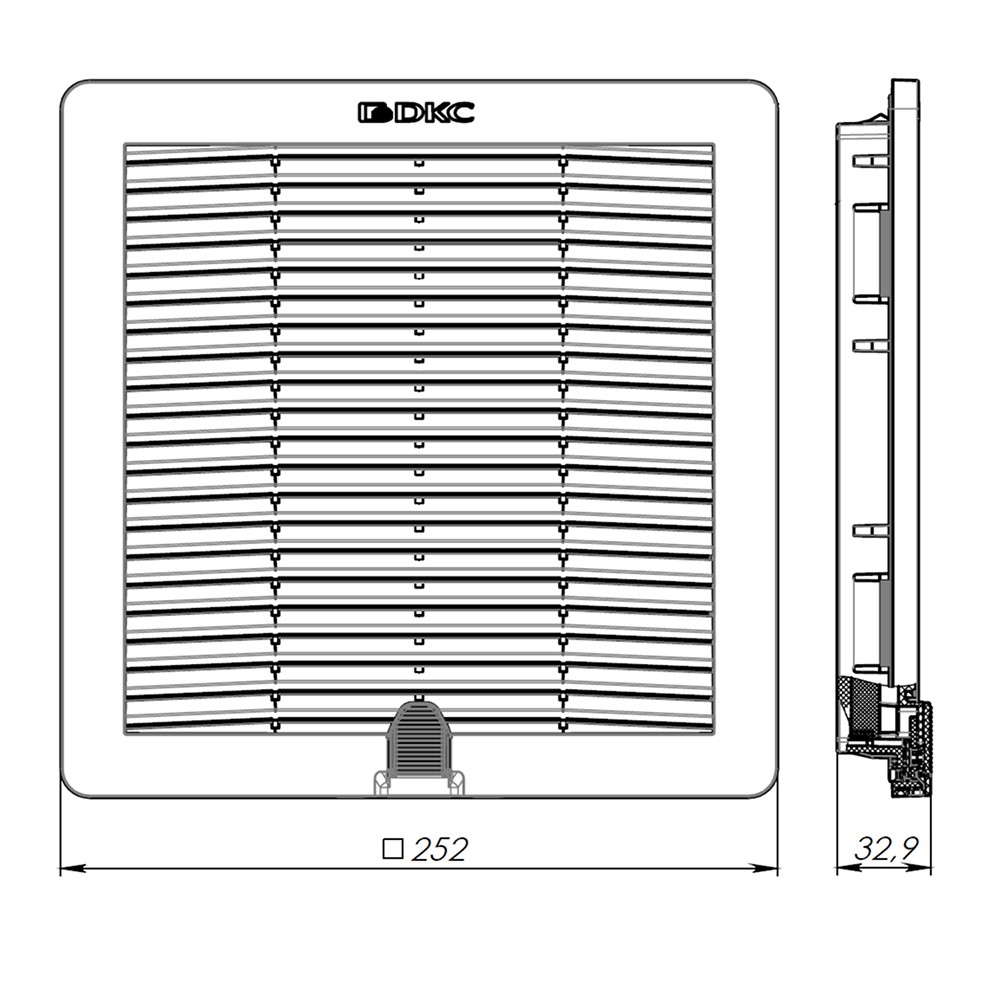

Drawings
