| Width, mm | 252 |
| Height, mm | 252 |
| Depth, mm | 124 |
| Suitable for 19 inch rack mounting | No |
| EMC-version | No |
| Degree of protection (IP) | IP54 |
| Rated power, W | 39 |
| Roof ventilator | No |
| Built as slide-in ventilator | Yes |
| Volume flow, freeblowing, m³/h | 160 |
| Air circulator | No |
| Wall build in | Yes |
| Operating voltage at AC 50 Hz, V | 230...230 |
| Operating voltage at AC 60 Hz, V | 230...230 |
| Voltage type | AC |
| Mounting method | Snap mounting |
| Number of fans | 1 |
| With filter | Yes |
| RAL-number | 7035 |
| With protective cover | Yes |
| Noise emission, dB(A) | 52 |
| Colour | Grey |

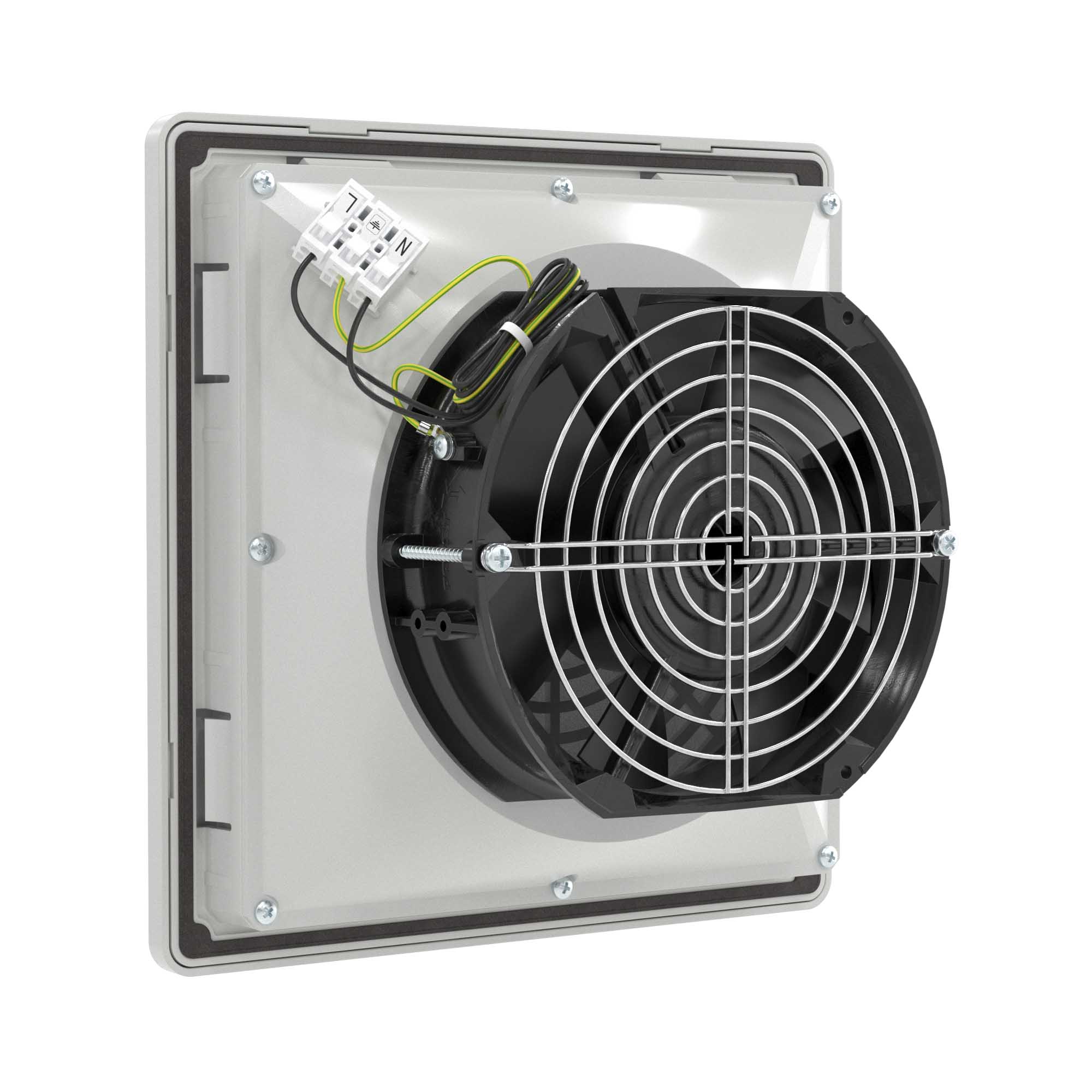

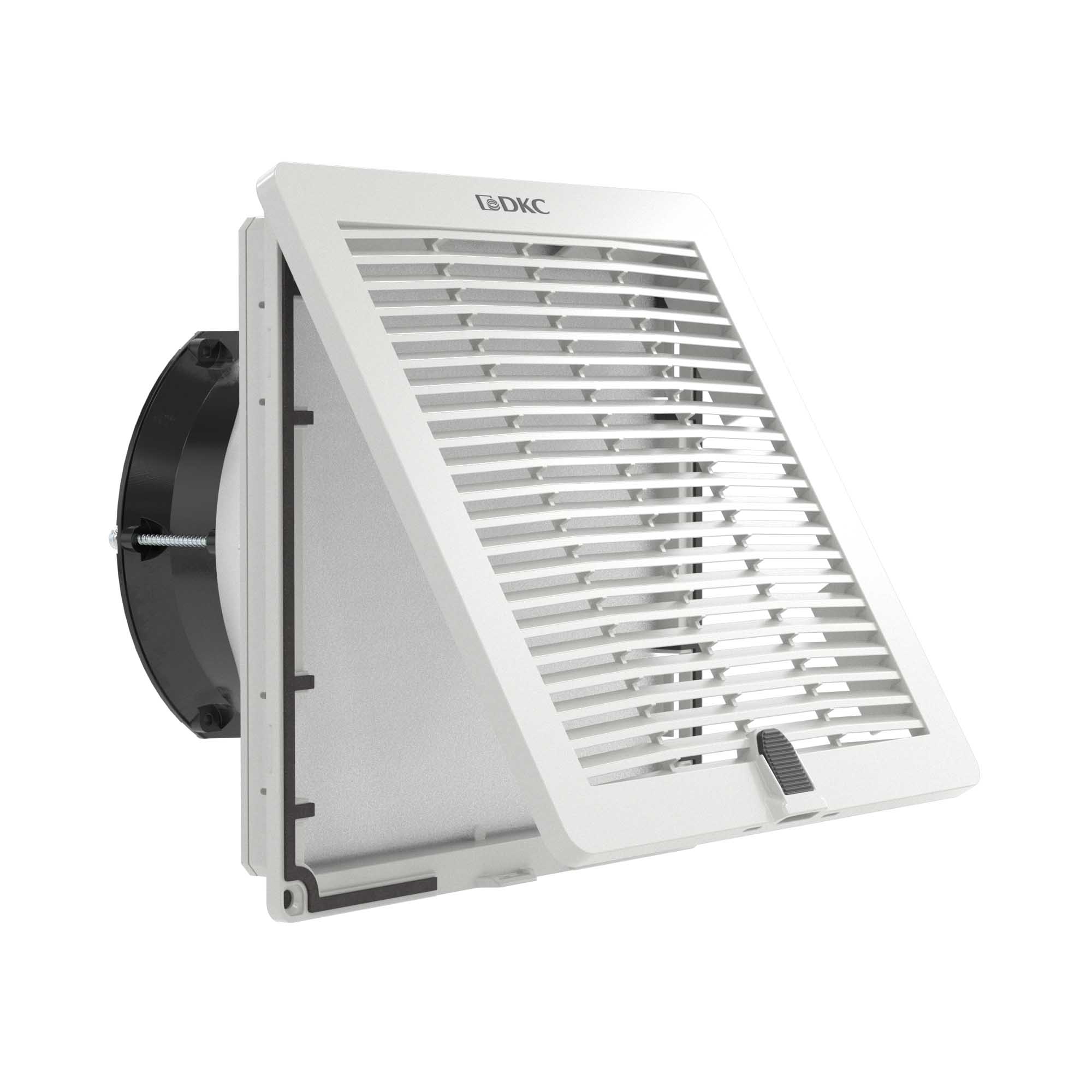

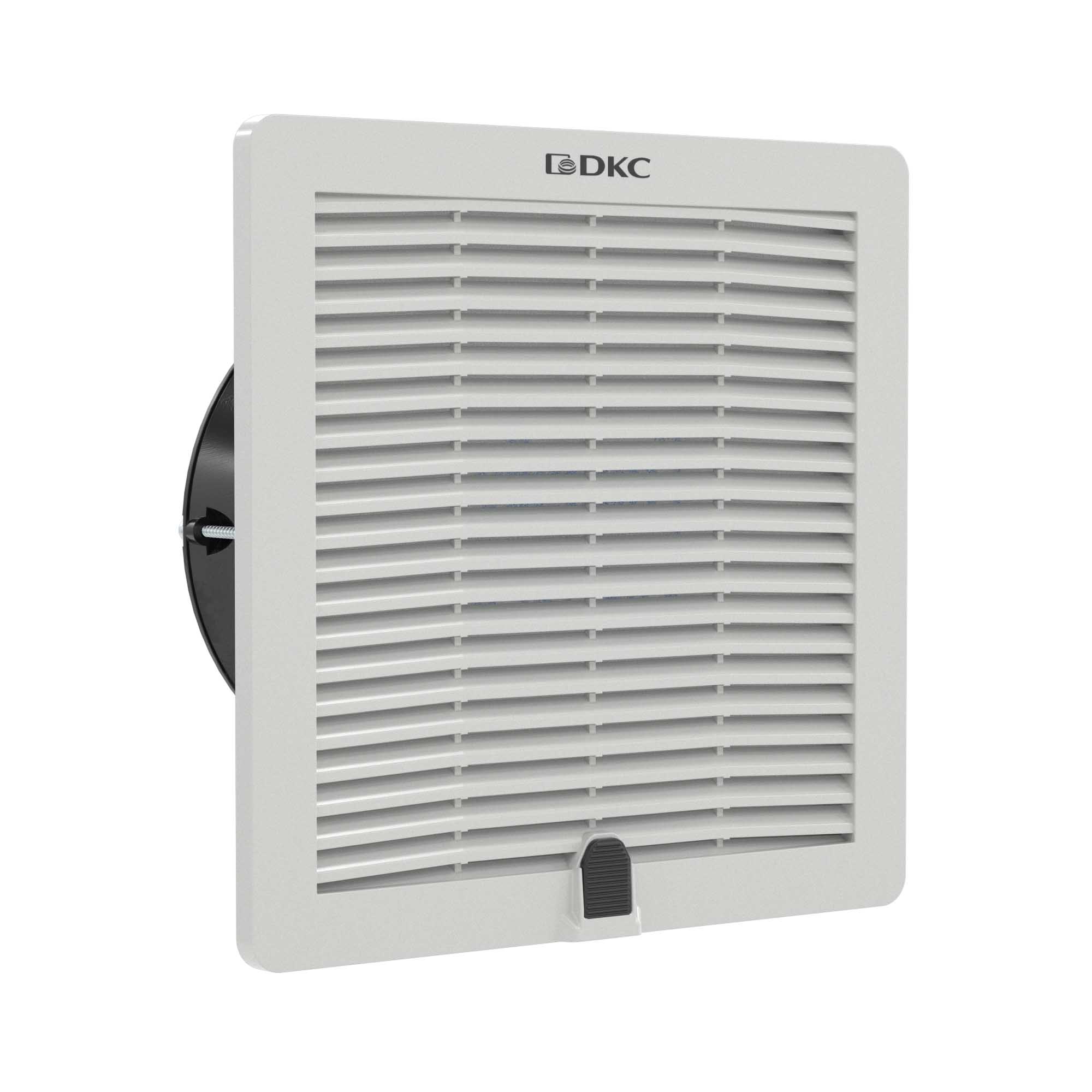

| Product type | Fan |
| Mounting type | Wall-mounted |
| Rated operating voltage V, ~, Hz | 230 V, 1 p, 50/60 Hz |
| Size | Size 15, 252 x 252 |
| EMC-version | No |
| Code of ventilation grille | R5RF15 |
| External dimensions (W x H x D), mm | 252 x 252 x 124 |
| Maximum installation depth, mm | 109.8 |
| Required mounting cut-out (W x H), mm | 224 x 224 |
| Degree of protection | IP54 |
| Optionally degree of protection | IP55, IP56 |
| Material | ABS plastic, PC, UL94V0 |
| Operating temperature range, ˚C | -10…+55 |
| Storage temperature range, ˚C | -40…+70 |
| Noise level, dB(A) | 52 |
| Rated current, A | 0.28 |
| Rated power consumption, W | 39 |
| Maximum static pressure, Pa | 120 |
| Service life (MTBF), h | 50000 |

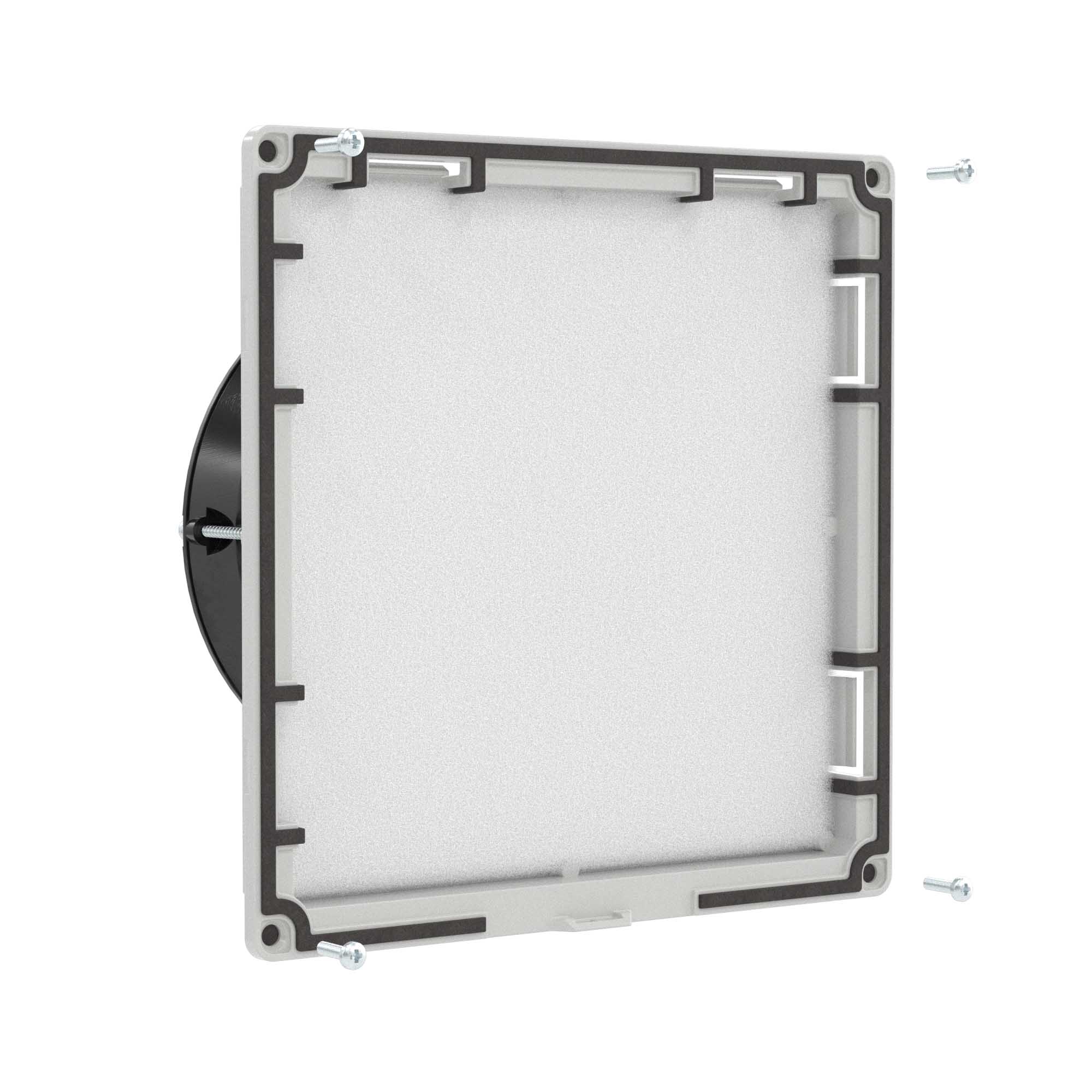

| Filter class | G3 |
| Color | RAL 7035, light grey |
| Weight, kg | 1.5 |
| Unimpeded air flow, m3/h | 160 |
