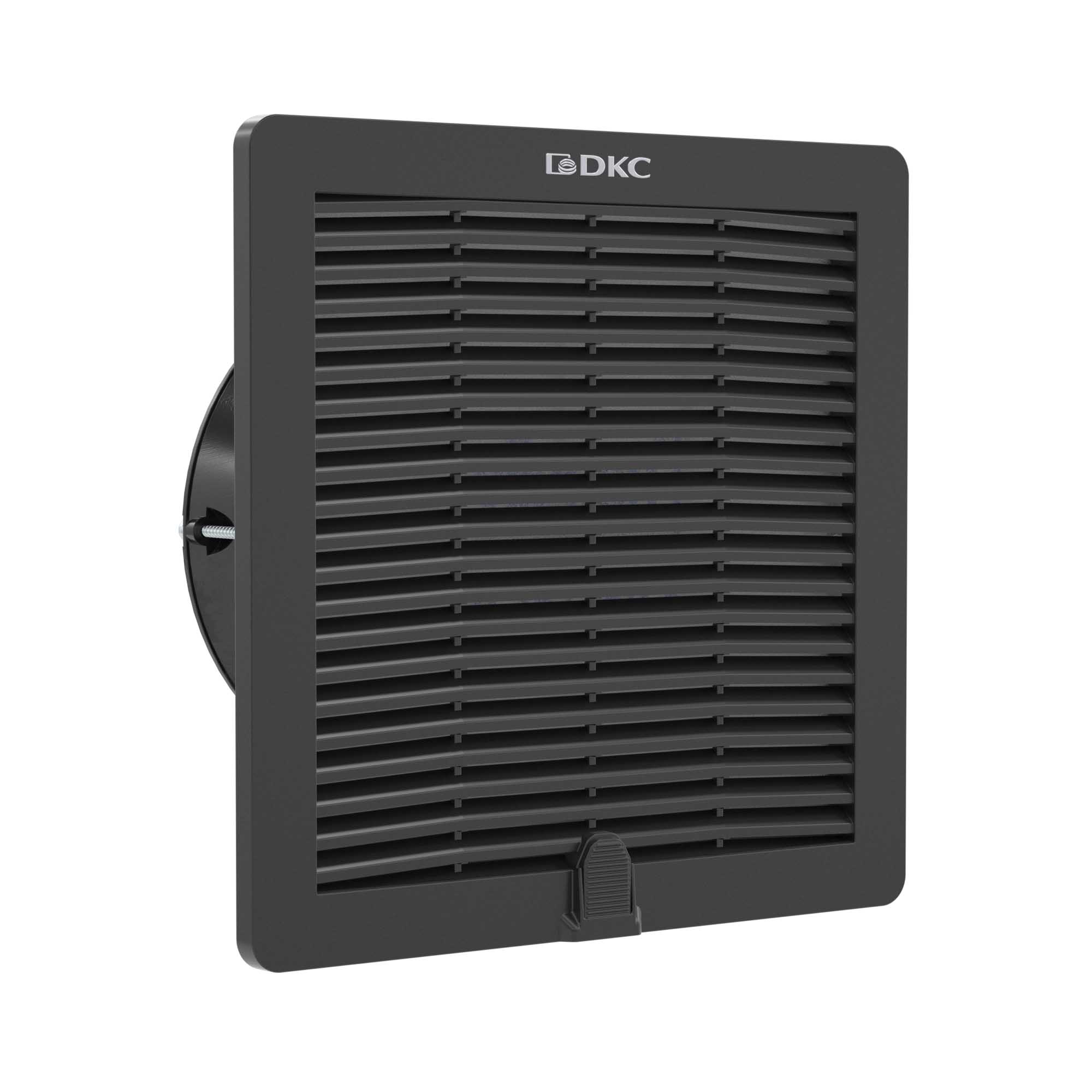

Fan with filter RV 160/190 m3/h, 115 V, 252x252 mm, IP54, RAL9005

Code: R5RV15115B
Fan with filter RV 160/190 m3/h, 115 V, 252x252 mm, IP54, RAL9005
  • To ask a question
829
Mounting method Snap mounting
Colour Black
Width, mm 252
Height, mm 252
Depth, mm 124
RAL-number 7035
Voltage type AC
Suitable for 19 inch rack mounting Yes
Number of fans 1
EMC-version Yes
Degree of protection (IP) IP54
With protective cover Yes
With filter Yes
Rated power, W 39
Roof ventilator Yes
Built as slide-in ventilator Yes
Volume flow, freeblowing, m³/h 160
Air circulator Yes
Wall build in Yes
Noise emission, dB(A) 52
Product type Fan
Mounting type Wall-mounted
Rated operating voltage V, ~, Hz 115 V, 1 p, 50/60 Hz
Unimpeded air flow, m3/h 160
Size Size 15, 252 x 252
EMC-version No
Code of ventilation grille R5RF15B
External dimensions (W x H x D), mm 252 x 252 x 124
Maximum installation depth, mm 109.8
Required mounting cut-out (W x H), mm 224 x 224
Degree of protection IP54
Optionally degree of protection IP55, IP56
Material ABS plastic, PC, UL94V0
Operating temperature range, ˚C -10…+55
Storage temperature range, ˚C -40…+70
Noise level, dB(A) 52
Rated current, A 0.59
Rated power consumption, W 39
Maximum static pressure, Pa 115
Service life (MTBF), h 50000
Filter class G3
Color RAL 9005, black
Weight, kg 1.5
Accessories
Analogs

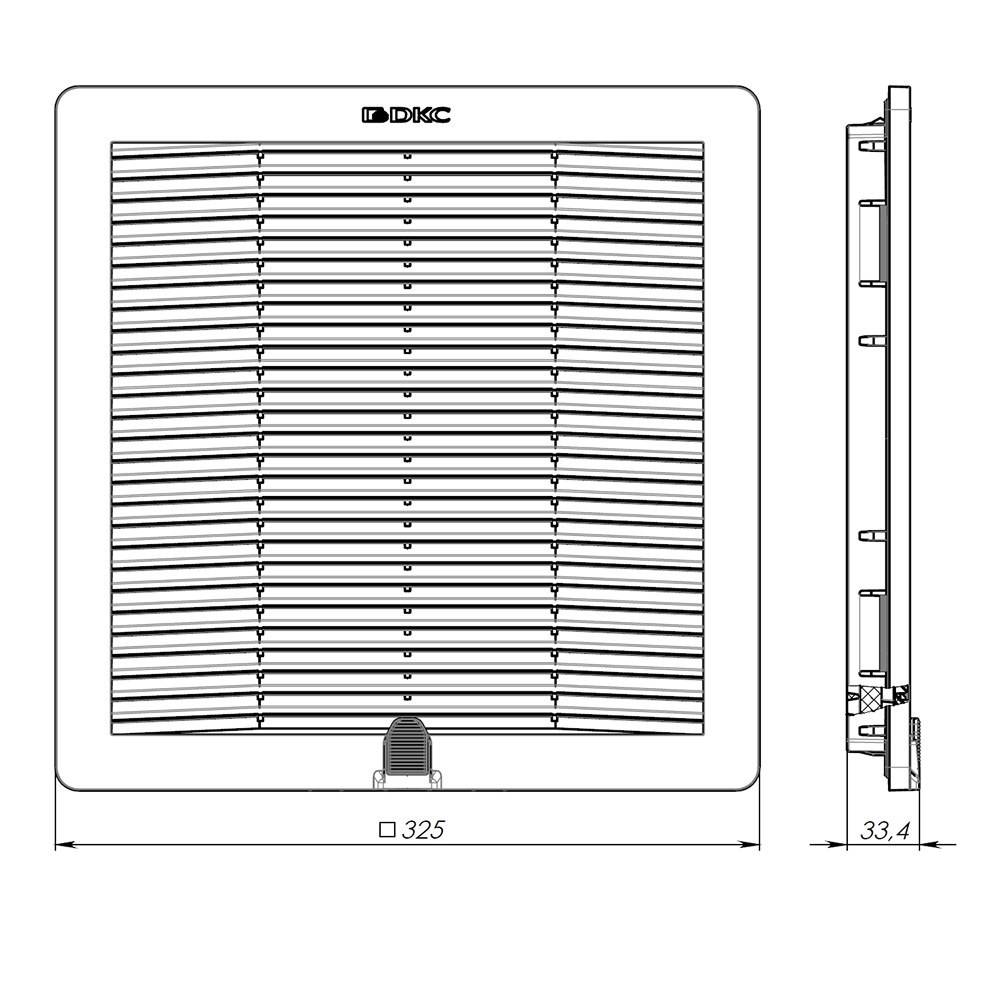

Drawings
Seria Name DWG (dynamic.) Eplan
