Fan with filter RV 100/105 m3/h, 115 V, 205x205 mm, IP54

Code: R5RV13115
Fan with filter RV 100/105 m3/h, 115 V, 205x205 mm, IP54
  • To ask a question
838
Mounting method Snap mounting
Width, mm 205
Height, mm 205
Suitable for 19 inch rack mounting Нет
Number of fans 1
Degree of protection (IP) IP54
With filter Да
Rated power, W 22
Roof ventilator Нет
Volume flow, freeblowing, m³/h 100
Wall build in Да
Operating voltage at AC 50 Hz, V 115
Operating voltage at AC 60 Hz, V 115
Voltage type AC
RAL-number 7035
With protective cover ДА
Noise emission, dB(A) 45
Depth, mm 110
EMC-version Нет
Built as slide-in ventilator Нет
Air circulator Нет
Colour Grey
Product type Fan
Mounting type Wall-mounted
Rated operating voltage V, ~, Hz 115 V, 1 p, 50/60 Hz
Size Size 13, 205 x 205
EMC-version No
Code of ventilation grille R5RF13
External dimensions (W x H x D), mm 205 x 205 x 110
Maximum installation depth, mm 96.5
Required mounting cut-out (W x H), mm 177,5 x 177,5
Degree of protection IP54
Optionally degree of protection IP55, IP56
Material ABS plastic, PC, UL94V0
Operating temperature range, ˚C -10…+55
Storage temperature range, ˚C -40…+70
Noise level, dB(A) 45
Rated current, A 0.26
Rated power consumption, W 22
Maximum static pressure, Pa 85
Service life (MTBF), h 50000
Filter class G3
Color RAL 7035, light grey
Weight, kg 1.2
Unimpeded air flow, m3/h 100
Accessories
Analogs

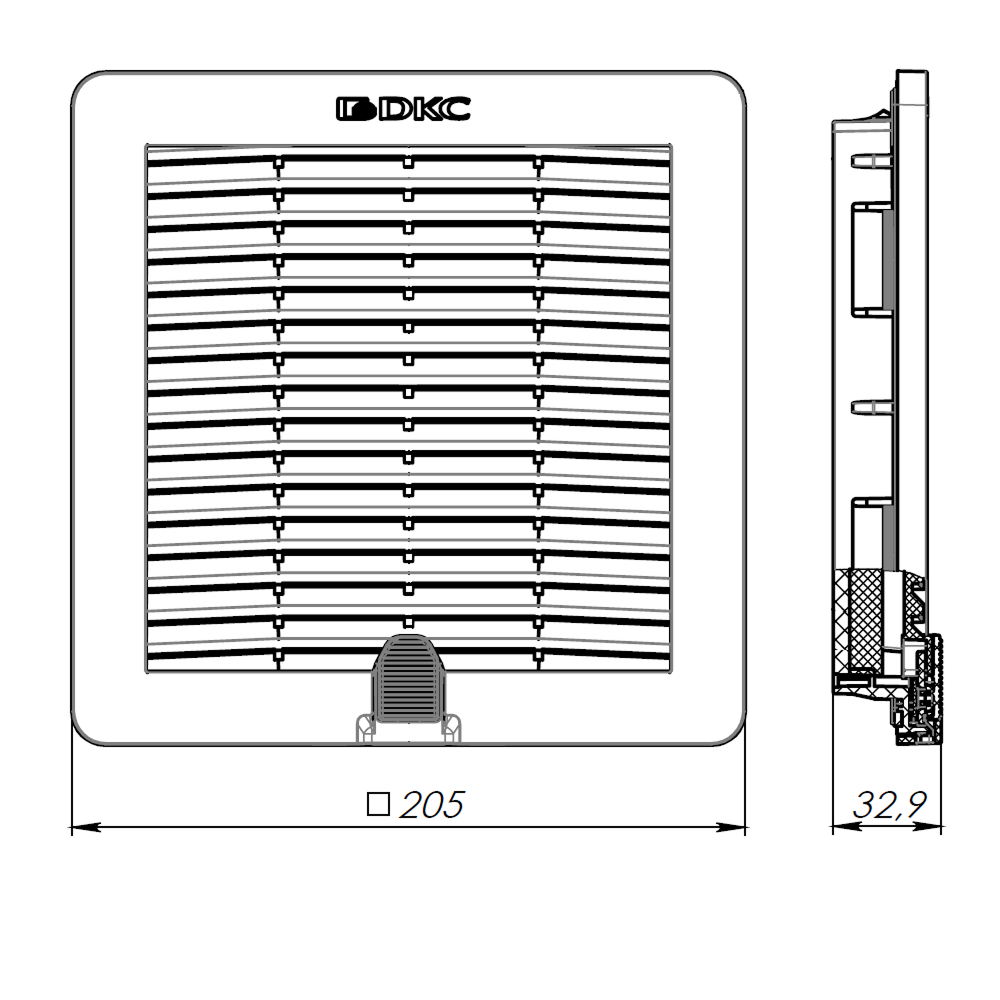

Drawings
Seria Name DWG (dynamic.) Eplan
