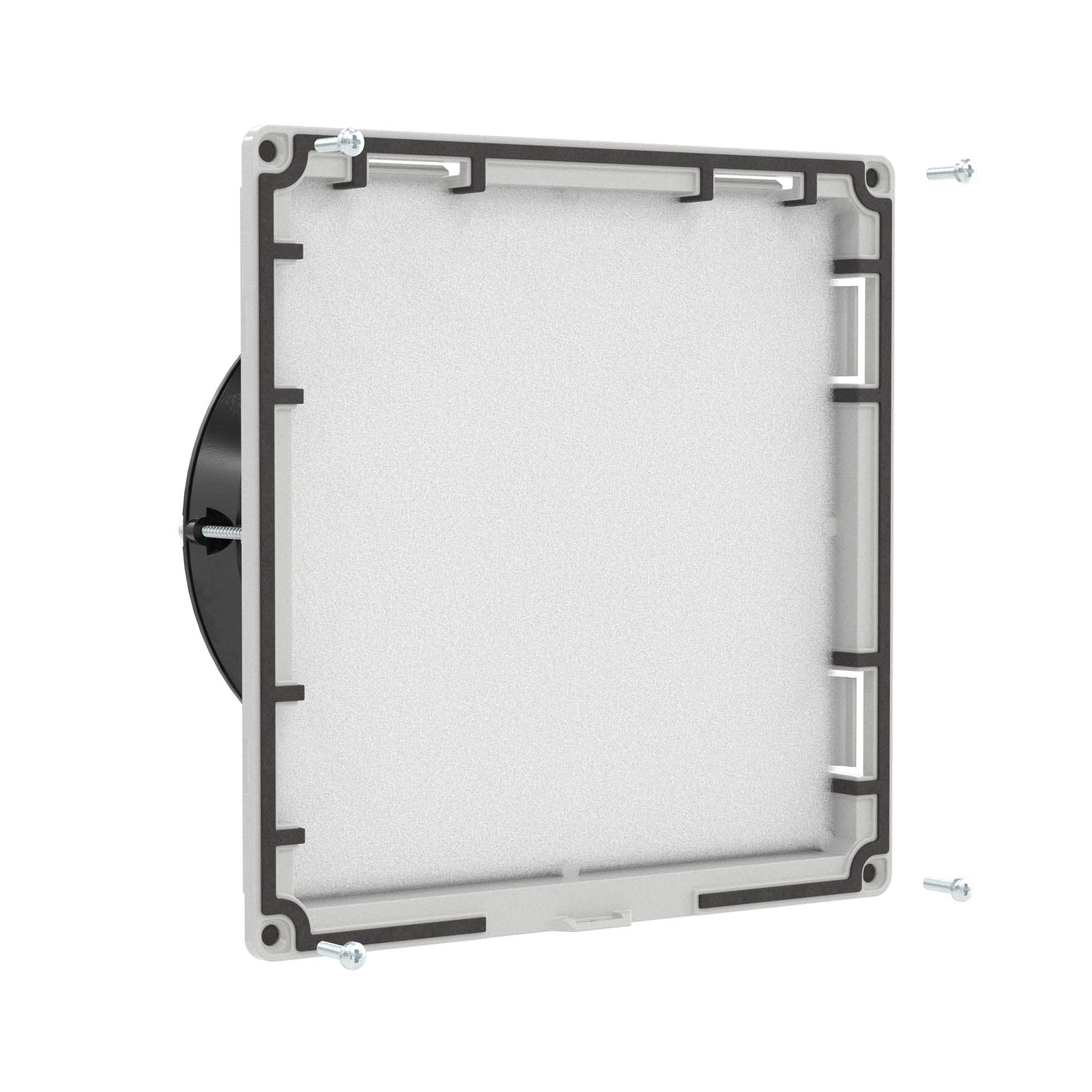

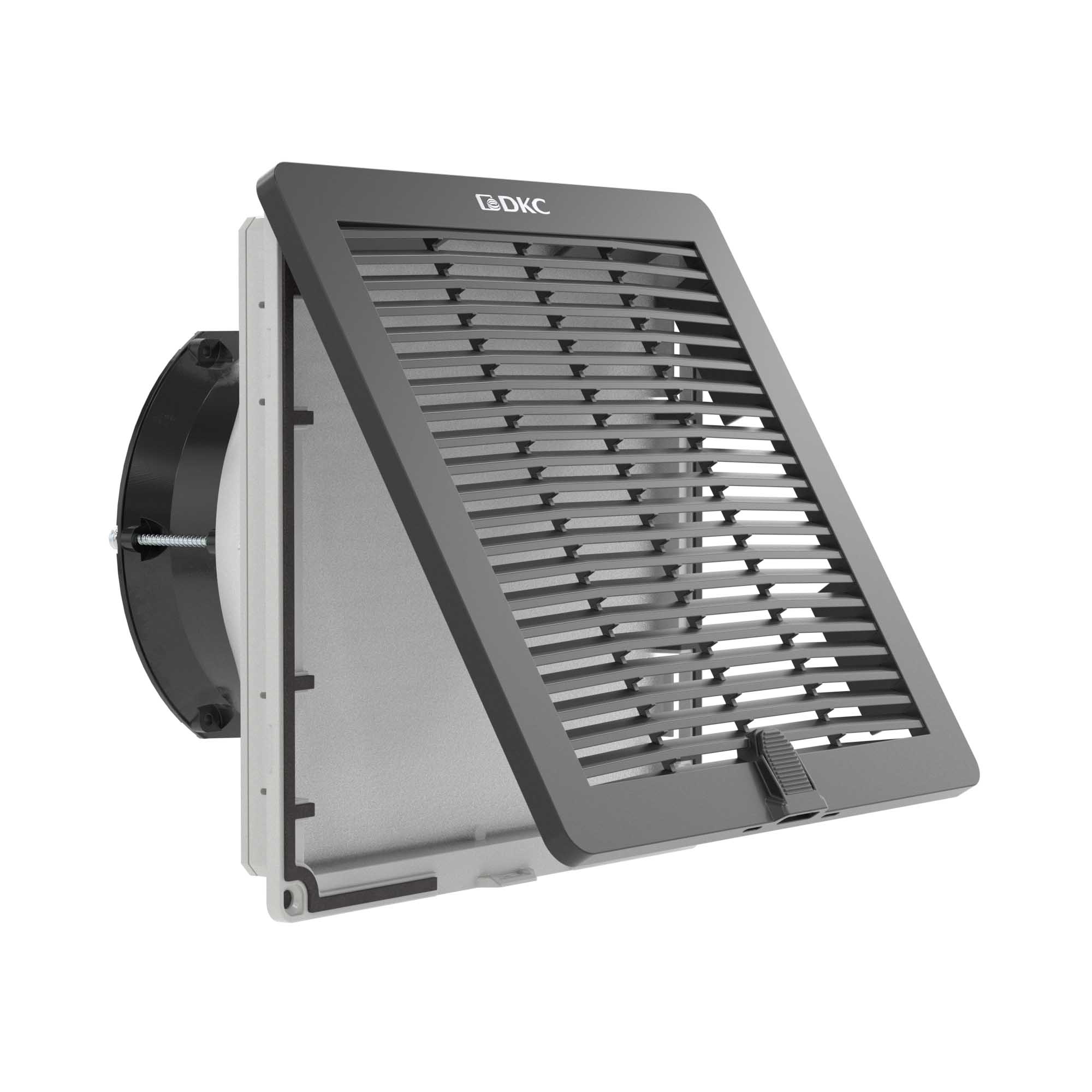

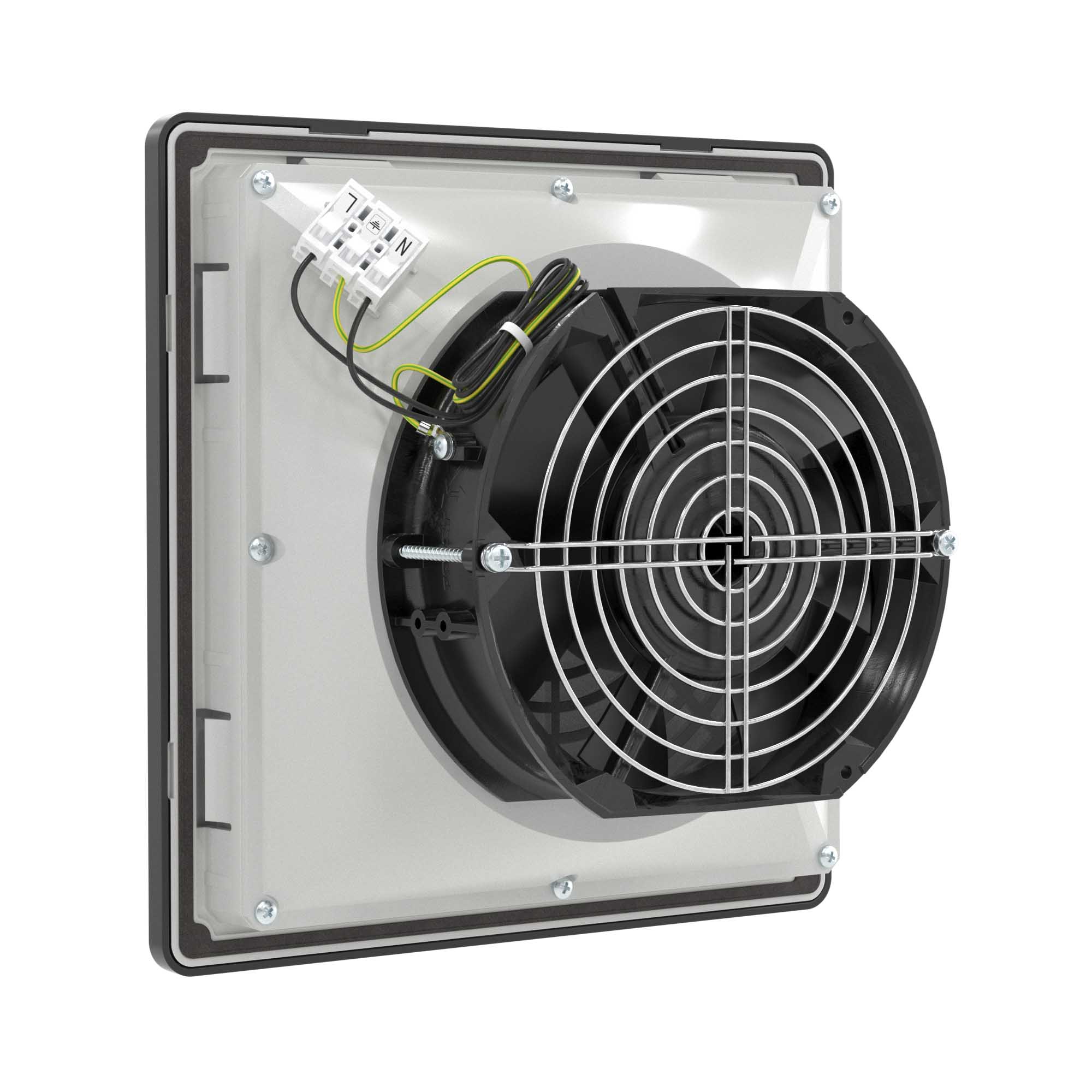

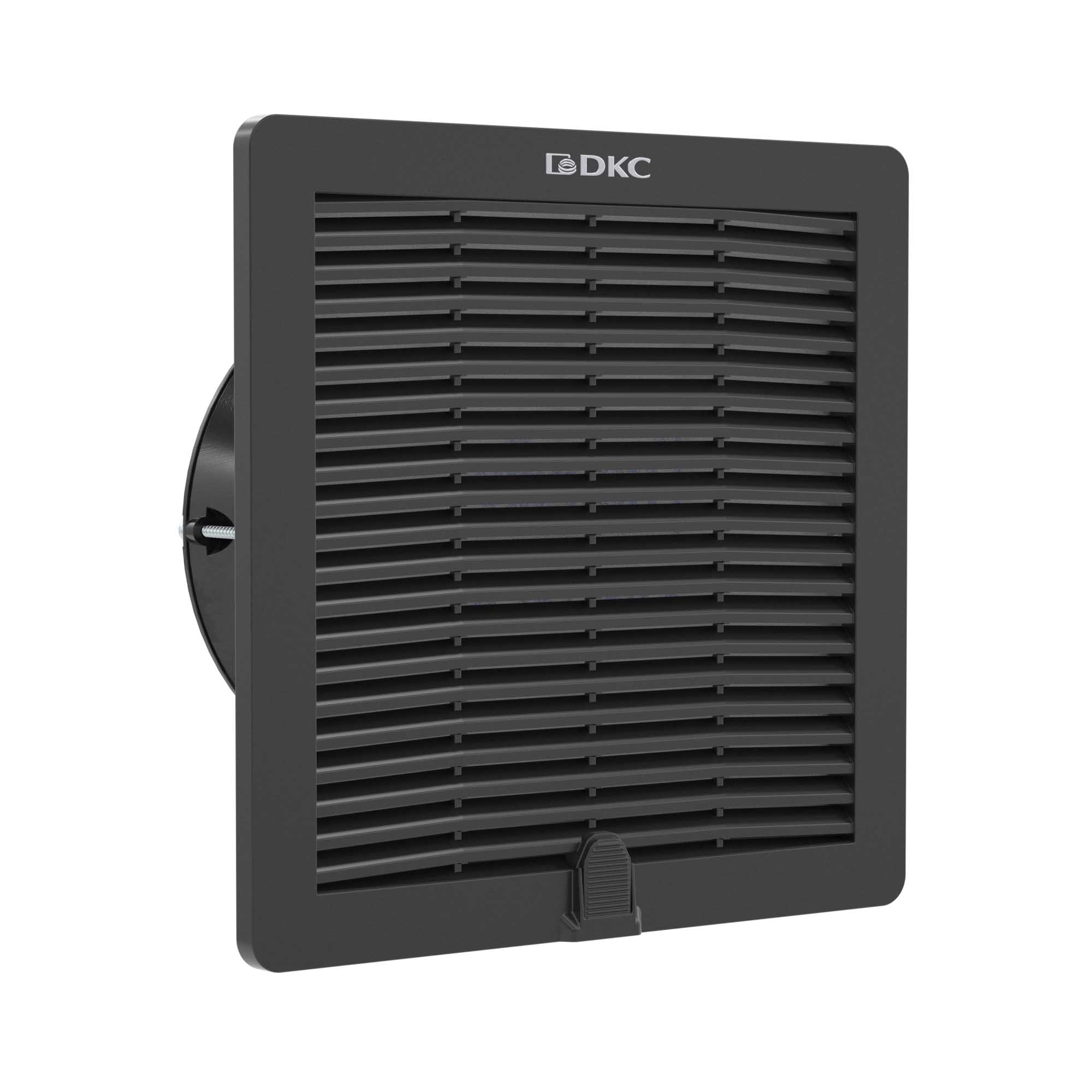

Fan with filter RV 140 m3/h, 24 V DC, 205x205 mm, IP54, RAL9005
Code: R5RV13024B
Fan with filter RV 140 m3/h, 24 V DC, 205x205 mm, IP54, RAL9005
Code: R5RV13024B
Mounting method | Snap mounting |
Colour | Black |
Width, mm | 205 |
Height, mm | 205 |
Depth, mm | 110 |
RAL-number | 7035 |
Voltage type | DC |
Suitable for 19 inch rack mounting | Yes |
Number of fans | 1 |
EMC-version | Yes |
Degree of protection (IP) | IP54 |
With protective cover | Yes |
With filter | Yes |
Rated power, W | 9.2 |
Roof ventilator | Yes |
Built as slide-in ventilator | Yes |
Volume flow, freeblowing, m³/h | 140 |
Air circulator | Yes |
Wall build in | Yes |
Noise emission, dB(A) | 48 |
Product type | Fan |
Mounting type | Wall-mounted |
Rated operating voltage V, ~, Hz | 24 V, DC |
Unimpeded air flow, m3/h | 140 |
Size | Size 13, 205 x 205 |
EMC-version | No |
Code of ventilation grille | R5RF13B |
External dimensions (W x H x D), mm | 205 x 205 x 110 |
Maximum installation depth, mm | 96.5 |
Required mounting cut-out (W x H), mm | 177,5 x 177,5 |
Degree of protection | IP54 |
Optionally degree of protection | IP55, IP56 |
Material | ABS plastic, PC, UL94V0 |
Operating temperature range, ˚C | -10…+55 |
Storage temperature range, ˚C | -40…+70 |
Noise level, dB(A) | 48 |
Rated current, A | 0.38 |
Rated power consumption, W | 9.2 |
Maximum static pressure, Pa | 80 |
Service life (MTBF), h | 50000 |
Filter class | G3 |
Color | RAL 9005, black |
Weight, kg | 1.2 |
