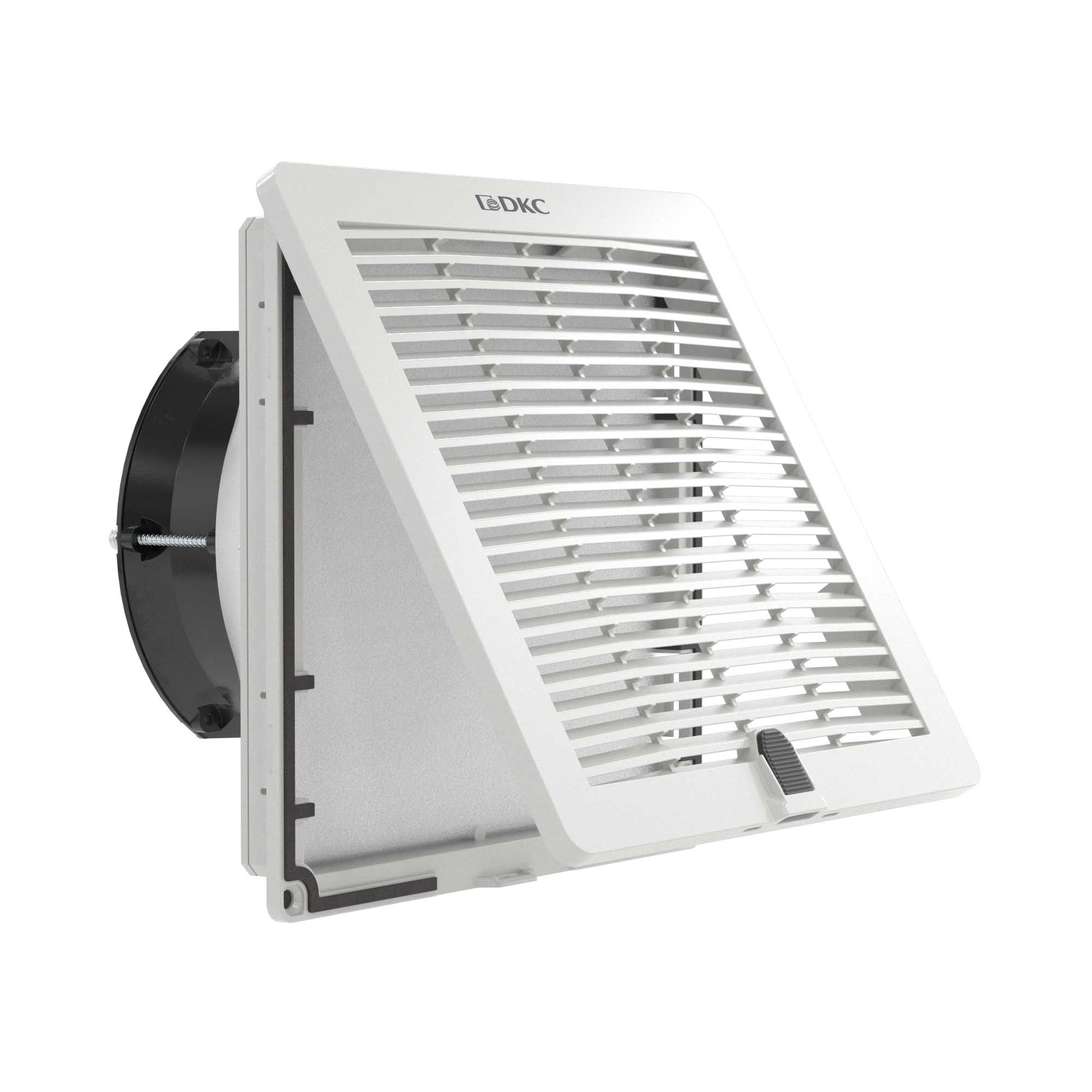

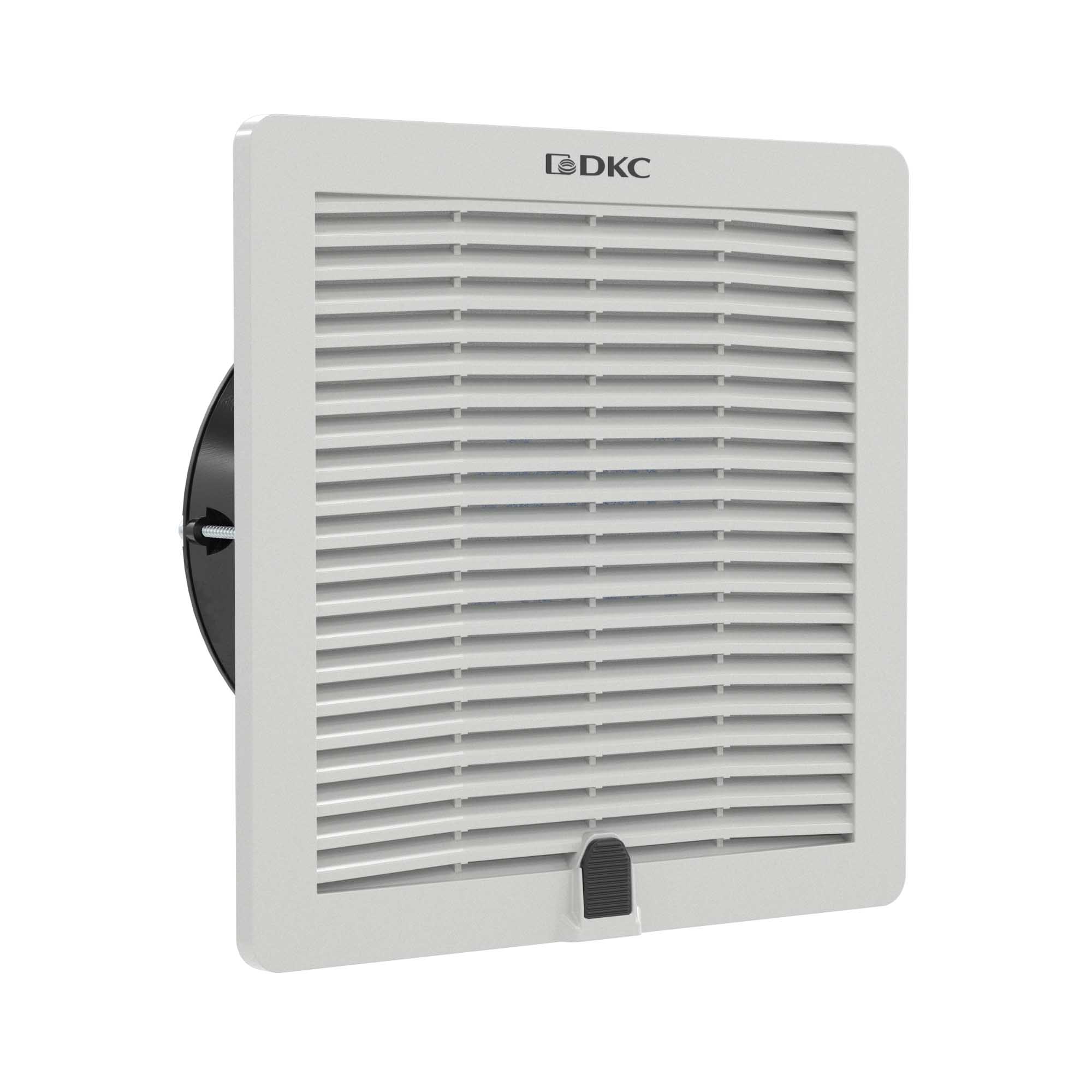

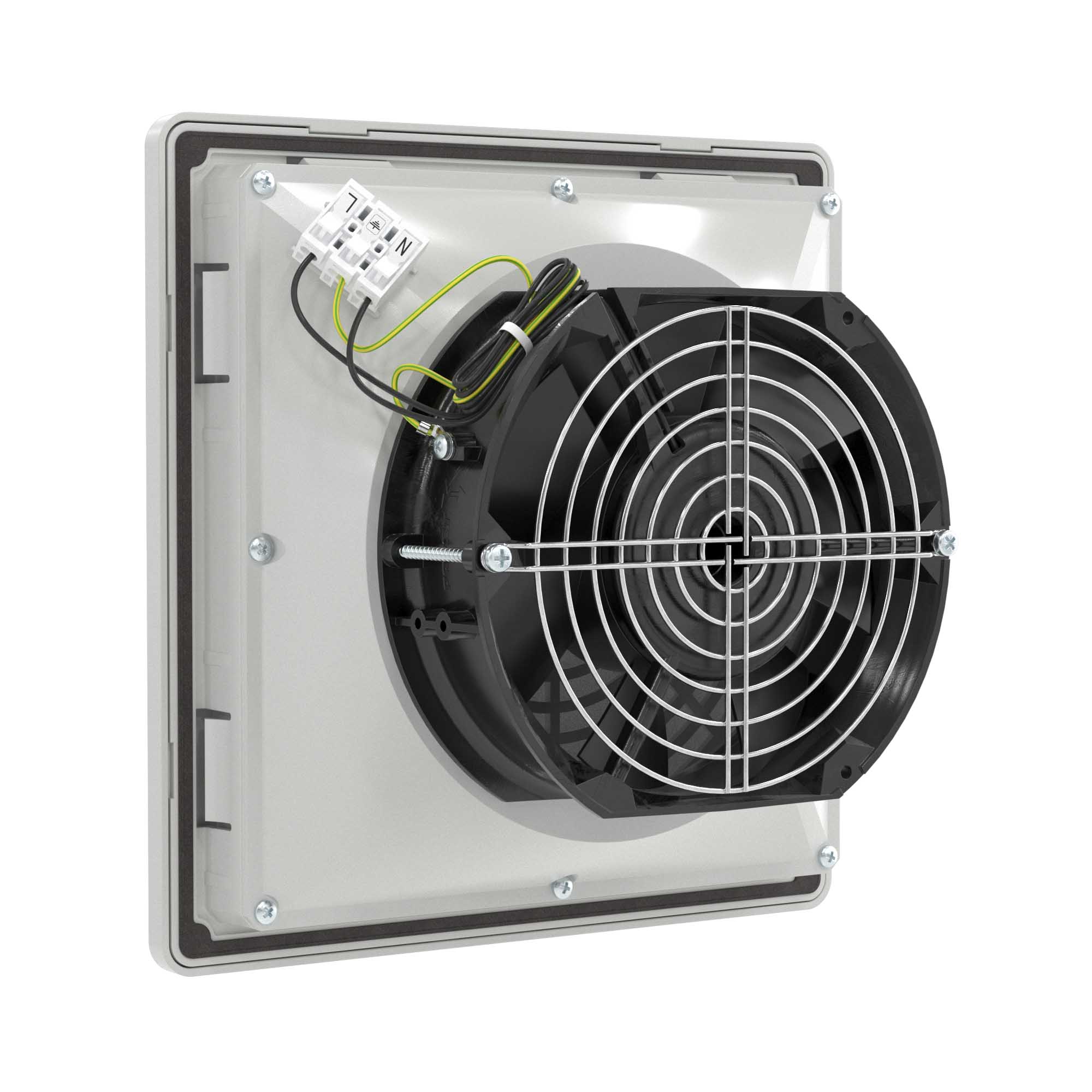

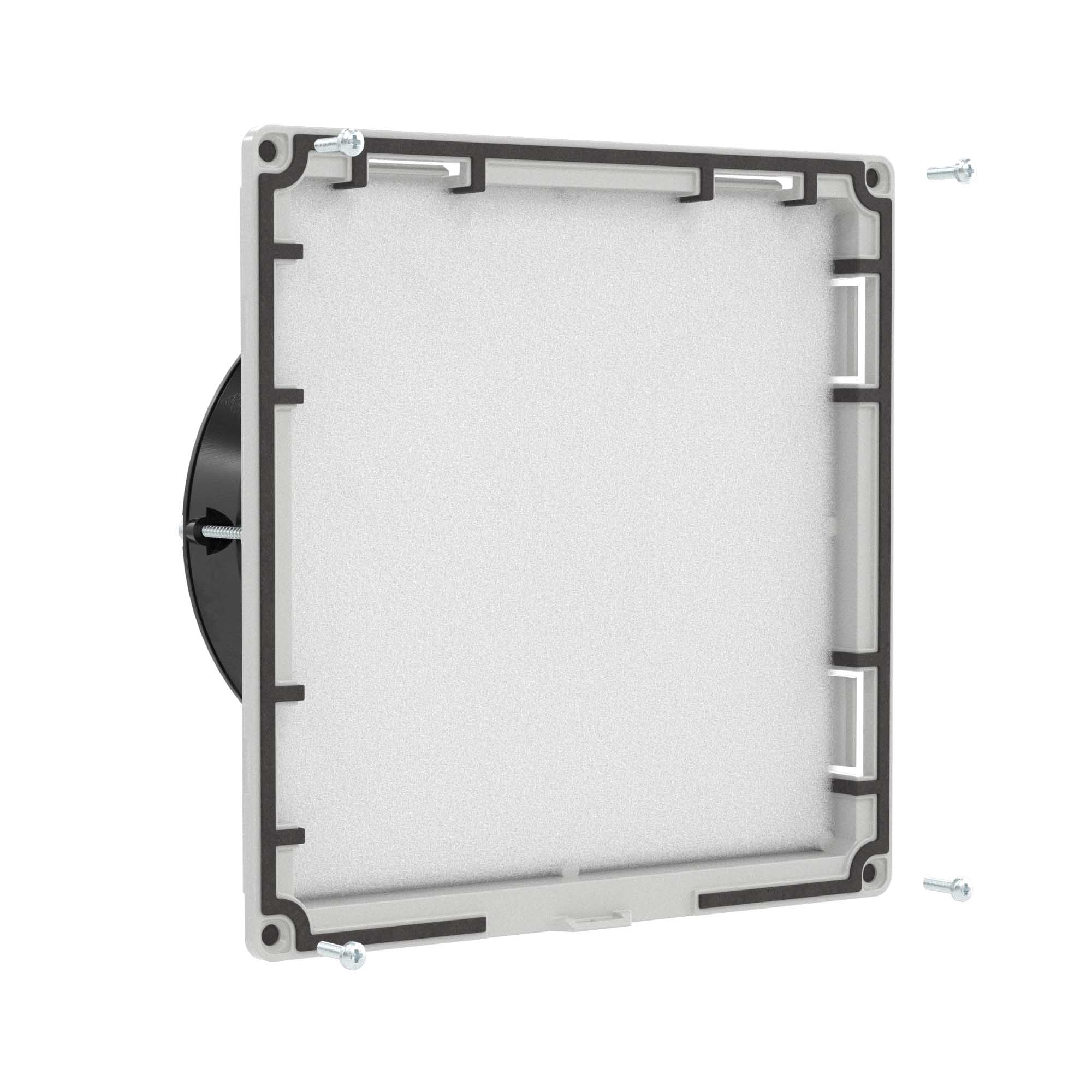

Fan with filter RV 140 m3/h, 24 V DC, 205x205 mm, IP54

Code: R5RV13024
Fan with filter RV 140 m3/h, 24 V DC, 205x205 mm, IP54
  • To ask a question
829
Mounting method Snap mounting
Width, mm 205
Height, mm 205
Suitable for 19 inch rack mounting No
Number of fans 1
Degree of protection (IP) IP54
With filter Yes
Rated power, W 9.2
Roof ventilator No
Volume flow, freeblowing, m³/h 140
Wall build in Yes
Voltage type DC
RAL-number 7035
With protective cover Yes
Noise emission, dB(A) 48
Depth, mm 110
EMC-version No
Built as slide-in ventilator No
Air circulator No
Operating voltage at DC, V 24
Colour Grey
Product type Fan
Mounting type Wall-mounted
Rated operating voltage V, ~, Hz 24 V, DC
Size Size 13, 205 x 205
EMC-version No
Code of ventilation grille R5RF13
External dimensions (W x H x D), mm 205 x 205 x 110
Maximum installation depth, mm 96.5
Required mounting cut-out (W x H), mm 177,5 x 177,5
Degree of protection IP54
Optionally degree of protection IP55, IP56
Material ABS plastic, PC, UL94V0
Operating temperature range, ˚C -10…+55
Storage temperature range, ˚C -40…+70
Noise level, dB(A) 48
Rated current, A 0.38
Rated power consumption, W 9.2
Maximum static pressure, Pa 80
Service life (MTBF), h 50000
Filter class G3
Color RAL 7035, light grey
Weight, kg 1.2
Unimpeded air flow, m3/h 140
Accessories
Analogs

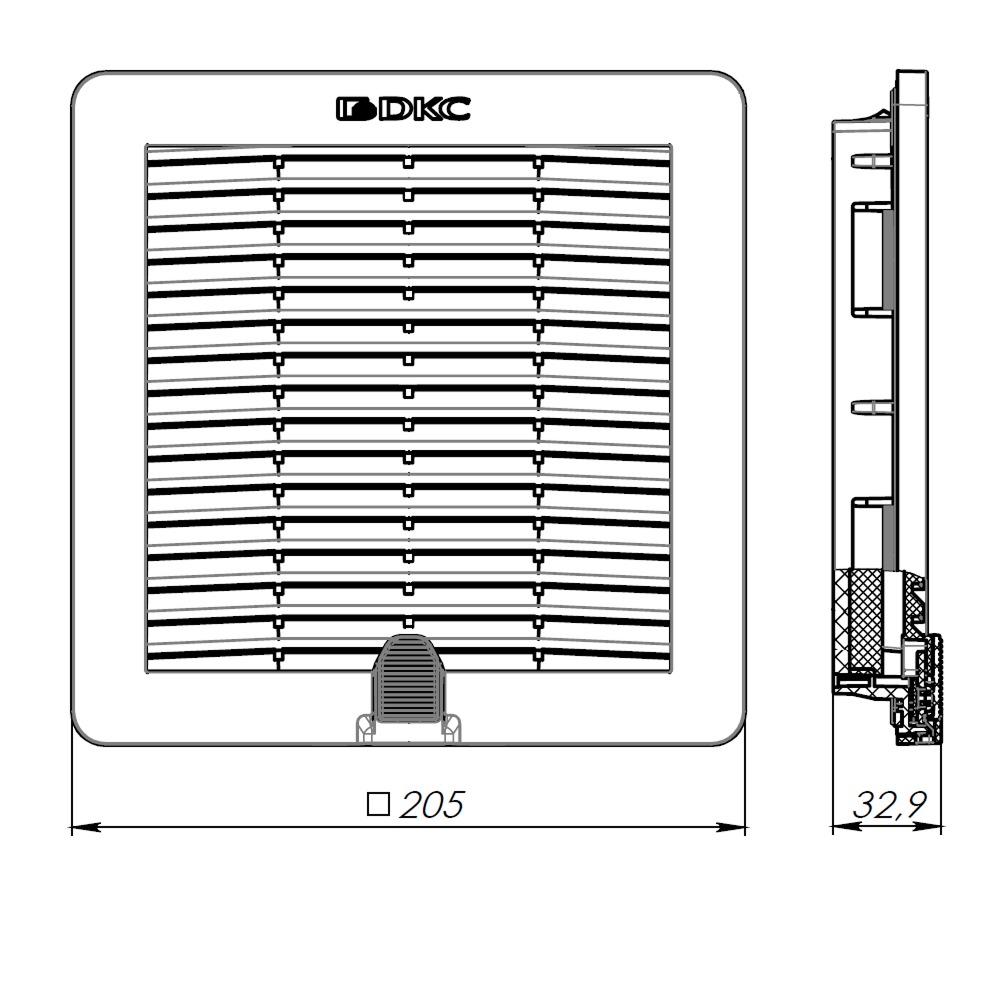

Drawings
Seria Name DWG (dynamic.) Eplan
