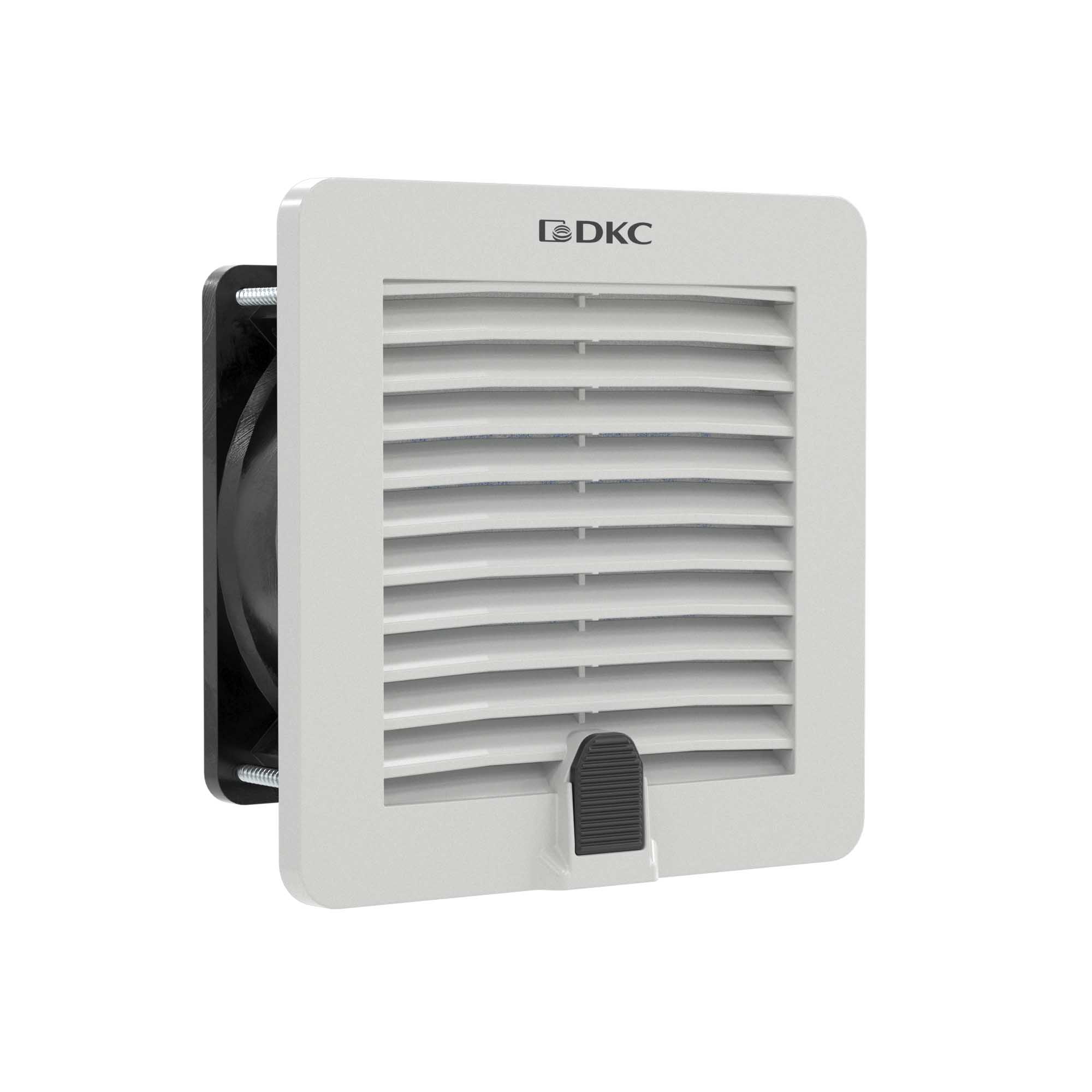

Fan with filter RV 44/46 m3/h, 230 V, 150x150 mm, IP54

Code: R5RV12230
Fan with filter RV 44/46 m3/h, 230 V, 150x150 mm, IP54
  • To ask a question
837
Width, mm 150
Height, mm 150
Depth, mm 76
Suitable for 19 inch rack mounting No
EMC-version No
Degree of protection (IP) IP54
Rated power, W 22
Roof ventilator No
Built as slide-in ventilator No
Volume flow, freeblowing, m³/h 44
Air circulator No
Wall build in Yes
Operating voltage at AC 50 Hz, V 230
Operating voltage at AC 60 Hz, V 230
Voltage type AC
Mounting method Snap mounting
Number of fans 1
With filter Yes
RAL-number 7035
With protective cover Yes
Noise emission, dB(A) 45
Colour Grey
Product type Fan
Mounting type Wall-mounted
Rated operating voltage V, ~, Hz 230 V, 1 p, 50/60 Hz
Size Size 12, 150 x 150
EMC-version No
Code of ventilation grille R5RF12
External dimensions (W x H x D), mm 150 x 150 x 76
Maximum installation depth, mm 62.9
Required mounting cut-out (W x H), mm 124,5 x 124,5
Degree of protection IP54
Optionally degree of protection IP55, IP56
Material ABS plastic, PC, UL94V0
Operating temperature range, ˚C -10…+55
Storage temperature range, ˚C -40…+70
Noise level, dB(A) 45
Rated current, A 0.14
Rated power consumption, W 22
Maximum static pressure, Pa 55
Service life (MTBF), h 50000
Filter class G3
Color RAL 7035, light grey
Weight, kg 0.8
Unimpeded air flow, m3/h 44
Accessories
Analogs

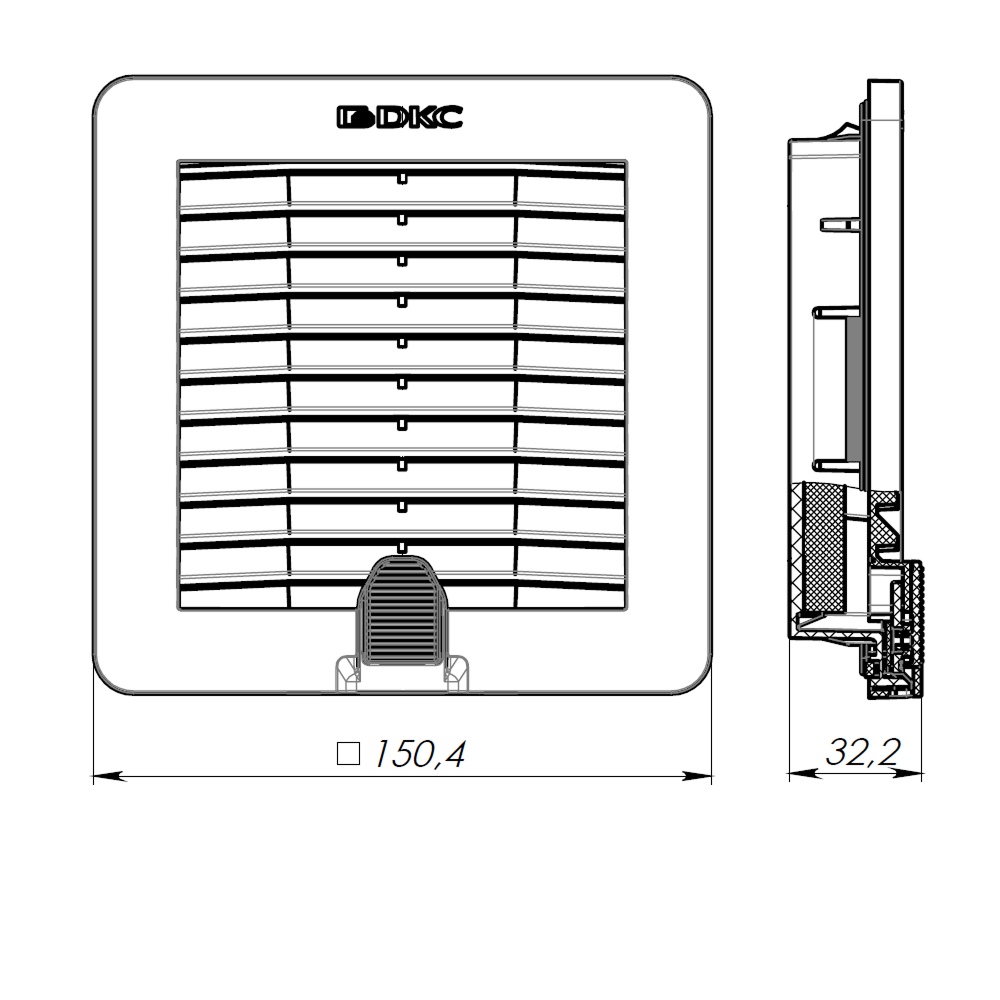

Drawings
Seria Name DWG (dynamic.) Eplan DWG STEP
