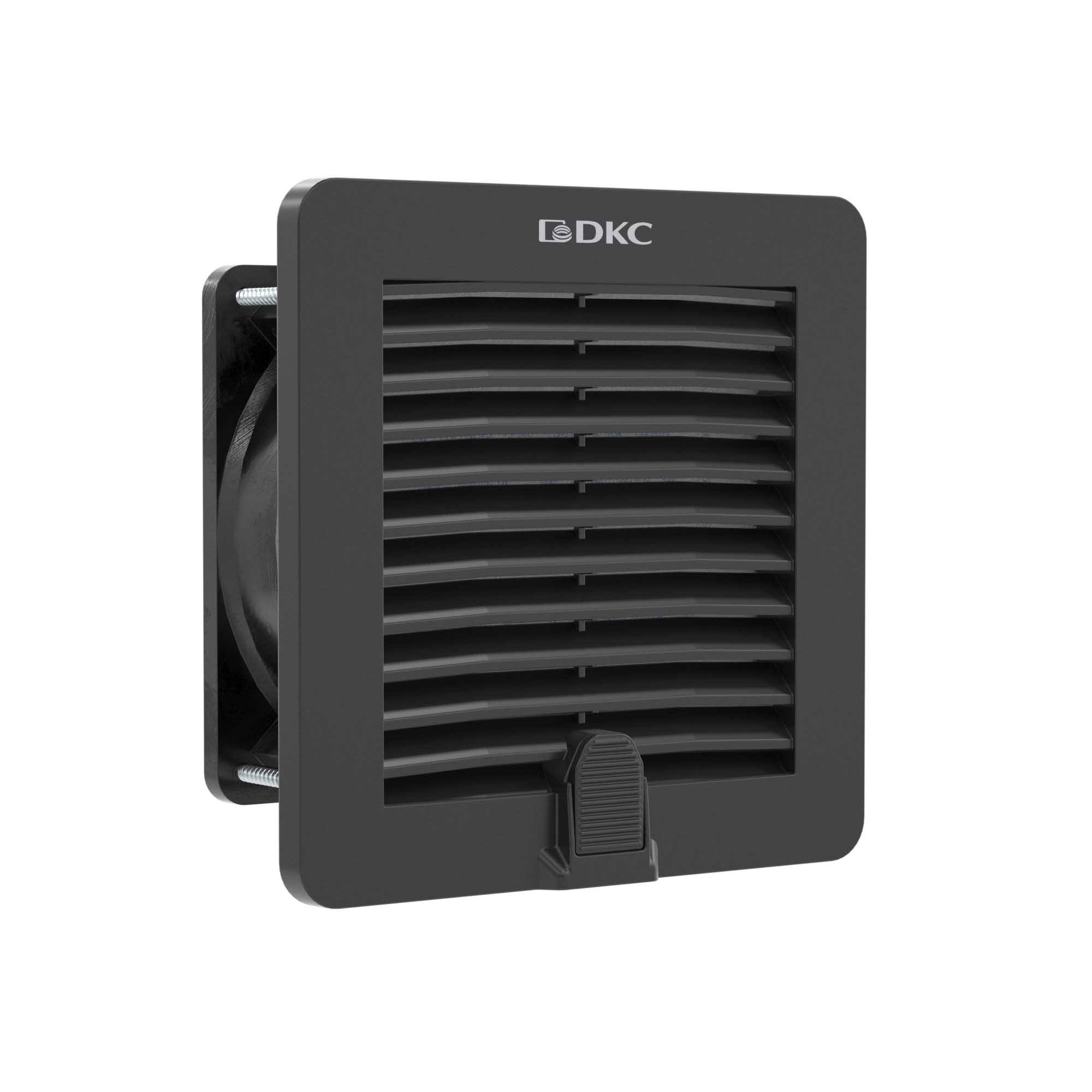

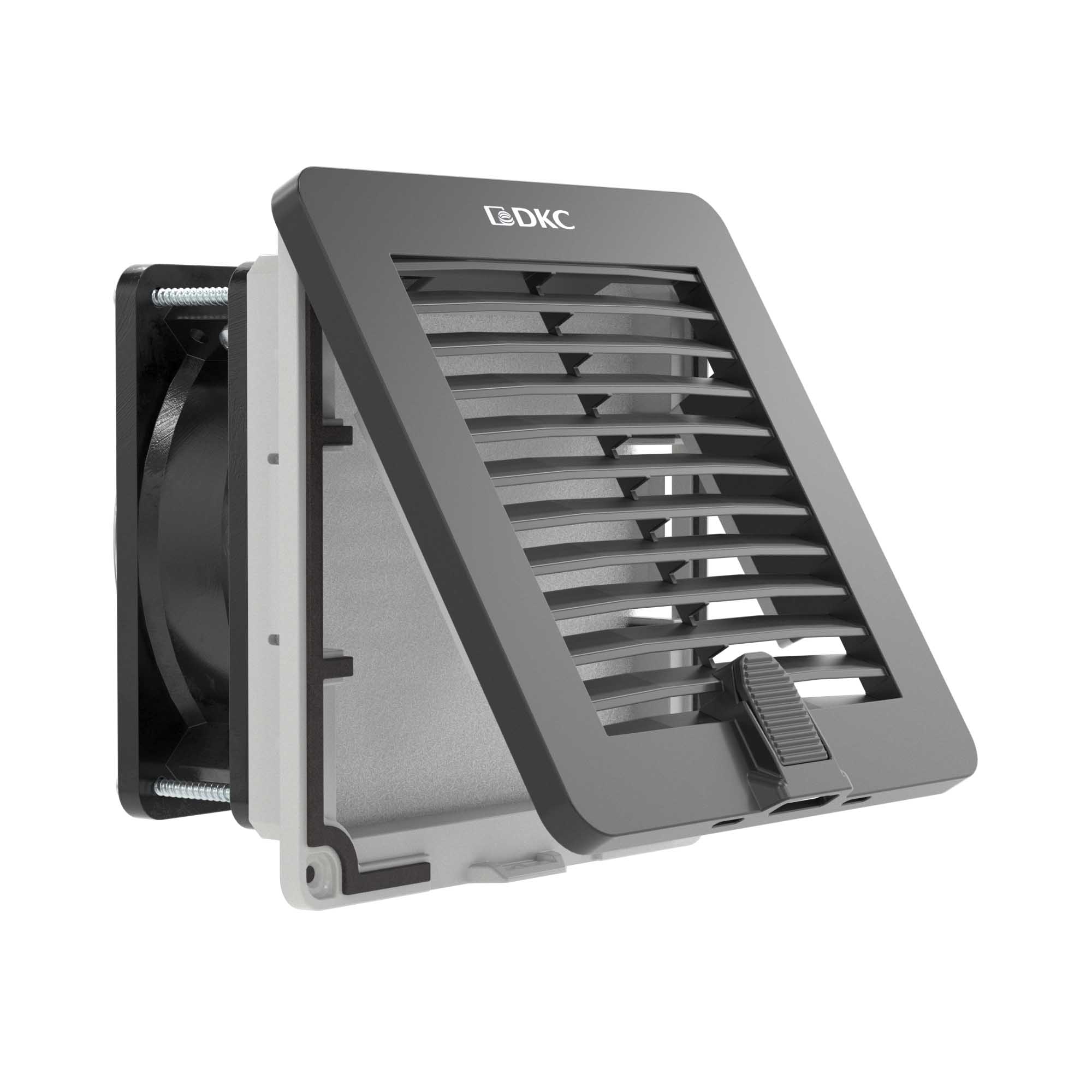

Fan with filter RV 10/12 m3/h, 115 V, 112x112 mm, IP54, RAL9005

Code: R5RV08115B
Fan with filter RV 10/12 m3/h, 115 V, 112x112 mm, IP54, RAL9005
  • To ask a question
824
Mounting method Snap mounting
Colour Black
Width, mm 112
Height, mm 112
Depth, mm 75
RAL-number 7035
Voltage type AC
Suitable for 19 inch rack mounting Yes
Number of fans 1
EMC-version Yes
Degree of protection (IP) IP54
With protective cover Yes

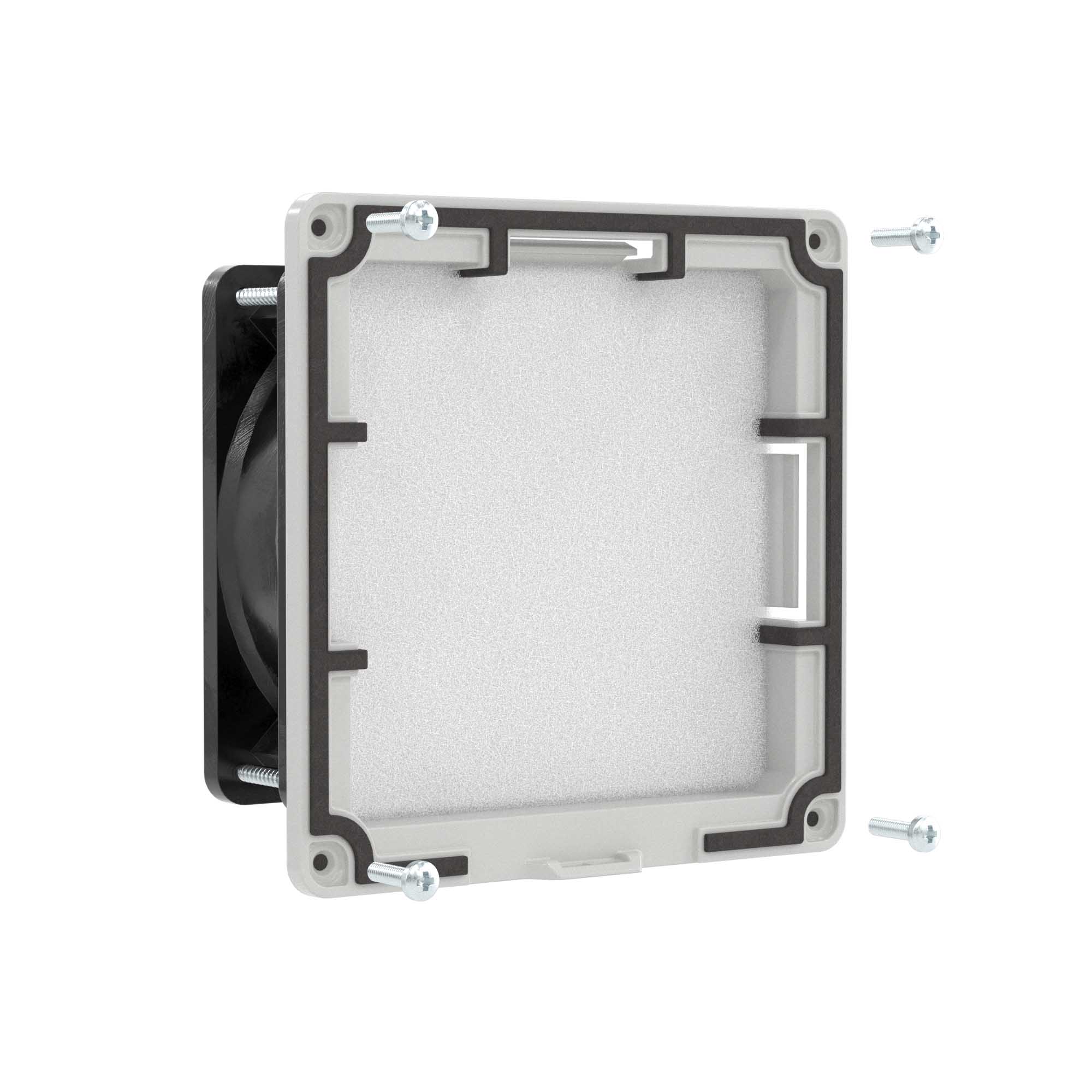

With filter Yes
Rated power, W 14
Roof ventilator Yes
Built as slide-in ventilator Yes
Volume flow, freeblowing, m³/h 10
Air circulator Yes
Wall build in Yes
Noise emission, dB(A) 32
Product type Fan
Mounting type Wall-mounted
Rated operating voltage V, ~, Hz 115 V, 1 p, 50/60 Hz
Unimpeded air flow, m3/h 10
Size Size 08, 112 x 112
EMC-version No
Code of ventilation grille R5RF08B
External dimensions (W x H x D), mm 112 x 112 x 75
Maximum installation depth, mm 62.04
Required mounting cut-out (W x H), mm 92 x 92
Degree of protection IP54
Optionally degree of protection IP55, IP56
Material ABS plastic, PC, UL94V0
Operating temperature range, ˚C -10…+55
Storage temperature range, ˚C -40…+70
Noise level, dB(A) 32
Rated current, A 0.15
Rated power consumption, W 14
Maximum static pressure, Pa 23
Service life (MTBF), h 50000
Filter class G3
Color RAL 9005, black
Weight, kg 0.39
Accessories
Analogs

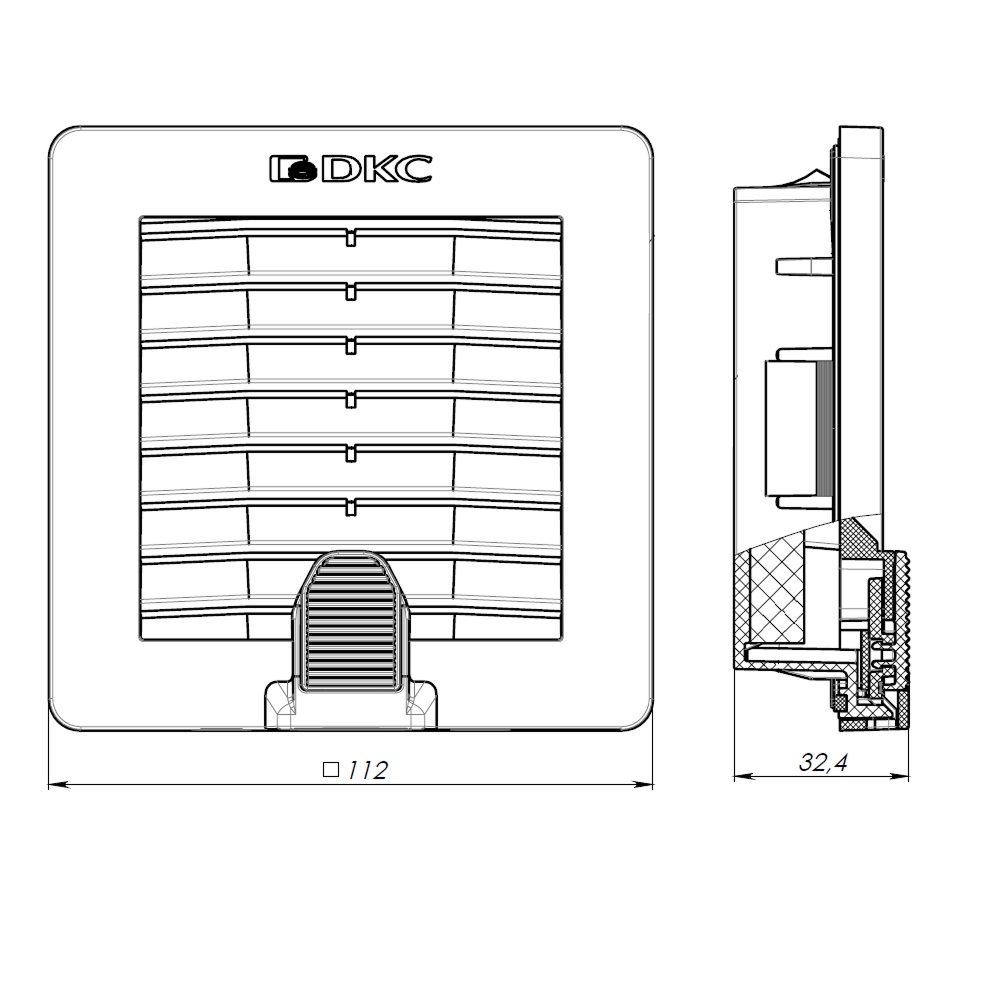

Drawings
Seria Name DWG (dynamic.) Eplan
