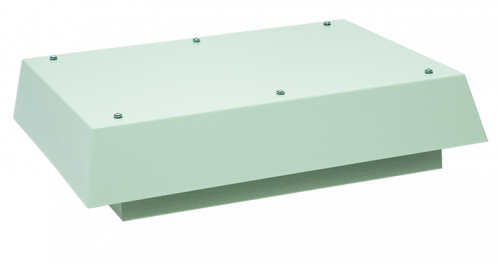

Roof fan with filter 1500/1550 m3/h, 230 V, IP44

Code: R5RTF1500A
Roof fan with filter 1500/1550 m3/h, 230 V, IP44
  • To ask a question
Mounting method Snap mounting
Width, mm 540
Height, mm 128
Depth, mm 390
Suitable for 19 inch rack mounting Нет
Number of fans 1
EMC-version Нет
Degree of protection (IP) IP44
With filter Да
Rated power, W 160
Roof ventilator Да
Built as slide-in ventilator Нет
Volume flow, freeblowing, m³/h 1500
Air circulator Нет
Wall build in Нет
Operating voltage at AC 50 Hz, V 230
Operating voltage at AC 60 Hz, V 230
Voltage type AC
RAL-number 7035
With protective cover ДА
Noise emission, dB(A) 74
Colour Grey
Product type Fan
Mounting type Roof-mounted
Rated operating voltage V, ~, Hz 230 V, 1 p, 50/60 Hz
Size Roof-mounted, 540 x 128 x 390
EMC-version No
Code of ventilation grille 2 x R5RF20
External dimensions (W x H x D), mm 540 x 128 x 390
Maximum installation depth, mm 38
Required mounting cut-out (W x H), mm 380 x 260
Degree of protection IP44
Optionally degree of protection -
Material Steel sheet
Operating temperature range, ˚C -20…+50
Storage temperature range, ˚C -20…+50
Noise level, dB(A) 74
Rated current, A 0.7
Rated power consumption, W 160
Maximum static pressure, Pa -
Service life (MTBF), h 50000
Filter class -
Color RAL 7035, light grey
Weight, kg 11.3
Unimpeded air flow, m3/h 1500
