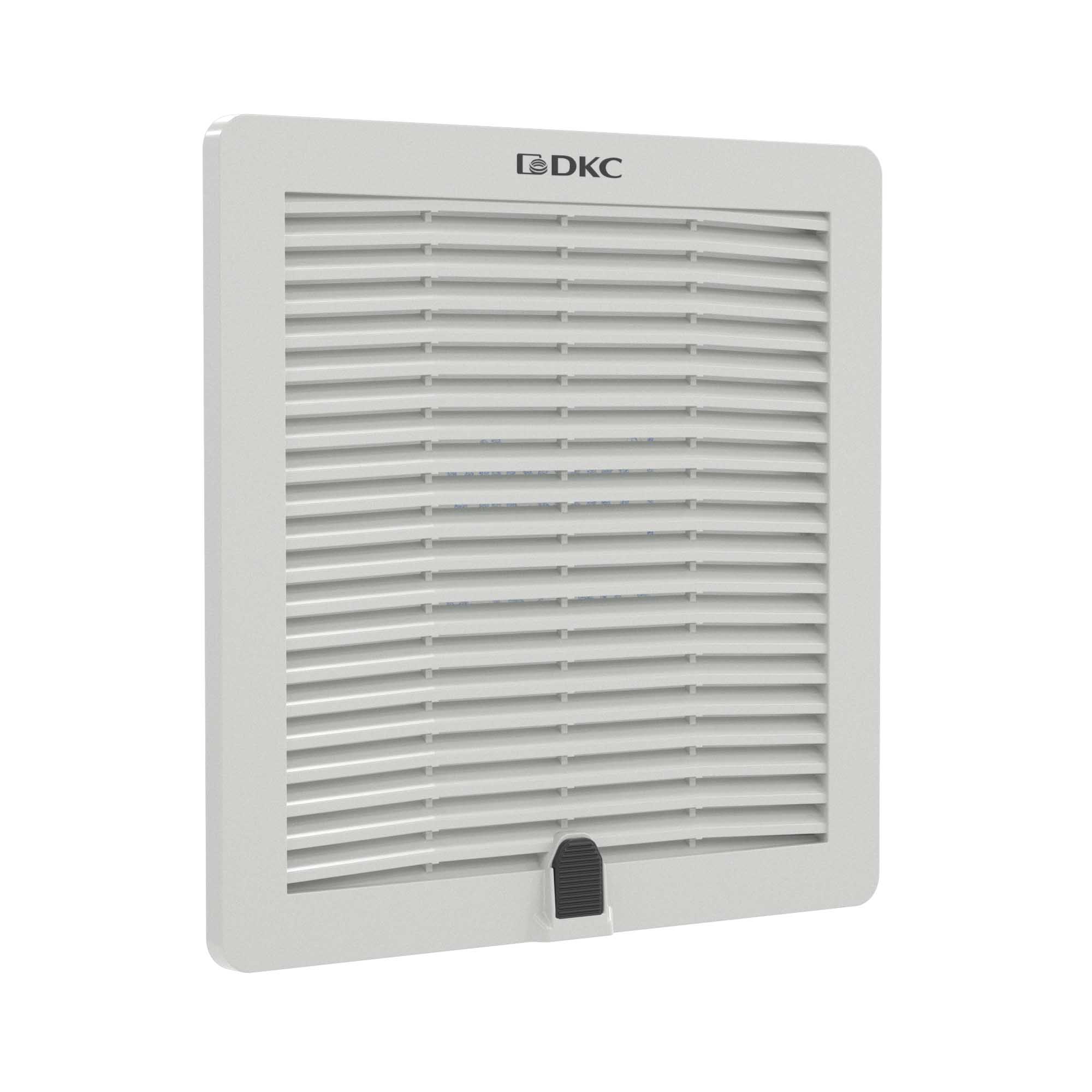

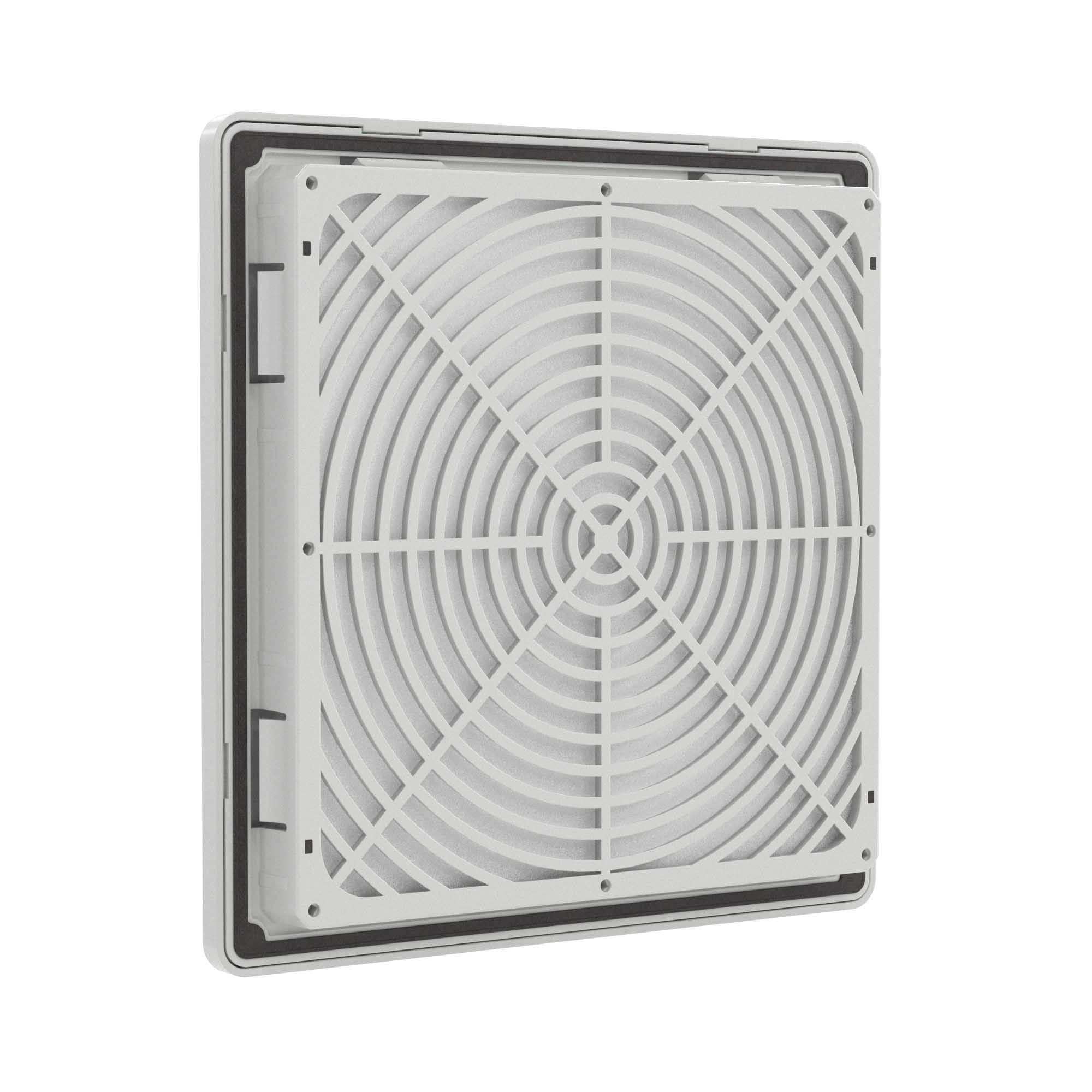

Ventilation grille with filter RF 252x252 mm, IP54
Code: R5RF15
Ventilation grille with filter RF 252x252 mm, IP54
Code: R5RF15
Width, mm | 252 |
Height, mm | 252 |
Degree of protection (IP) | IP54 |
Mounting method | Snap mounting |
For max. number of fans | 1 |
With built-in filter | Yes |
Material | Plastic |
Surface finishing | Brushed/grinded |
Product type | Ventilation grille |
Mounting type | Wall-mounted |
Size | Size 15, 252 x 252 |
EMC-version | No |
External dimensions (W x H x D), mm | 252 x 252 |
Required mounting cut-out (W x H), mm | 224 x 224 |
Degree of protection | IP54 |
Optionally degree of protection | IP55, IP56 |
Material | ABS plastic, UL94V0 |
Operating temperature range, ˚C | -40…+70 |
Storage temperature range, ˚C | -40…+70 |
Filter class | G3 |
Color | RAL 7035, light grey |
Weight, kg | 0.44 |
Accessories
Analogs
Drawings
Seria | Name | DWG (dynamic.) | DWG | STEP | Eplan |
---|---|---|---|---|---|
