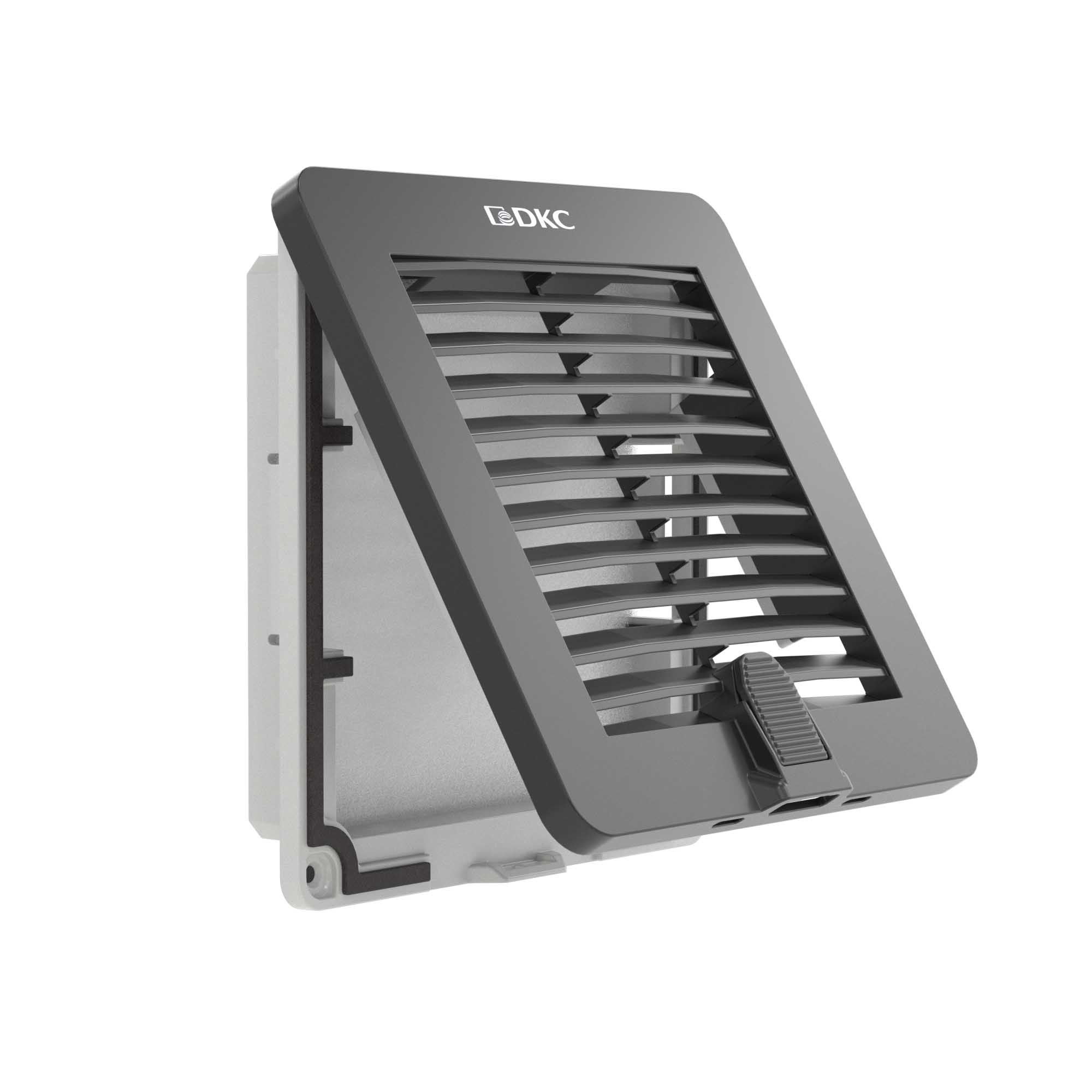

Ventilation grille with filter RF 150x150 mm, IP54, RAL9005

Code: R5RF12B
Ventilation grille with filter RF 150x150 mm, IP54, RAL9005
  • To ask a question
762
Mounting method Snap mounting
Width, mm 150
Height, mm 150
For max. number of fans 1
With built-in filter Yes
Material Plastic
Degree of protection (IP) IP54
Surface finishing Brushed/grinded
Product type Ventilation grille
Mounting type Wall-mounted
Size Size 12, 150 x 150
EMC-version No

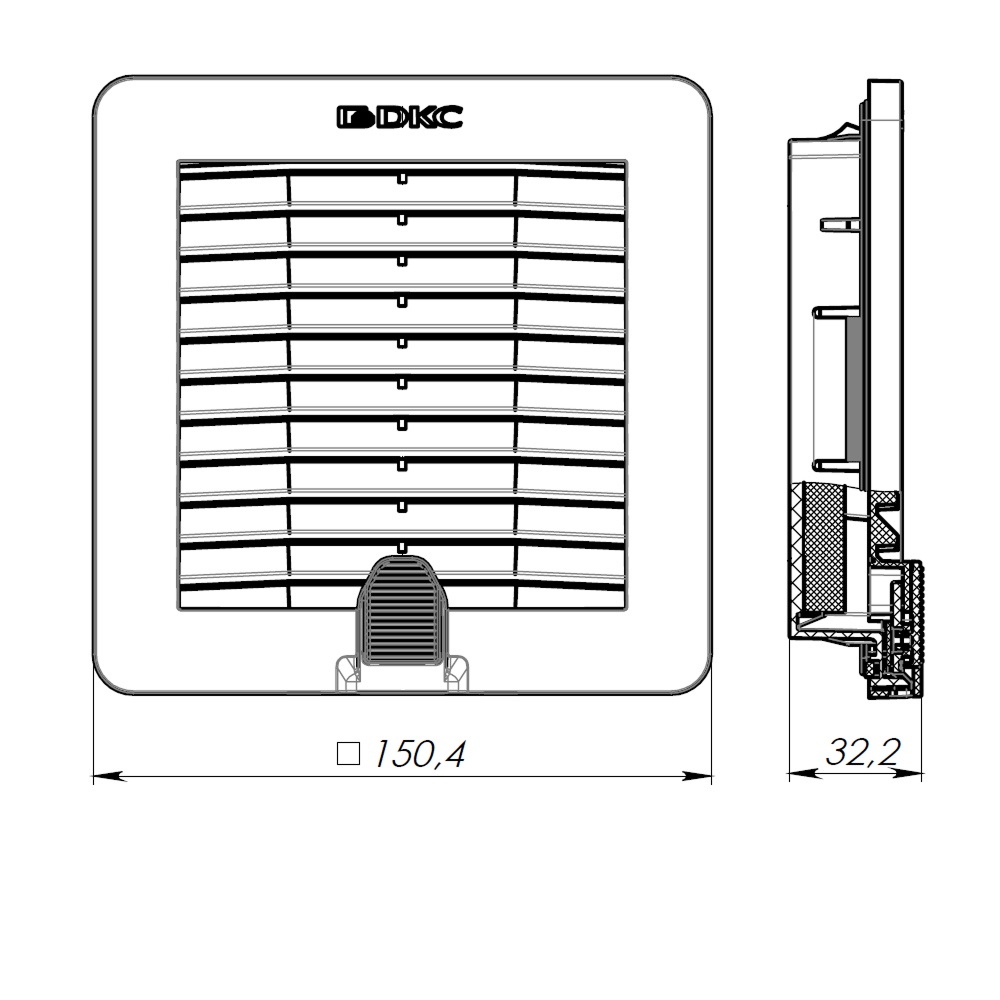

External dimensions (W x H x D), mm 150 x 150
Required mounting cut-out (W x H), mm 124,5 x 124,5
Degree of protection IP54
Optionally degree of protection IP55, IP56
Material ABS plastic, UL94V0
Operating temperature range, ˚C -40…+70
Storage temperature range, ˚C -40…+70
Filter class G3
Color RAL 9005, black
Weight, kg 0.15
