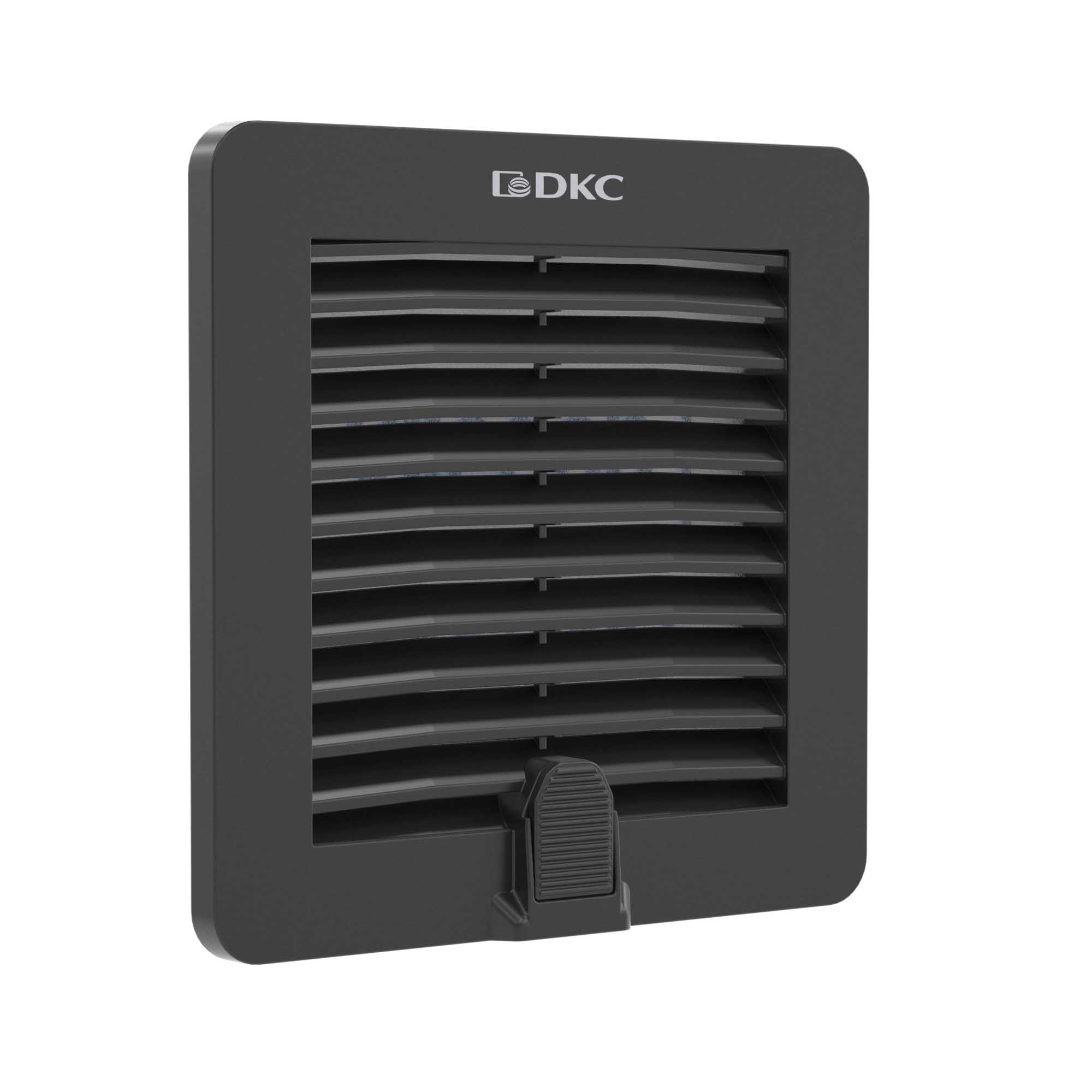

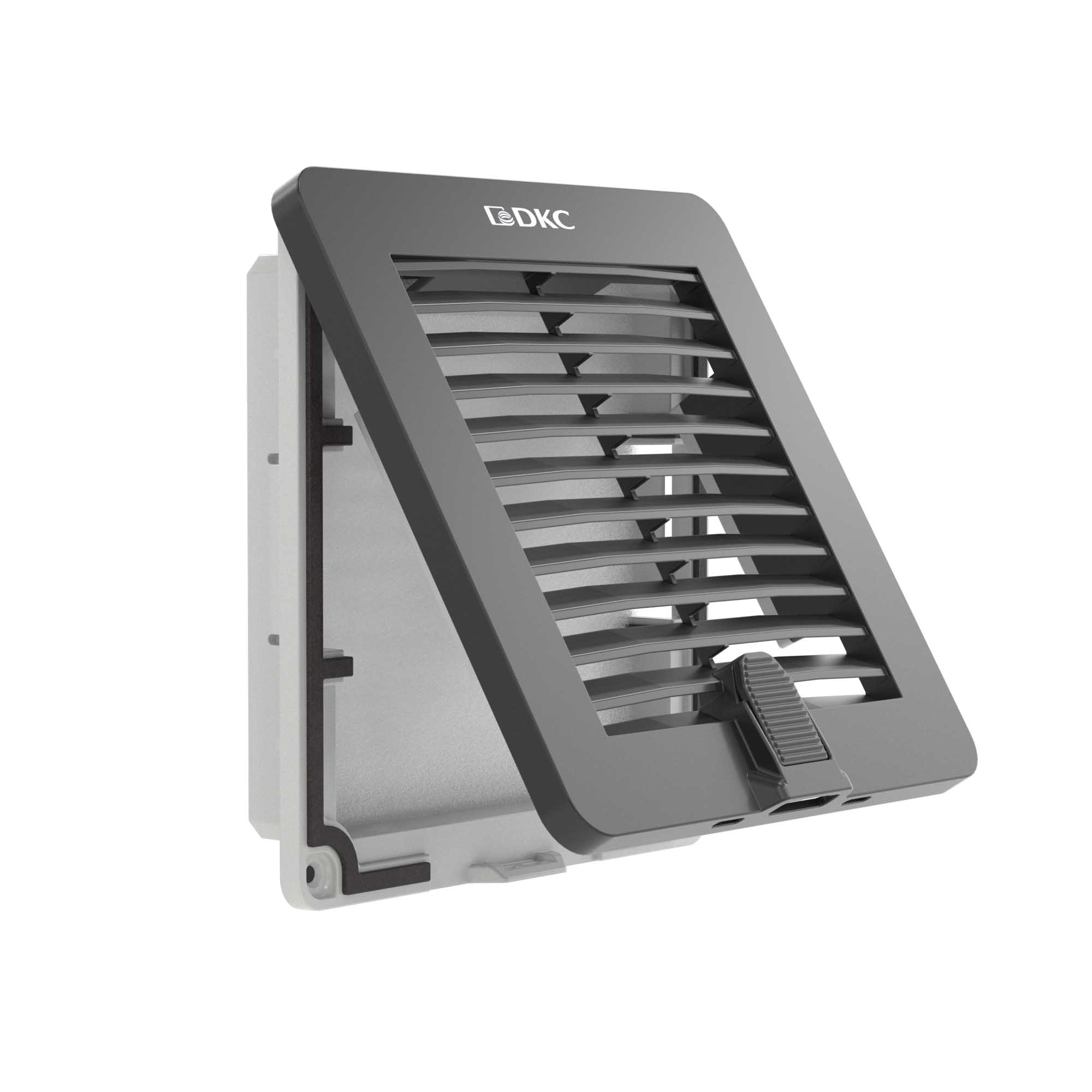

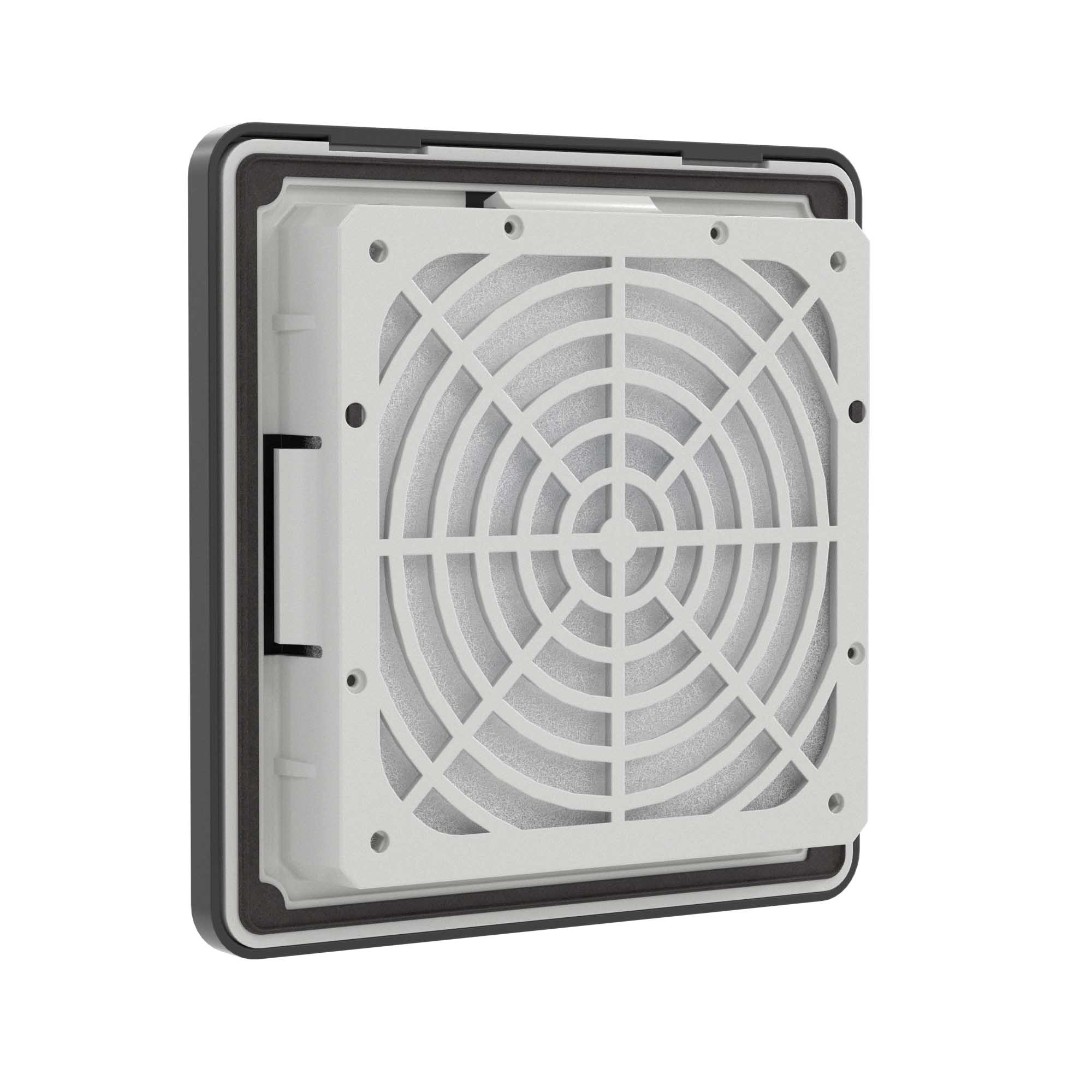

Ventilation grille with filter RF 112x112 mm, IP54, RAL9005

Code: R5RF08B
Ventilation grille with filter RF 112x112 mm, IP54, RAL9005
  • To ask a question
756
Mounting method Snap mounting
Width, mm 112
Height, mm 112
For max. number of fans 1
With built-in filter Yes
Material Plastic
Degree of protection (IP) IP54
Surface finishing Brushed/grinded
Product type Ventilation grille
Mounting type Wall-mounted
Size Size 08, 112 x 112
EMC-version No
External dimensions (W x H x D), mm 112 x 112
Required mounting cut-out (W x H), mm 92 x 92
Degree of protection IP54
Optionally degree of protection IP55, IP56
Material ABS plastic, UL94V0
Operating temperature range, ˚C -40…+70
Storage temperature range, ˚C -40…+70
Filter class G3
Color RAL 9005, black
Weight, kg 0.09
Accessories
Analogs

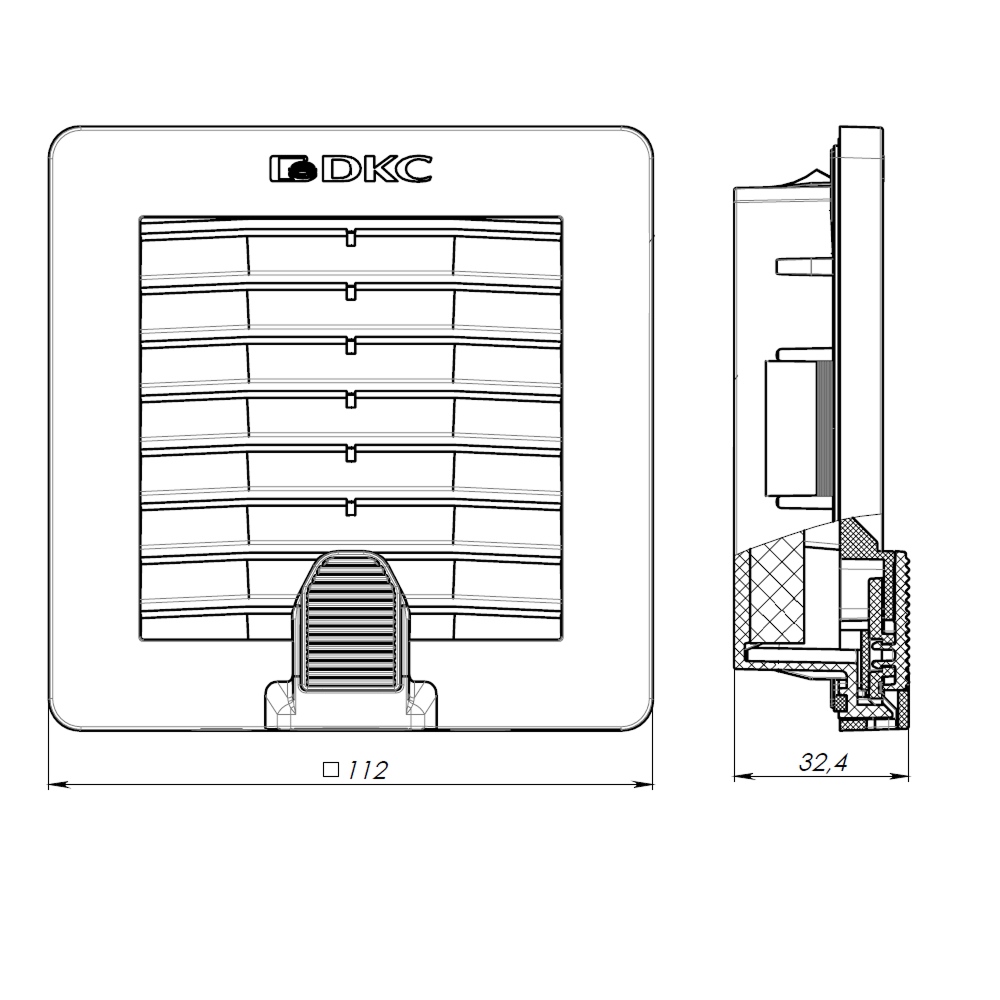

Drawings
Seria Name DWG (dynamic.) Eplan
