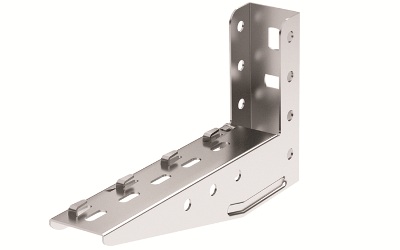

Bracket for mesh trays ML 100 mm inox
Code:
FC34101INOX
Bracket for mesh trays ML 100 mm inox
Code:
FC34101INOX
Colour | Light grey |
Width, mm | 44 |
Model | Wall- and profile console |
Height, mm | 125 |
Surface protection | Bare |
Material quality | Stainless steel |
Length, mm | 100 |
Material | Stainless steel |
Load bearing capacity, kN | 1421 |
Suitable for circuit integrity | Yes |
Product type | Brackets |
For trays width (max.) | 100 mm |
Material | Stainless steel AISI 304 |

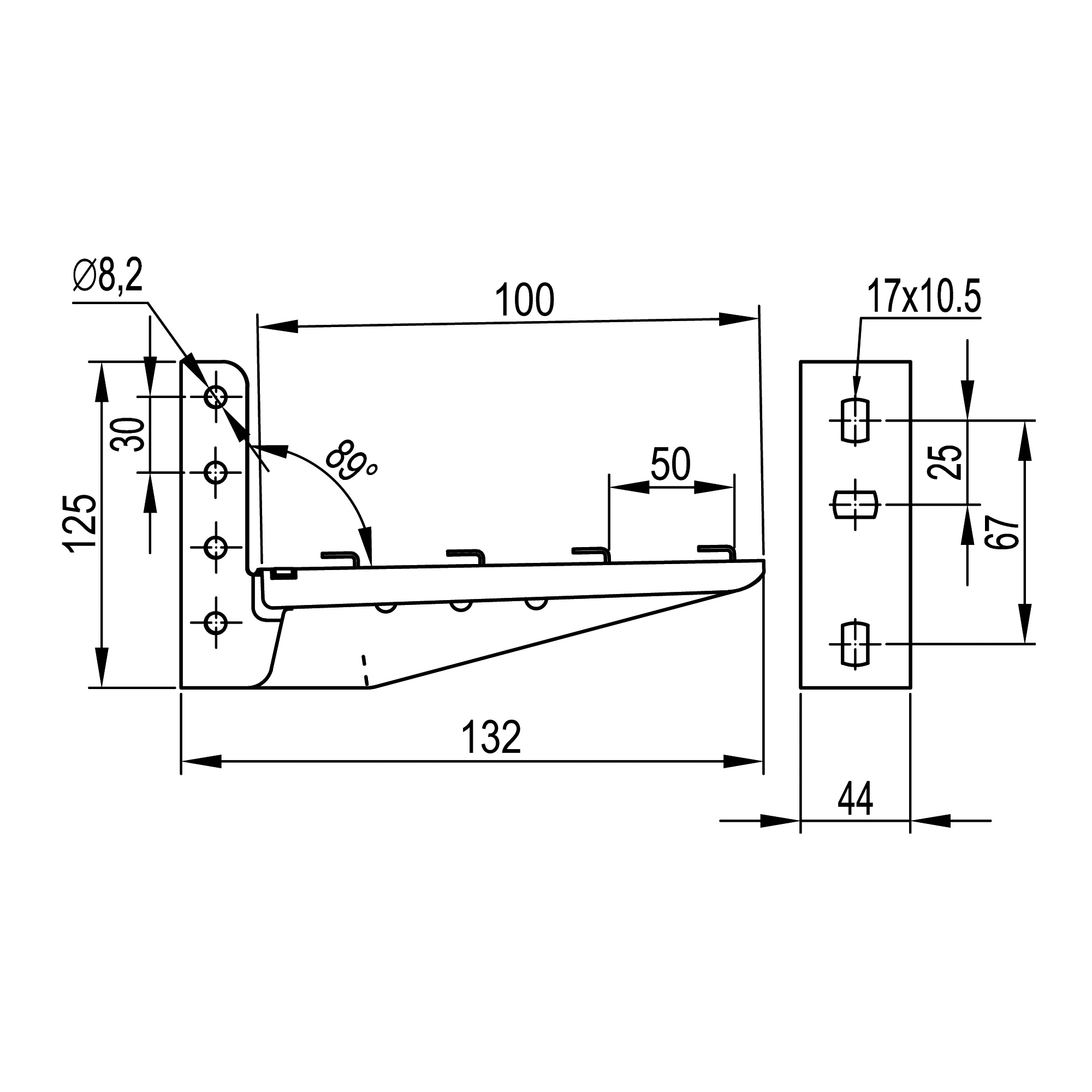

Drawings
Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit |
---|---|---|---|---|
Metal wire mesh trays - "F5 Combitech"
|
|
|
||
Metal wire mesh trays - "F5 Combitech"
|
|
|
||
Metal wire mesh trays - "F5 Combitech"
|
|
|
