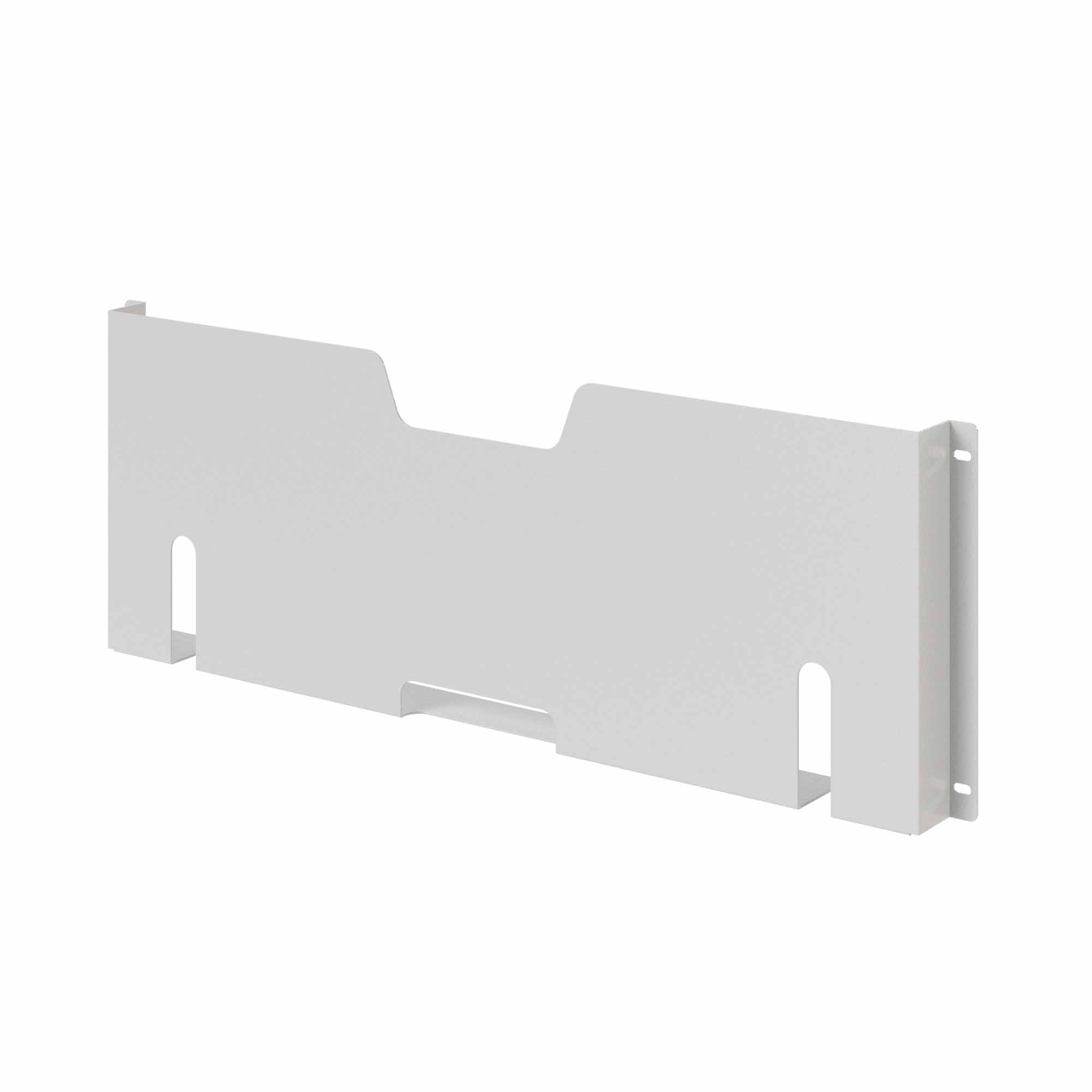

Pocket for wiring diagrams for blank CQE/DAE doors W=800 мм

Code: R5NTE80

Colour	Grey
Model	Wiring diagram pocket
Self adhesive mounting	Нет
RAL-number	7035
Suitable for enclosure building width, mm	800

Seria	Name	DWG (dynamic.)	Eplan
Metal enclosures - "RAMblock"	Prefabricated outdoor metal cabinets CQE (dynamic blocks)	RAR 8.46 Mb
Metal enclosures - "RAMblock"	Prefabricated outdoor metal cabinets CQE		RAR 169.72 Mb
Metal enclosures - "RAMblock"	Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)	RAR 1.17 Mb

Name	Document
RAM block - Exemption letter for accessories RAM block_1	PDF 742.54 kB
Test report on hinged welded cabinets ST_UHL1_1	PDF 196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"	PDF 5.99 MB
