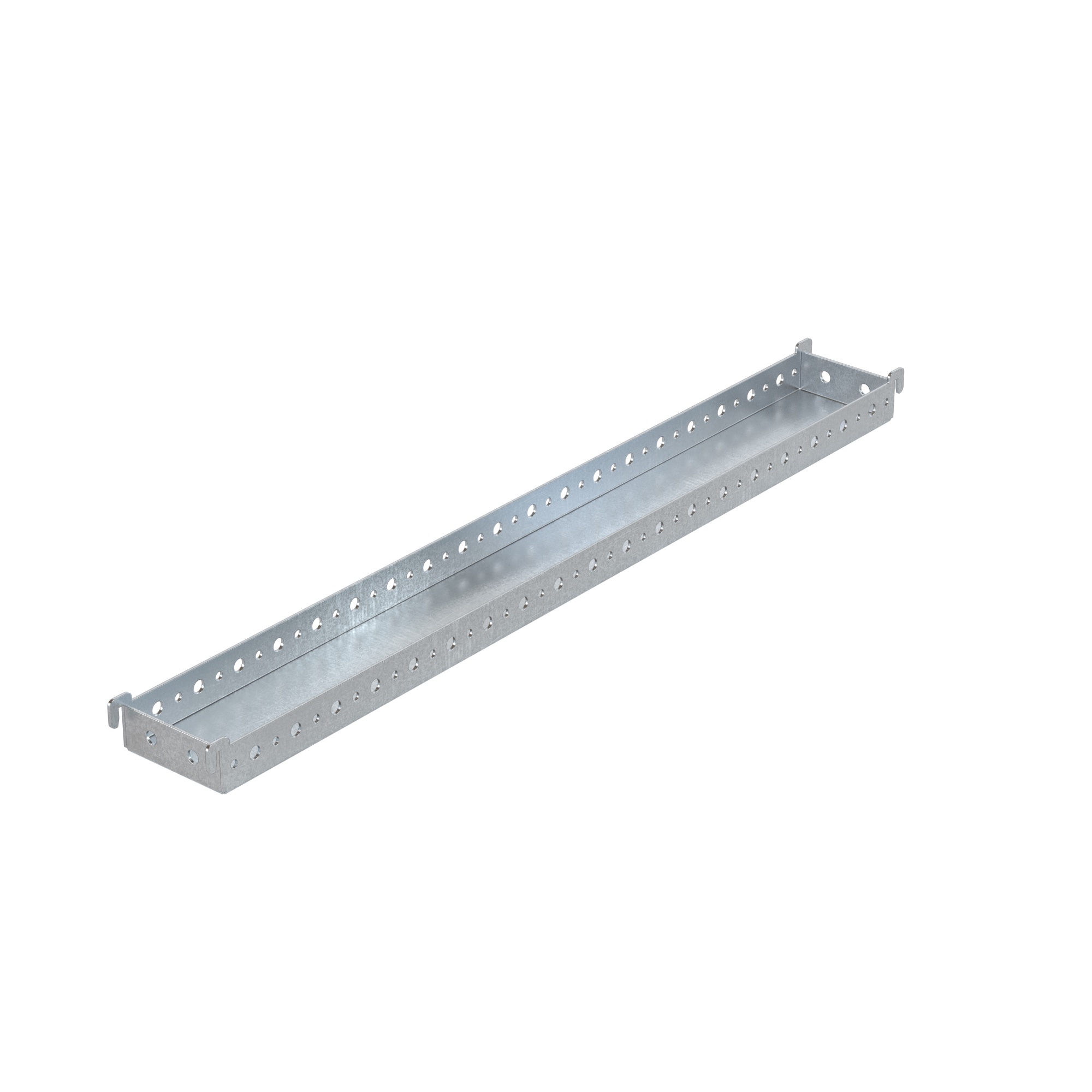

Medial rail for plinth D= 800 mm

Code: R5NSFP800

To ask a question

ETIM

Model

Distance piece

Depth, mm

800

Drawings

Seria	Name	Eplan	DWG (dynamic blocks)
Metal enclosures - "RAMblock"	Prefabricated outdoor metal cabinets CQE	RAR 169.72 MB
Metal enclosures - "RAMblock"	Prefabricated outdoor metal cabinets CQE (dynamic blocks)		RAR 8.46 MB
Metal enclosures - "RAMblock"	Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)		RAR 1.17 MB

Certificates

Name	Document
RAM block - Exemption letter for accessories RAM block_1	PDF 742.54 kB
Test report on hinged welded cabinets ST_UHL1_1	PDF 196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"	PDF 5.99 MB
