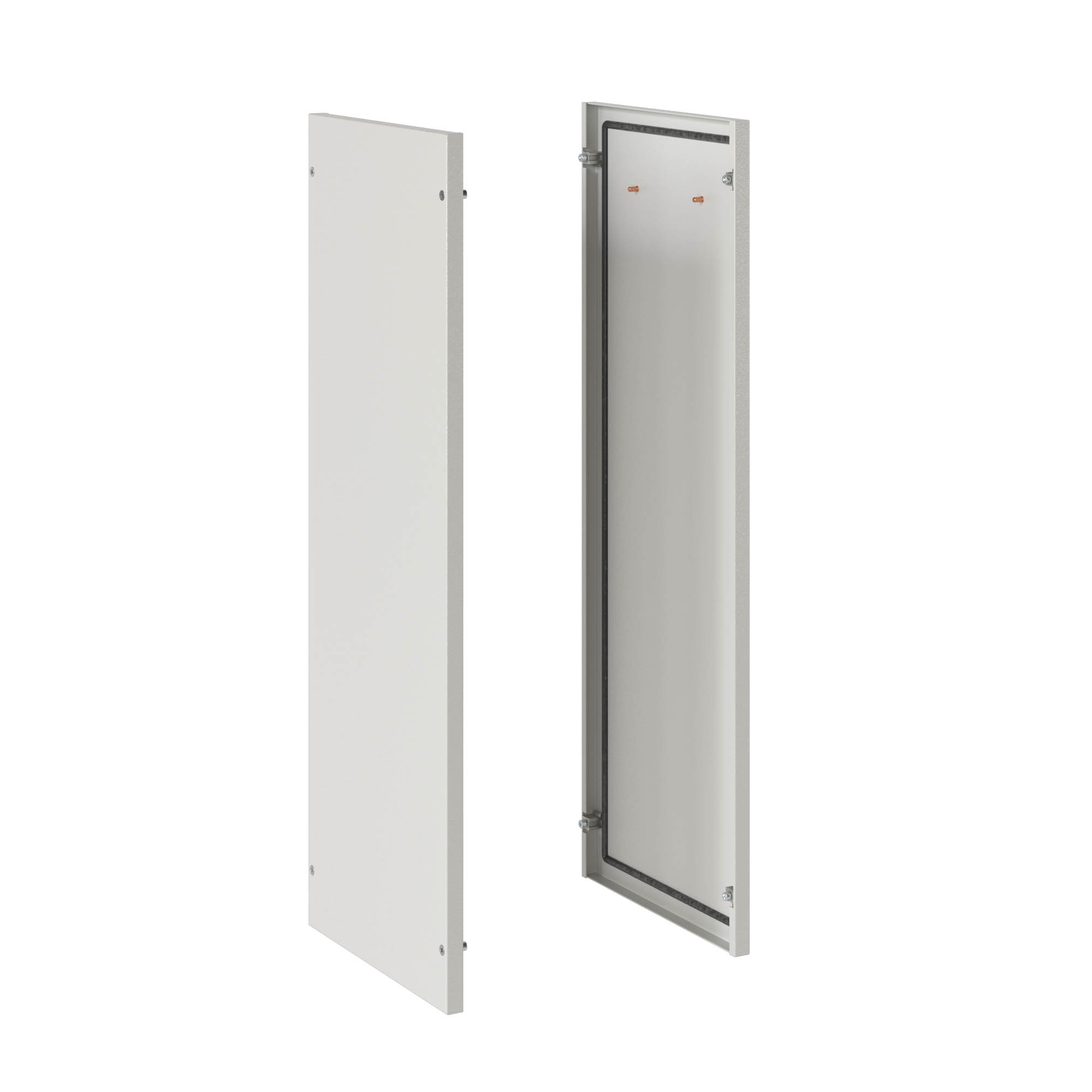

Side panels for CQE 1200x600 mm. 2 pcs

Code: R5LE1262
Side panels for CQE 1200x600 mm. 2 pcs
Side panels for CQE 1200x600 mm. 2 pcs
Material Steel
Type of surface With powder coating
RAL-number 7035
Colour Grey
Width, mm 600
Height, mm 1200
With lock No
With cable entry No
Suitable as rear panel No
Suitable for enclosure building width, mm 600
Suitable as side panel Yes
Drawings
Seria Name Eplan DWG (dynamic blocks)
RAMblock - metal enclosures
Prefabricated outdoor metal cabinets CQE
RAR
169.72 MB
RAMblock - metal enclosures
Prefabricated outdoor metal cabinets CQE (dynamic blocks)
RAR
8.46 MB
RAMblock - metal enclosures
Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)
RAR
1.17 MB
Certificates
Name Document
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
