Flush mounting push-button dimmer for LED lamps Avanti, 3-120W, 2 mod., frosty white
Code:
4400343
Code:
4400343
| Method of operation | Push button |
| Mounting method | Flush mounted (plaster) |
| Material quality | Thermoplastic |
| Surface finishing | Glossy |

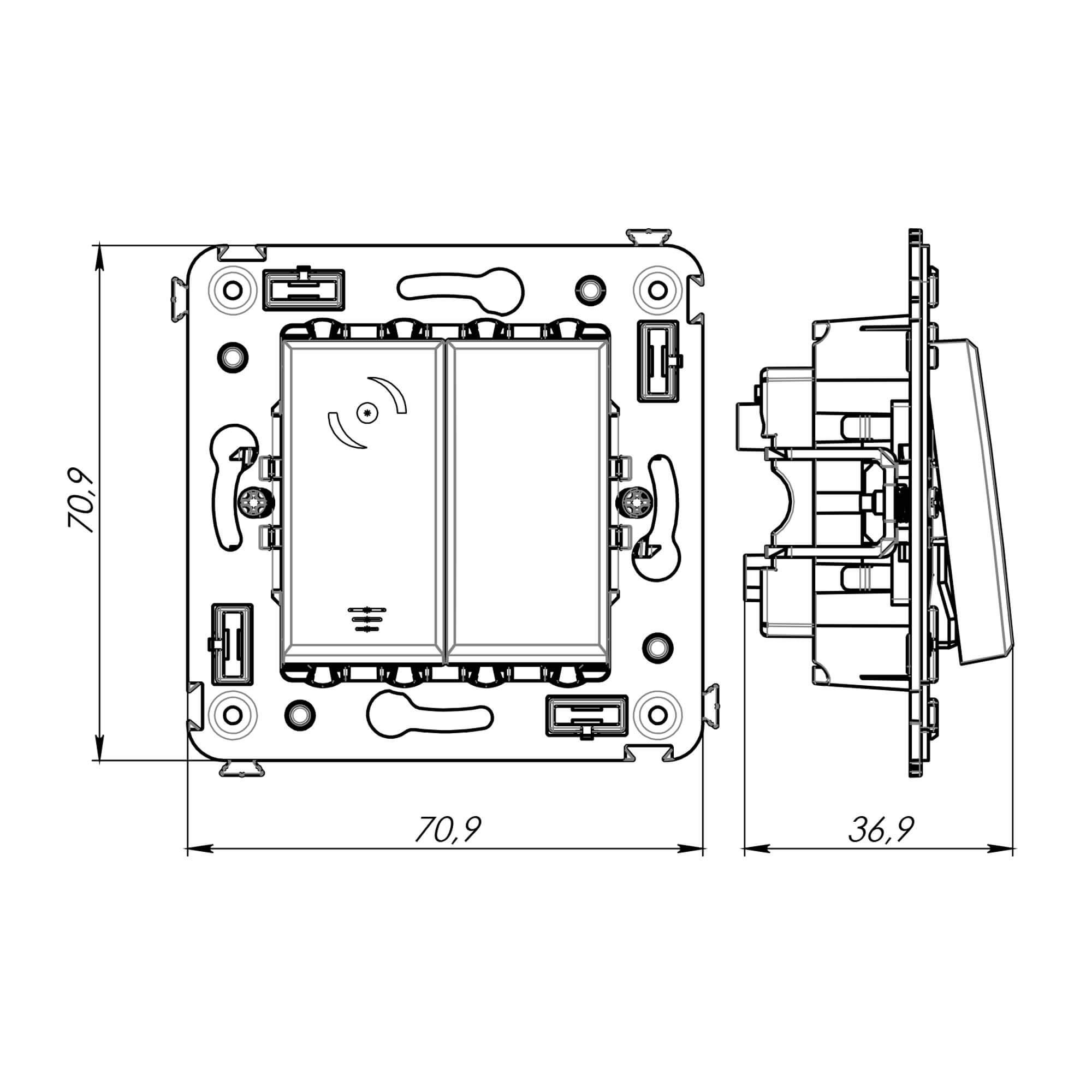

| Depth of device, mm | 37 |
| Number of modules (module system) | 2 |
| Colour | White |
| Material | Plastic |
| Applicable with button | Yes |
| Assembly arrangement | Basic element with central cover plate |
| Surface protection | Decor |
| Modular version | No |
| Type of load | Universal and LED Retrofit |
| Duct installation | No |
| Type of fastening | Mounting with screw |
| Light value memory | Yes |
| Substation input | Yes |
| Serial dimmer | No |
| Suitable for degree of protection (IP) | IP20 |
| Width of device, mm | 70.9 |
| Height of device, mm | 70.9 |
| Dimming phase cut-off | Yes |
| Dimming phase cut-on | Yes |
| Nominal power, VA | 3...120 |
| Color | white cloud |
| Number of modules | 2 |
| Material | PVC |
| Product type | Dimmer |
| Type of installation | concealed installation |
| Type of dimmer | Button |
