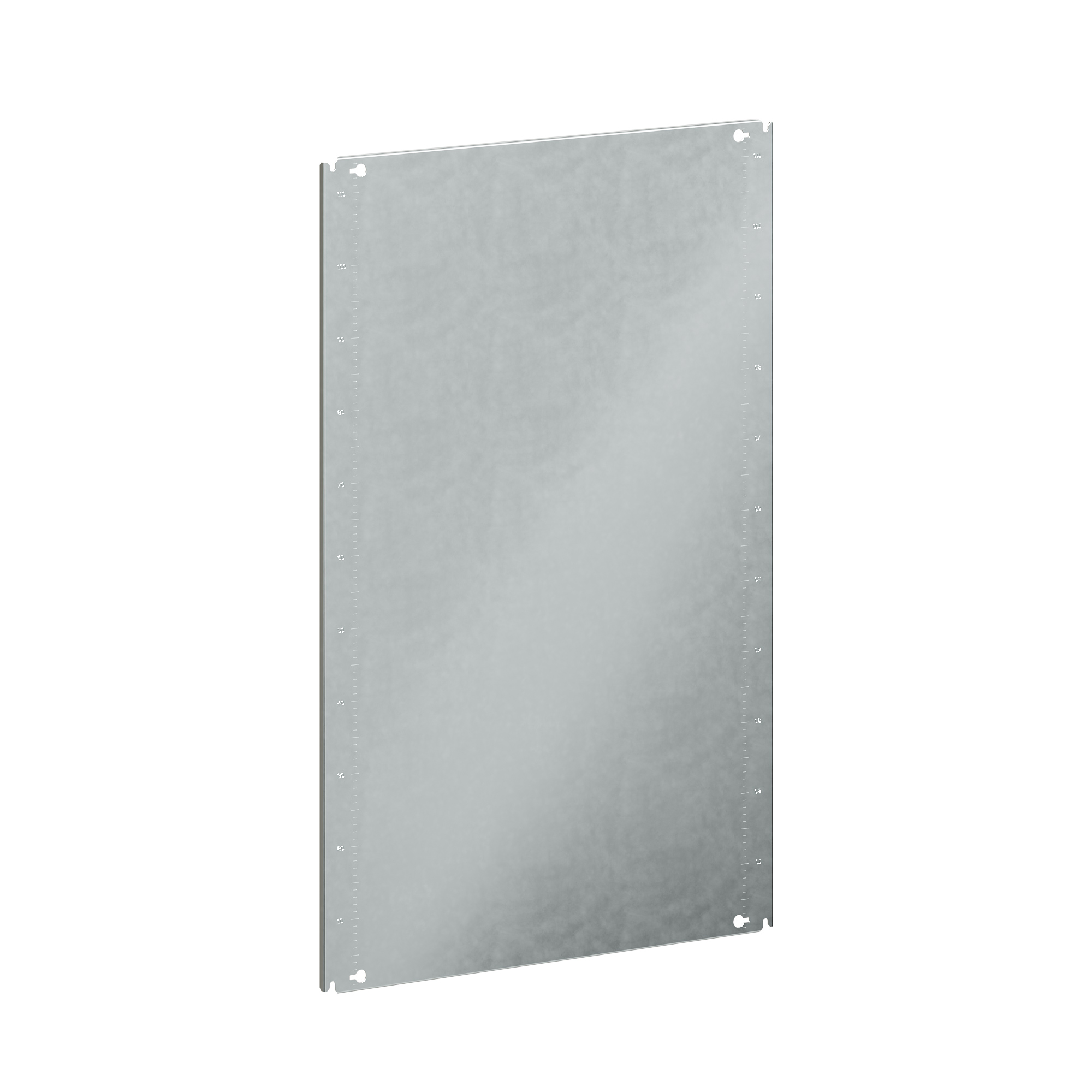

Circuit board for ST 1200x800

Code: R5ST128MP
Circuit board for ST 1200x800
Circuit board for ST 1200x800

Circuit board for ST 1200x800

Code: R5ST128MP
Width, mm 800
Height, mm 1200
Perforated Yes
Surface protection Galvanized
Material Steel
Enclosure type Wall-mounted
Material Galvanized steel
Product type Mounting plate
Drawings
Seria Name Insulation cut out DWG (dynamic.)
Metal enclosures - "RAMblock"
Welded wall cabinets CE
ZIP
151.54 Kb
Metal enclosures - "RAMblock"

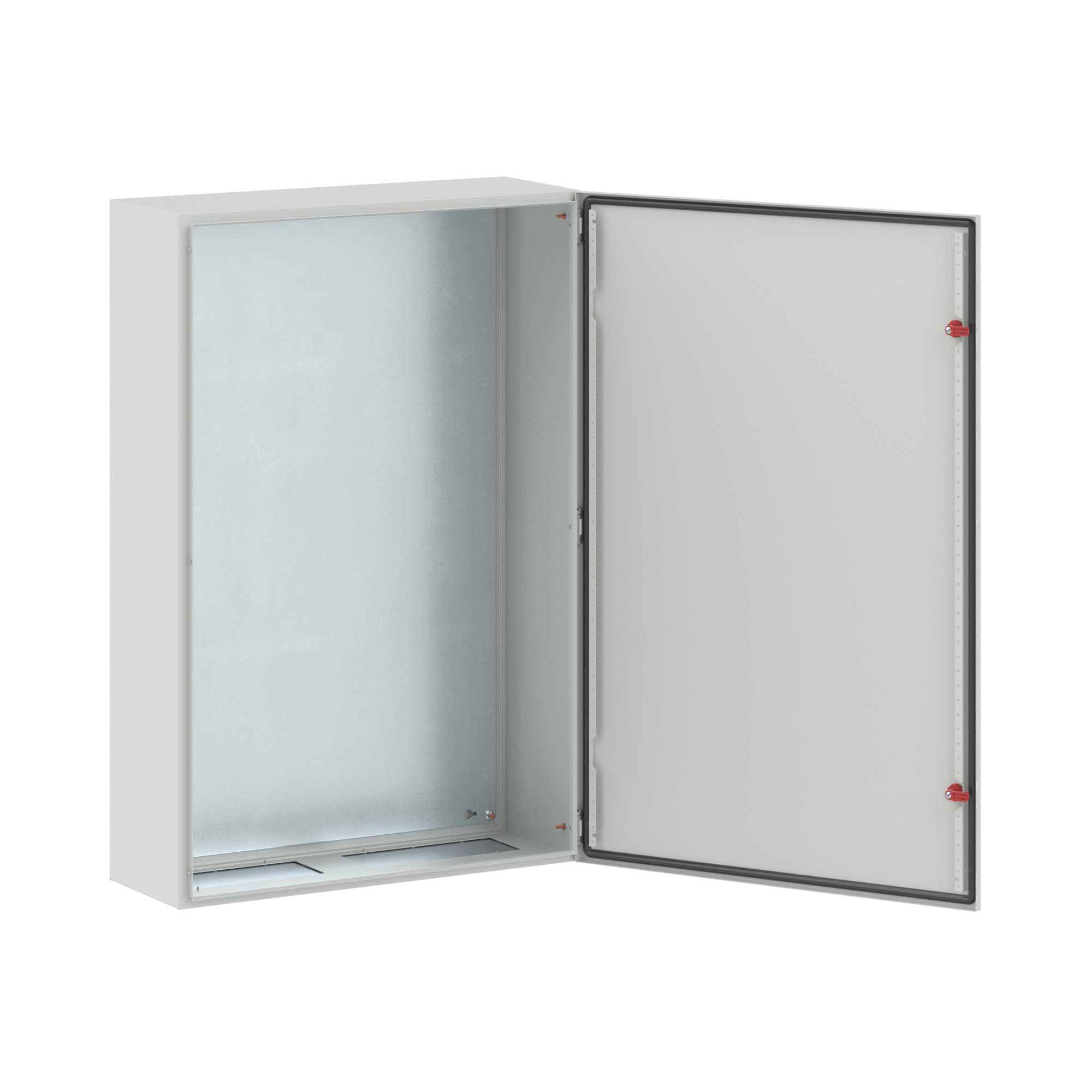

Welded hinged housing of the ST series
ZIP
151.54 Kb
Metal enclosures - "RAMblock"
Wall welded cabinets series CE (dynamic blocks)
RAR
10.17 Mb
Certificates
Name Document
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
Test report on seismic and vibration metal enclosures ST series_1
PDF
998.40 kB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
