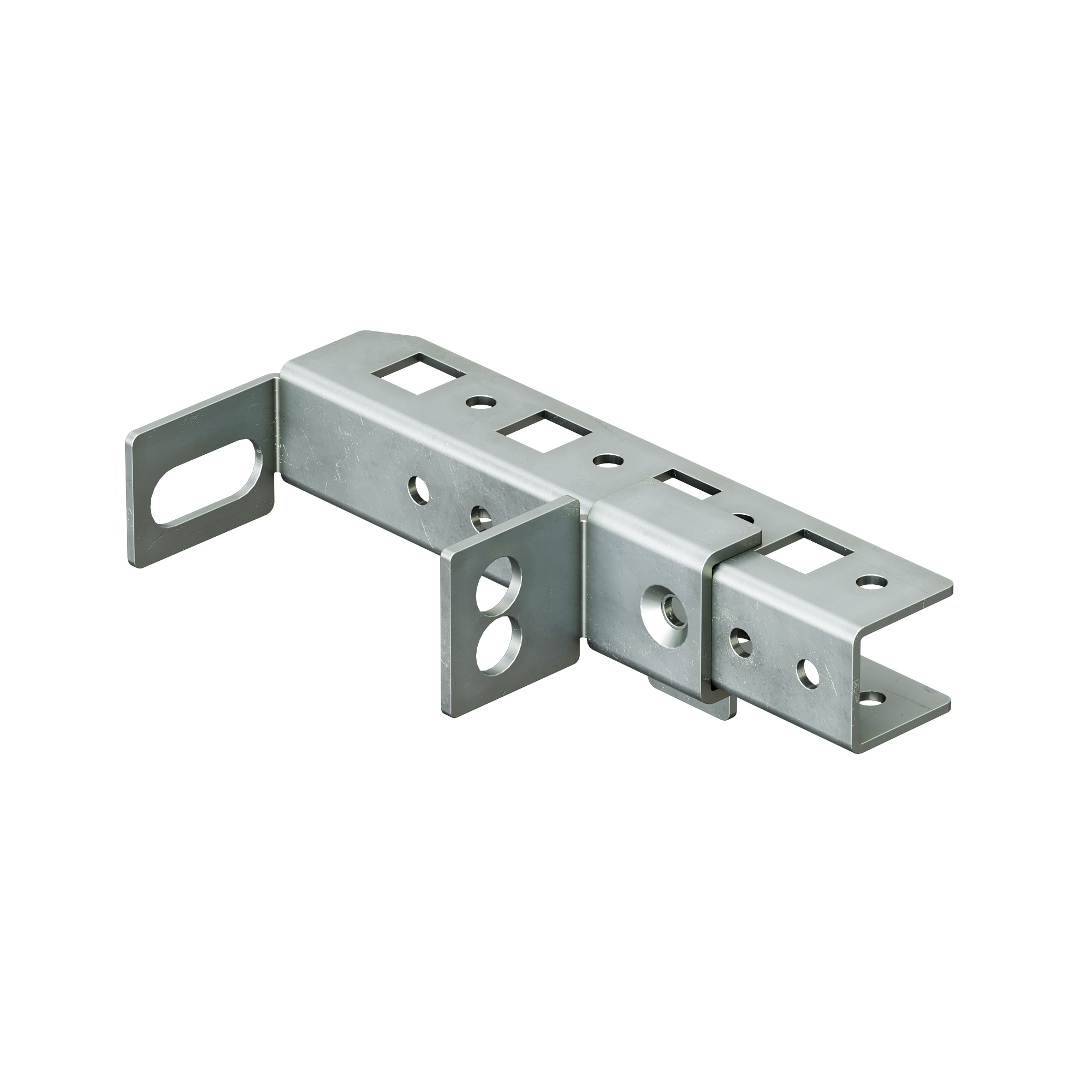

Guiding bars of mounting plate for ST/CE, D = 150 mm

Guiding bars of mounting plate for ST/CE, D = 150 mm

Code: R5RDMP01

To ask a question

ETIM

Colour	Other
Depth, mm	150

Material

Metal

Drawings

Seria	Name	Templates for insulation cut	DWG (dynamic blocks)
RAMblock - metal enclosures	Welded hinged housing of the ST series	ZIP 151.54 kB
RAMblock - metal enclosures	Welded wall cabinets CE	ZIP 151.54 kB
RAMblock - metal enclosures	Wall welded cabinets series CE (dynamic blocks)		RAR 10.17 MB

Certificates

Name	Document
RAM block - Exemption letter for accessories RAM block_1	PDF 742.54 kB
Test report on seismic and vibration metal enclosures ST series_1	PDF 998.40 kB
Test report on hinged welded cabinets ST_UHL1_1	PDF 196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"	PDF 5.99 MB
