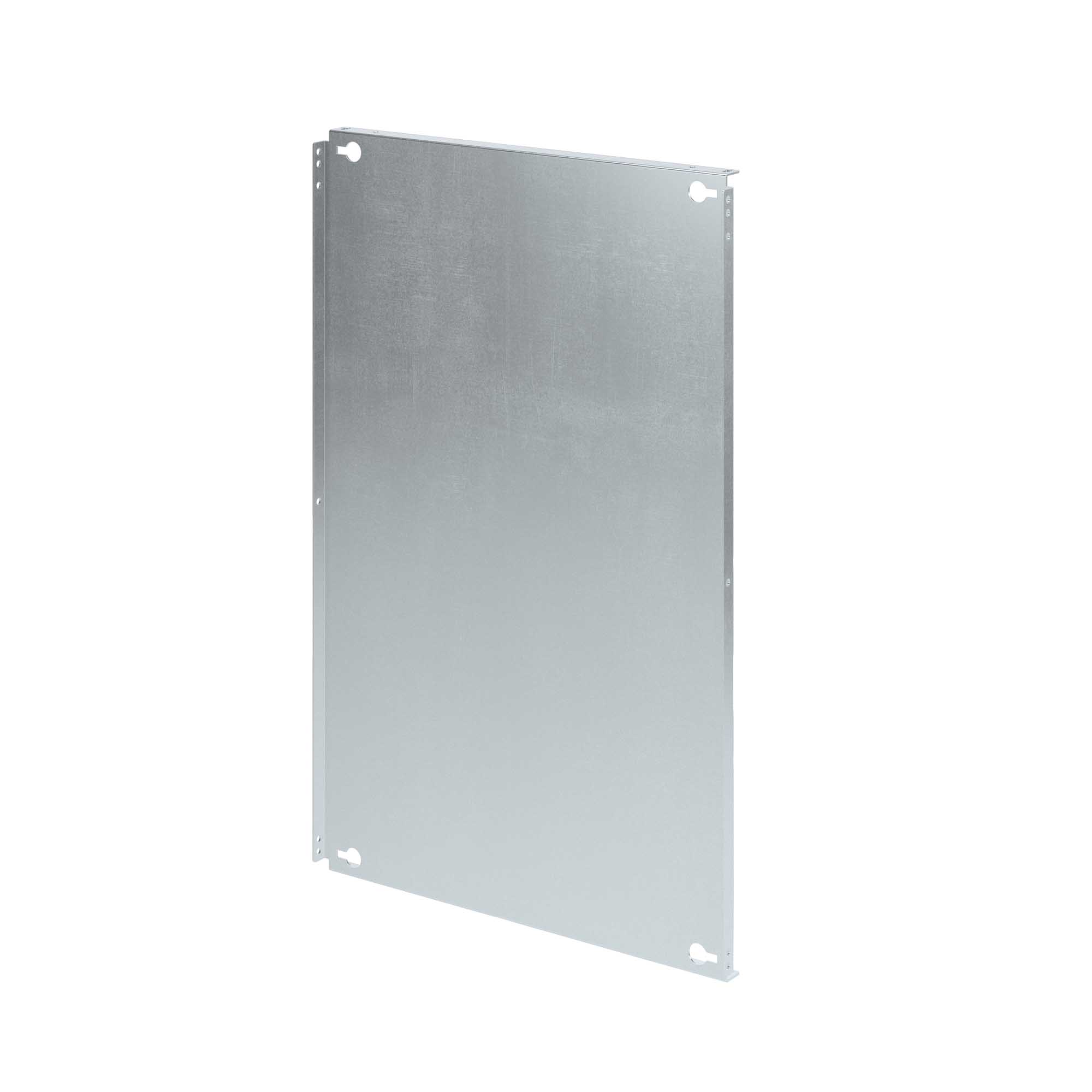

CQE mounting plate, partial, 800x600 mm

Code: R5PPS8006
CQE mounting plate, partial, 800x600 mm
CQE mounting plate, partial, 800x600 mm
  • To ask a question
Width, mm 600
Height, mm 800
Perforated No
Surface protection Zinc coated
Material Steel
Drawings
Seria Name Eplan DWG (dynamic blocks)
Metal enclosures - "RAMblock"
Prefabricated outdoor metal cabinets CQE
RAR
169.72 MB
Metal enclosures - "RAMblock"
Prefabricated outdoor metal cabinets CQE (dynamic blocks)
RAR
8.46 MB
Metal enclosures - "RAMblock"
Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)
RAR
1.17 MB
Certificates
Name Document
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
