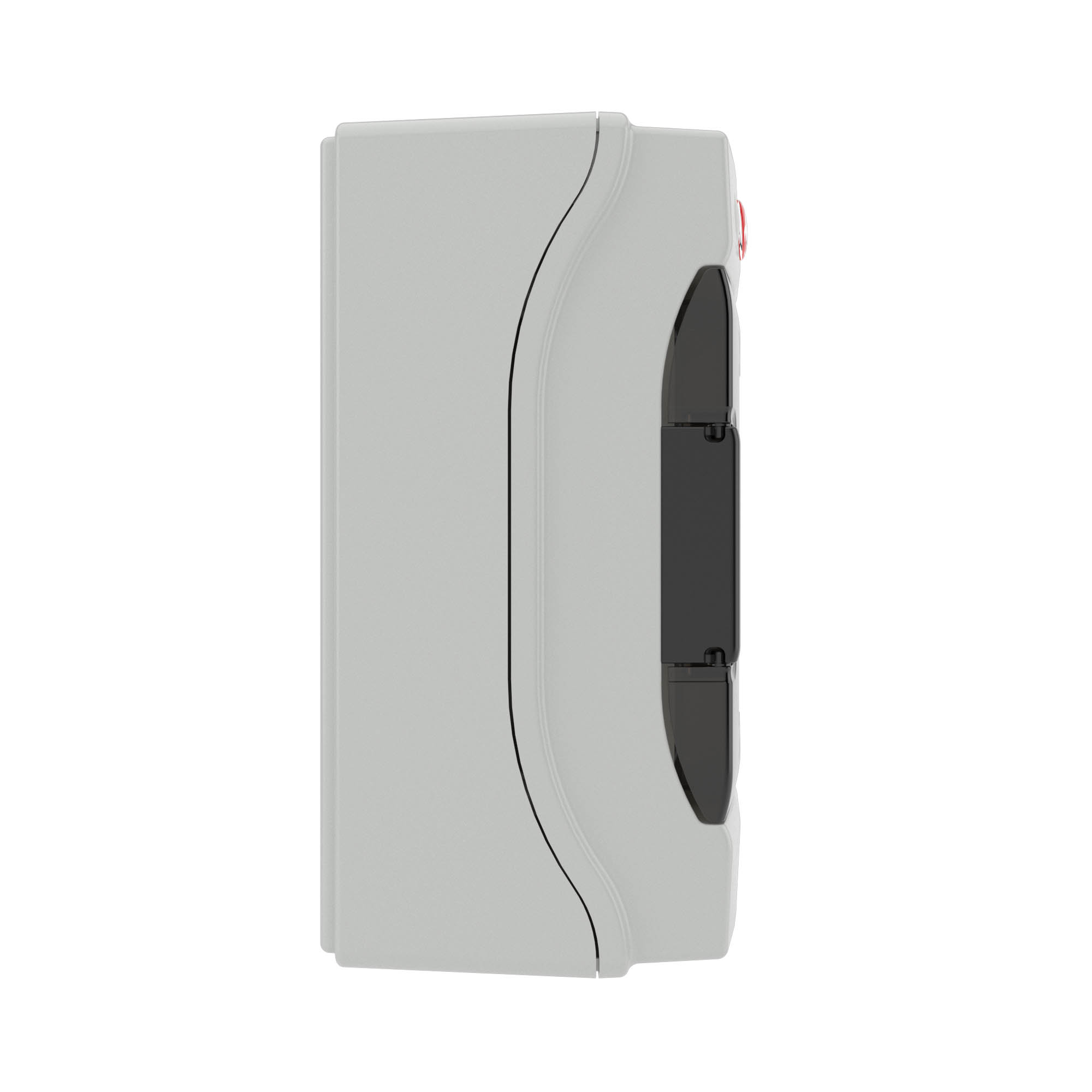

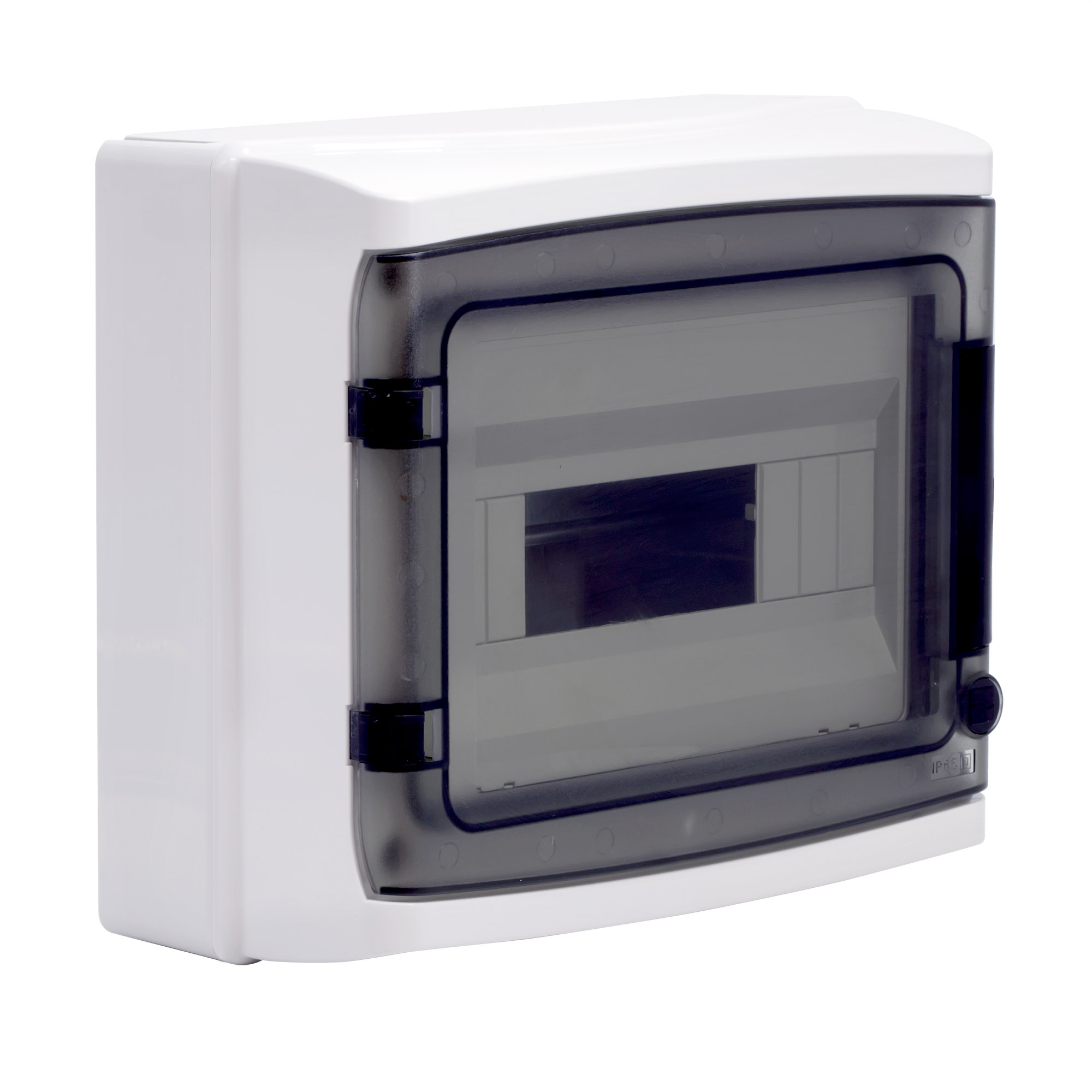

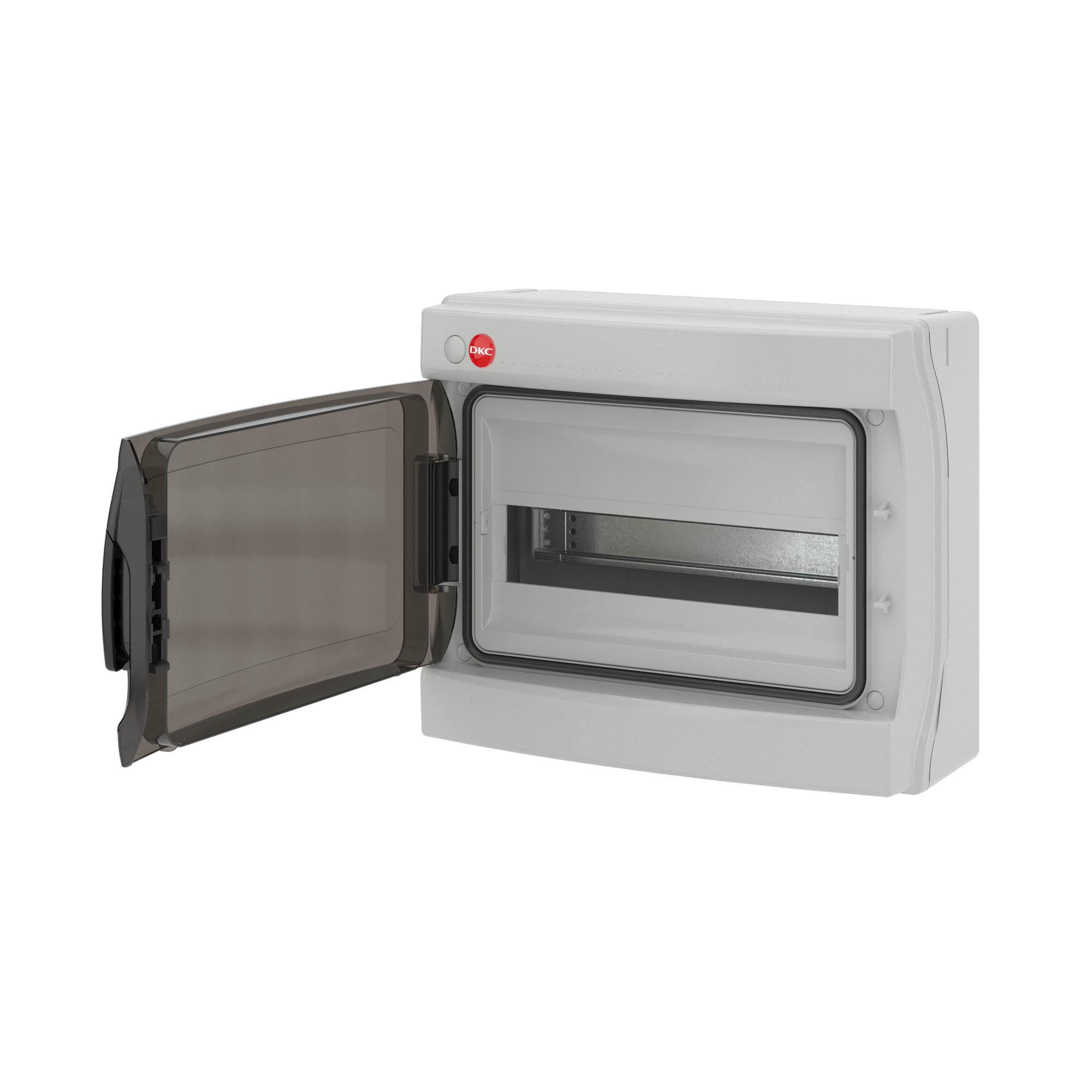

Wall-mounted plastic shield with door 12 mod.,IP65, gray , with terminal block 63A
Code: RB12W6TGD
Wall-mounted plastic shield with door 12 mod.,IP65, gray , with terminal block 63A
Code: RB12W6TGD
| Mounting method | Surface mounted (plaster) |
| Type of cover | Door |
| DIN-rail | Yes |
| Material housing | Plastic |
| Transparent cover/door | Yes |
| With lock | Yes |
| Cover model | Closed |
| Color | gray |
| Material | PVC |
| Height | 263 mm |
| Width | 314 mm |
| Depth | 143 mm |
| Degree of protection | IP65 |
| Shock resistance, J | IK10 |
Accessories
Drawings
| Seria | Name | DWG | STEP |
|---|---|---|---|
|
