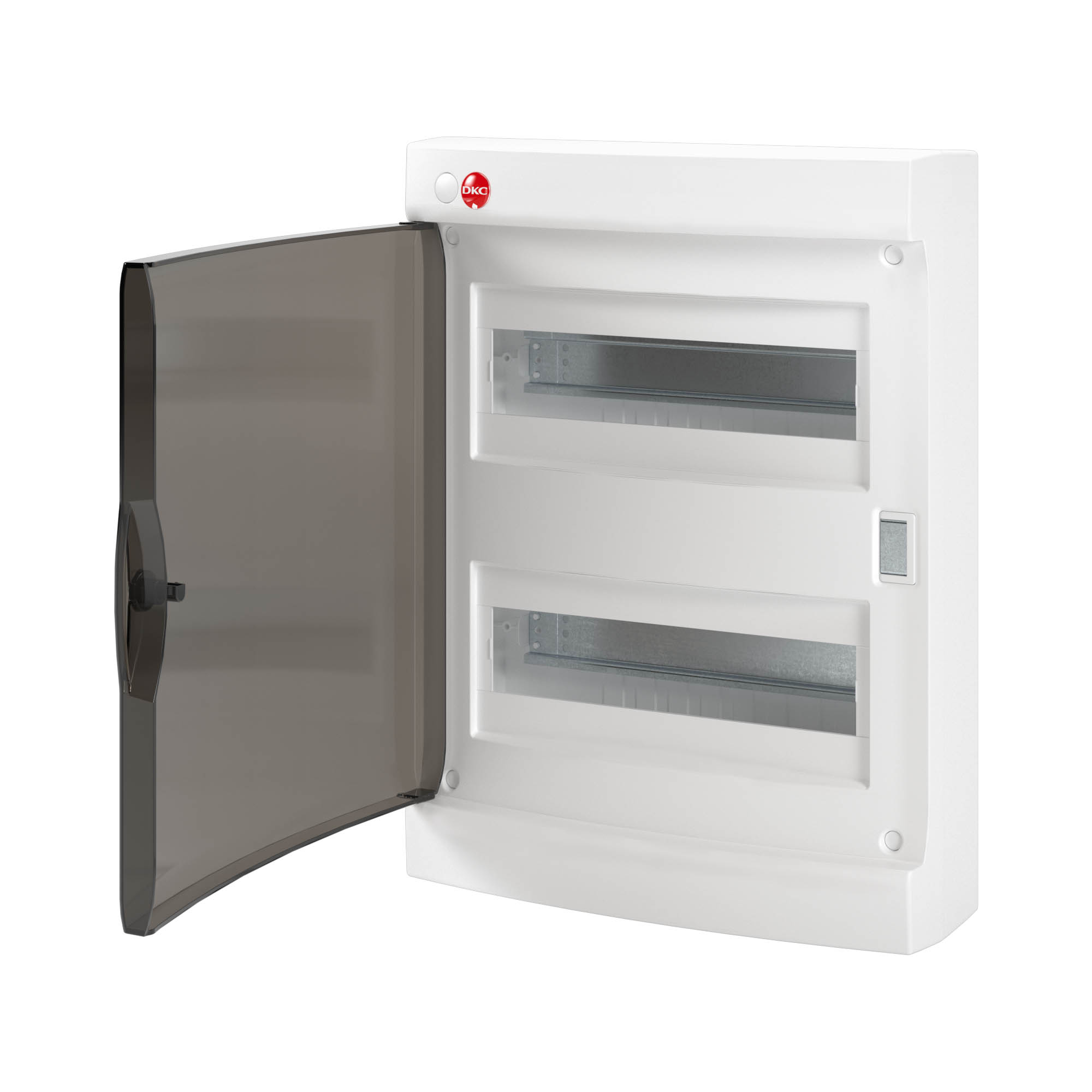

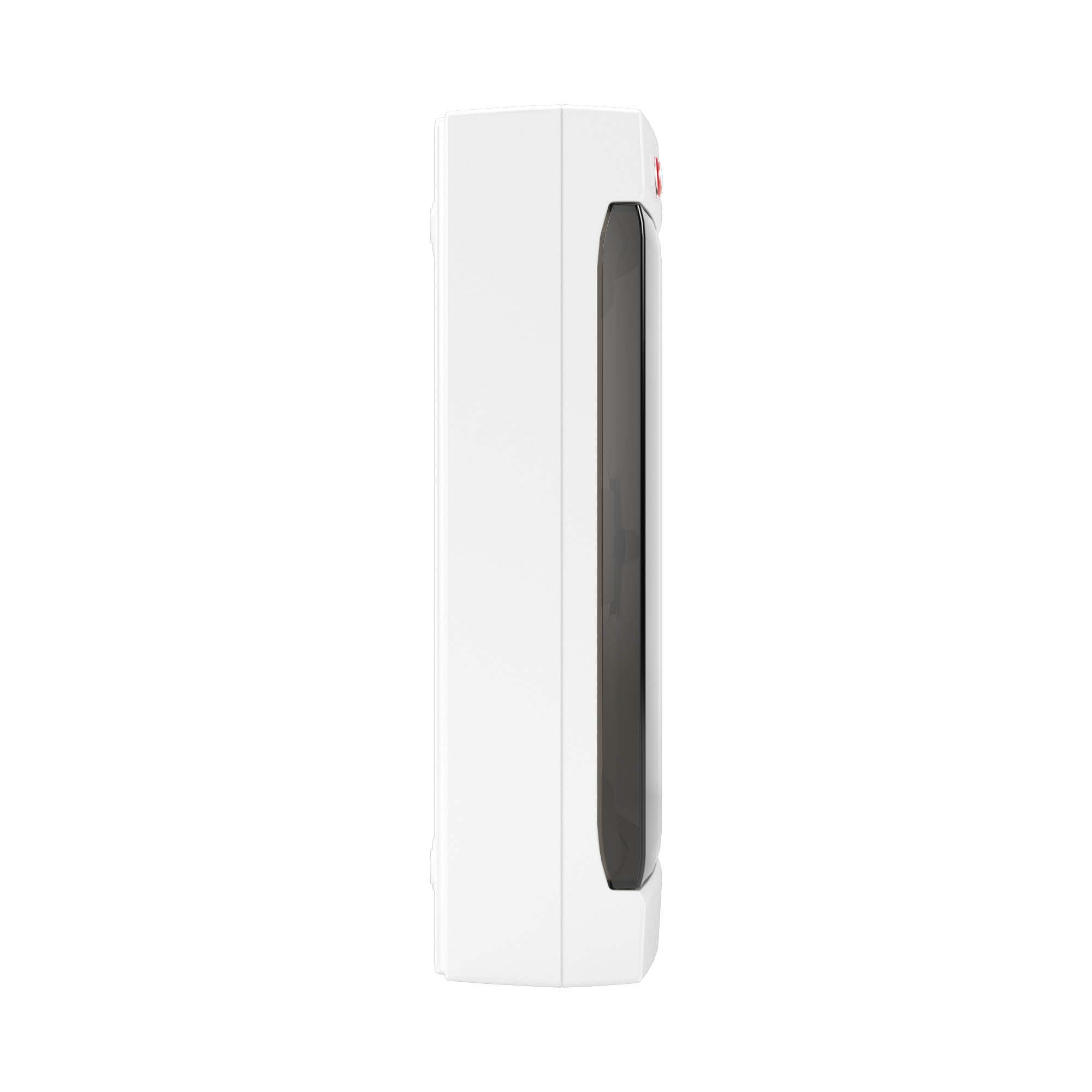

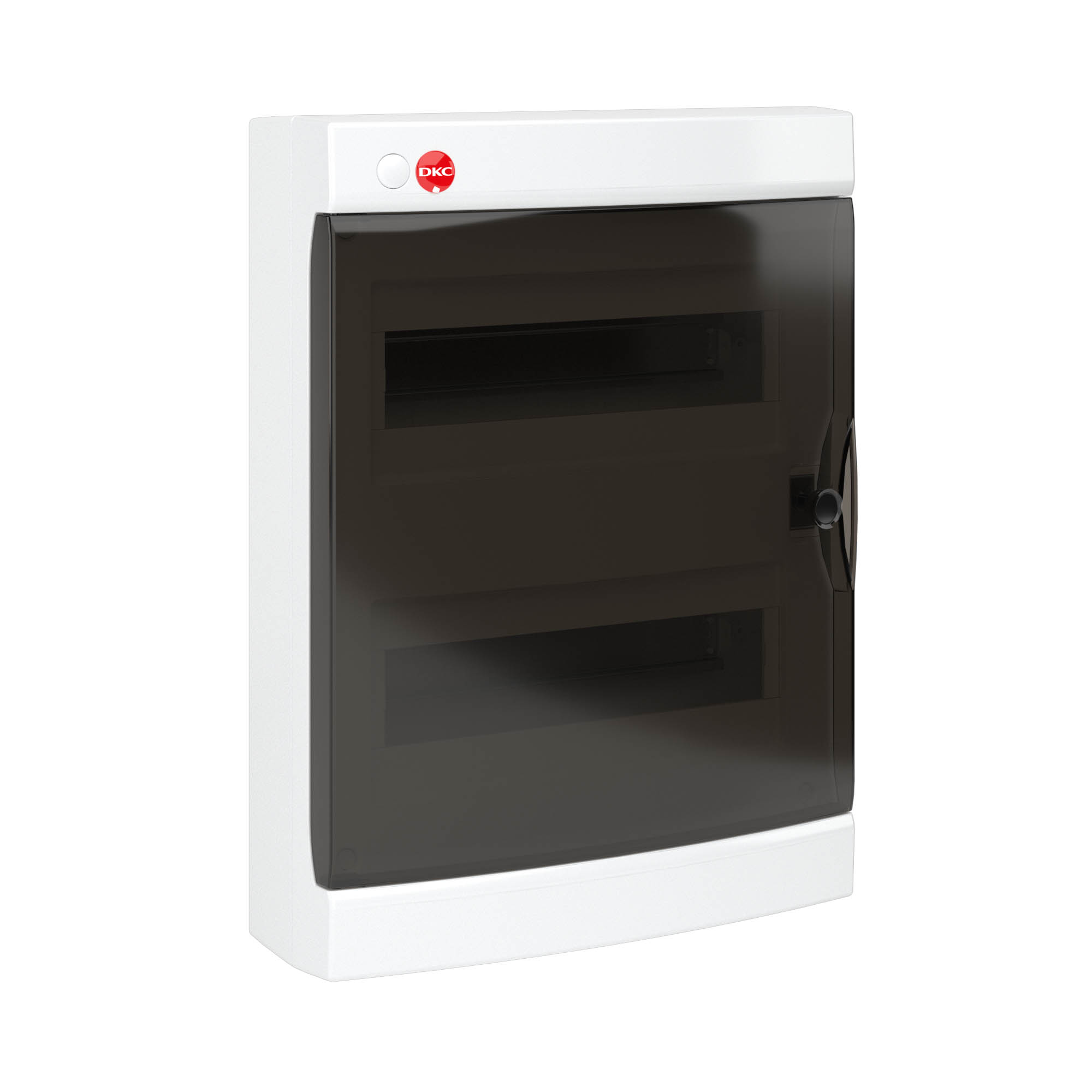

Wall-mounted plastic shield with door 24 mod.,IP41, white , with terminal block 63A
Code: RB24W4TWD
Wall-mounted plastic shield with door 24 mod.,IP41, white , with terminal block 63A
Code: RB24W4TWD
| Mounting method | Surface mounted (plaster) |
| Type of cover | Door |
| DIN-rail | Yes |
| Material housing | Plastic |
| Transparent cover/door | Yes |
| With lock | Yes |
| Cover model | Closed |
| Color | White |
| Material | PVC |
| Height | 402 mm |
| Width | 301 mm |
| Depth | 113 mm |
| Degree of protection | IP41 |
| Shock resistance, J | IK08 |
