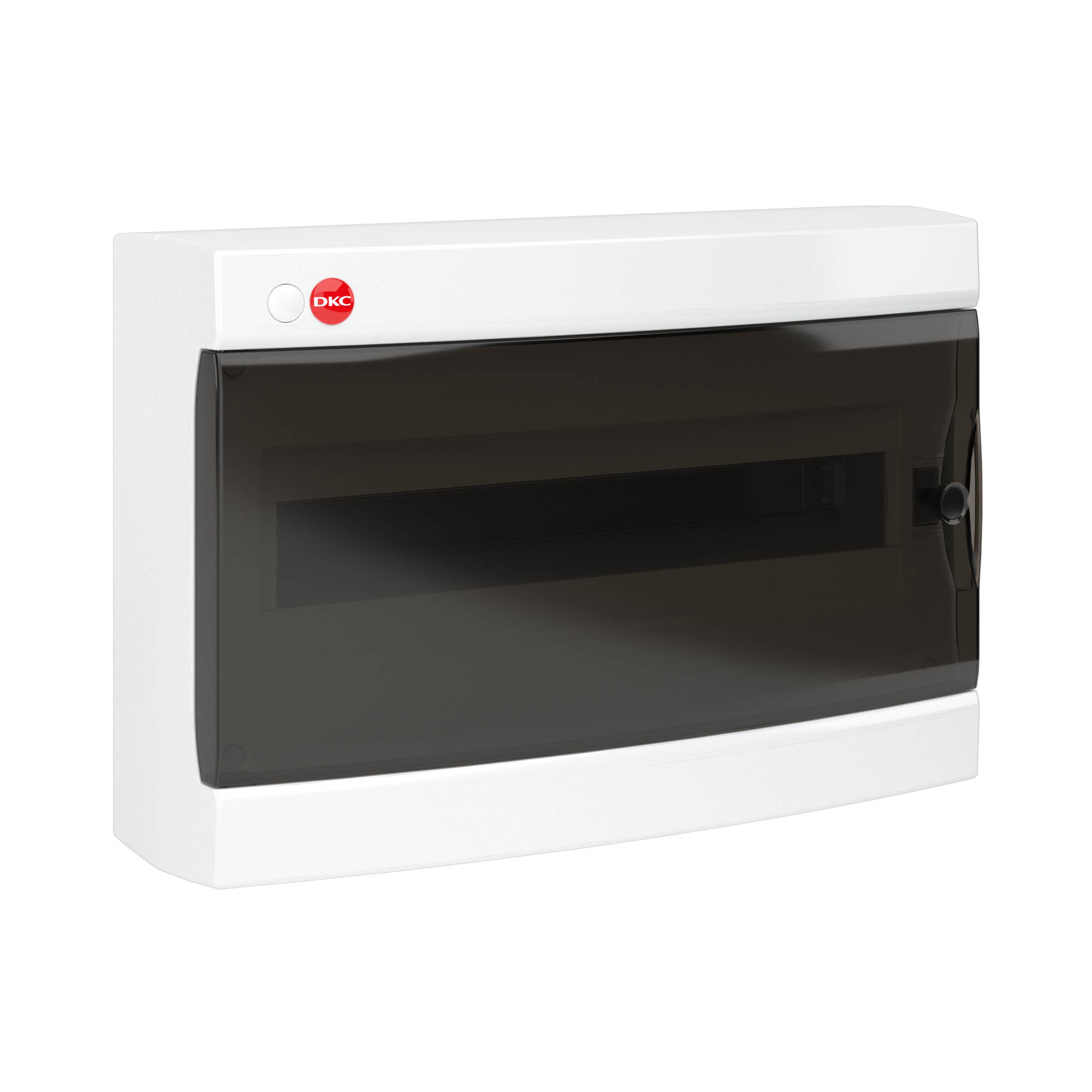

Plastic shield 18modules, IP41 white with a terminal block.2х87518 and lock

Code: 84918
Color gray
Material PVC
Height, mm 275
Width, mm 408
Ingress Protection rating, IP 41
Shock resistance, J 6
Depth, mm 137
Colour White
Width, mm 408
Height, mm 275
Depth, mm 137
RAL-number 9016
With mounting plate No
Number of doors 1
Number of locks 1
EMC-version No
With glazed door Yes
Floor mounting possible No
Material Plastic
Wall mounting possible Yes
Degree of protection (IP) IP41
Suitable for outdoor set-up No
Suitable for metrical mounting Yes
Mounting plate depth-adjustable No
Tackable No
With ventilation door No
Type of surface Other
Surface mounting Yes
With backside door No
Flush-mounted installation No
Drawings
Seria Name STEP DWG
