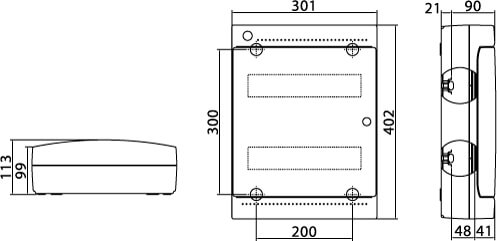

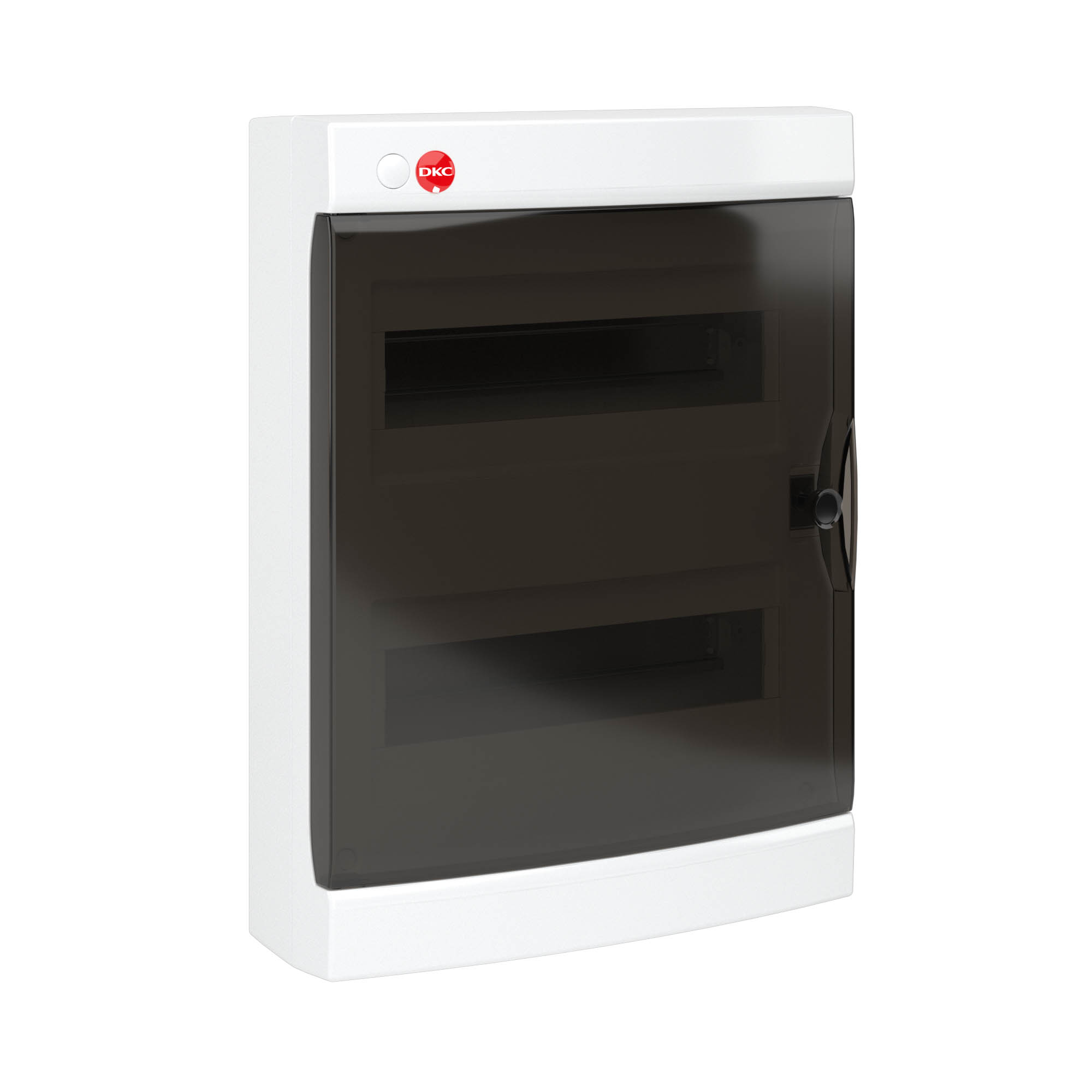

Plastic shield 24modules,,IP41 white with reinforced terminal block 2х87308

Code: 84724

Ingress Protection rating, IP	41
Shock resistance, J	6
Depth, mm	113

Wall mounting possible	Yes
Degree of protection (IP)	IP41
Suitable for outdoor set-up	No
Suitable for metrical mounting	Yes
Mounting plate depth-adjustable	No
Tackable	No
With ventilation door	No
Type of surface	Other
Surface mounting	Yes
With backside door	No
Flush-mounted installation	No

Terminal holder (8 modules)

Code: 87208

Terminal block 18 modules, (5х5.4mm+14х4.5mm)

Code: 87418

Terminal block (2х8modules, + supports)

Code: 87508

Reinforced terminal block (2х18 modules)

Code: 87318

Lock for plastic shield IP65

Code: 87187

Lock for plastic shield IP40

Code: 87188

Lock for plastic shield embeddable IP40

Code: 87189

Stub with double insulation

Code: 87164

Cap on 4 modules, RAL9001 for plastic shield IP41

Code: 87184

Cap on 6 modules, RAL9001 for plastic shield IP41

Code: 87185

Seria	Name	STEP	DWG
RAMbase - plastic modular enclosures	Plastic guards series "RAM base"	ZIP 96.74 MB
RAMbase - plastic modular enclosures	Plastic guards series "RAM base"		ZIP 1.30 MB

Name	Document
Exemption letter for fire safety certificates for boxes "RAM base"	PDF 861.88 kB
