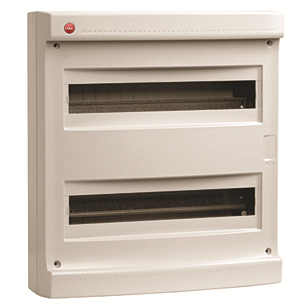

Plastic shield without doors 36 modules, IP40gray, with reinforced terminal block 2х87312
Code: 83736
Plastic shield without doors 36 modules, IP40gray, with reinforced terminal block 2х87312
Code: 83736
| Mounting method | Surface mounted (plaster) |
| Type of cover | None |
| DIN-rail | Yes |
| Material housing | Plastic |
| Color | gray |
| Material | PVC |
| Height, mm | 454 |
| Width, mm | 412 |
| Ingress Protection rating, IP | 40 |
| Shock resistance, J | 6 |
| Depth, mm | 138 |

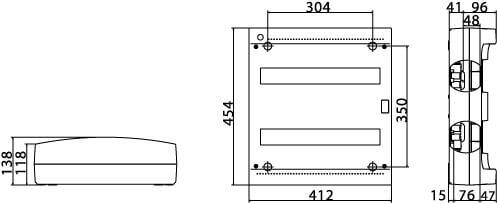

Drawings
| Seria | Name | DWG | STEP |
|---|---|---|---|
|
