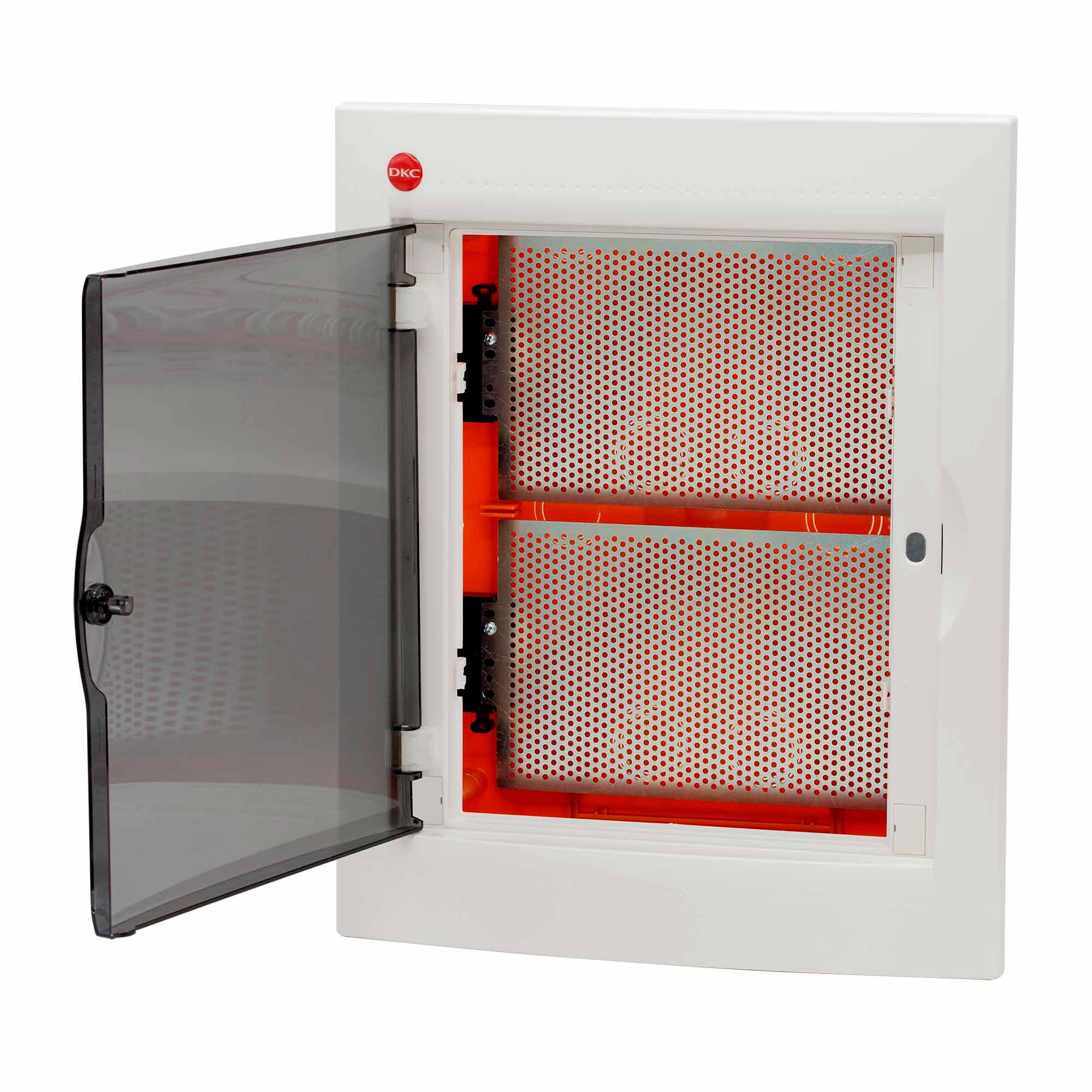

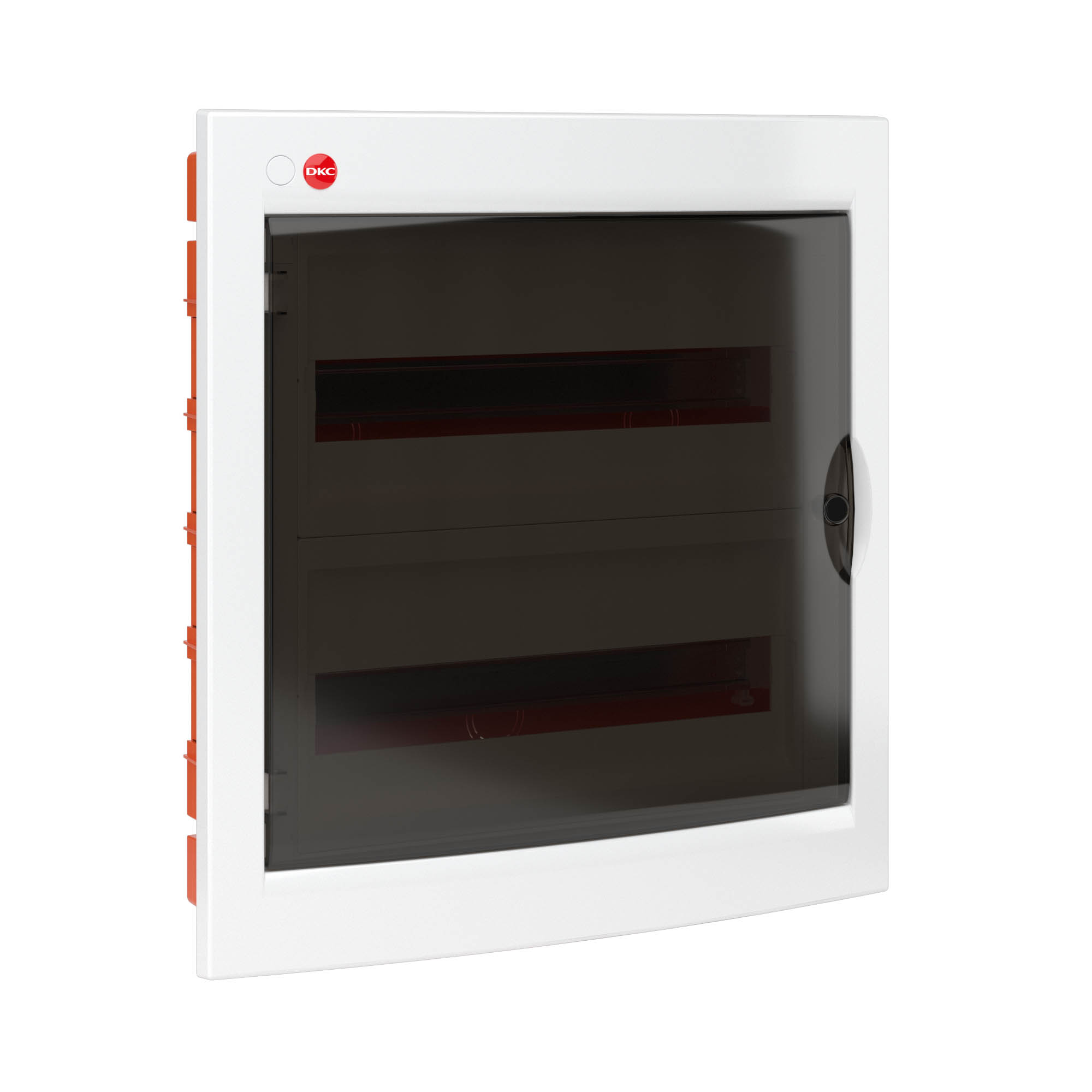

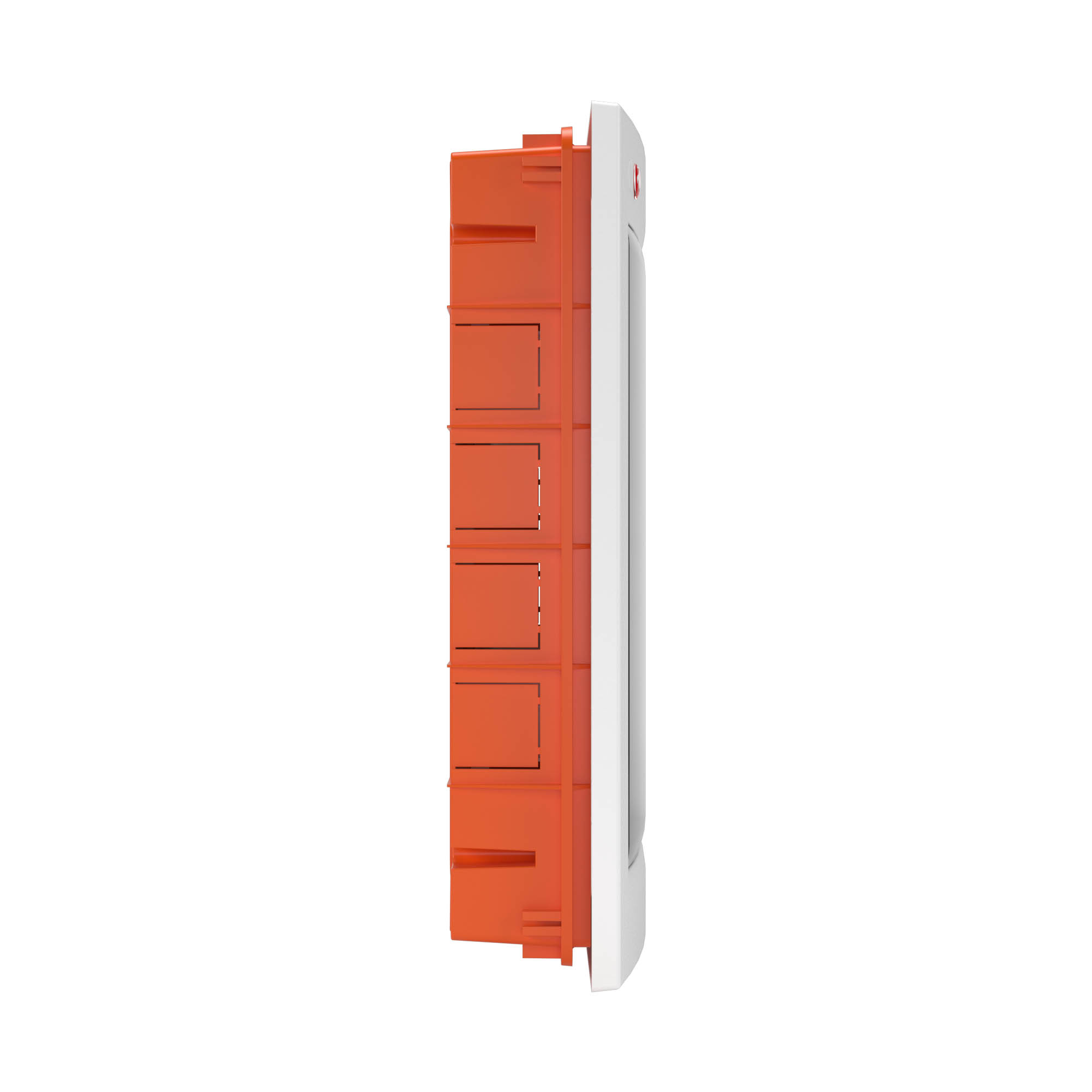

Multimedia built-in shield with door 36 mod.,IP41, white, with mountingboards
Code: RB36B4NWD
Multimedia built-in shield with door 36 mod.,IP41, white, with mountingboards
Code: RB36B4NWD
| Mounting method | Flush mounted (plaster) |
| Colour | White |
| Width, mm | 455 |
| Height, mm | 474 |
| Depth, mm | 114 |
| RAL-number | 9016 |
| With mounting plate | Yes |
| Built-in depth, mm | 77 |
| Number of rows | 2 |
| Type of cover | Door |
| EMC-version | Yes |
| Extension possible | Yes |
| DIN-rail | Yes |
| Material housing | Plastic |
| Degree of protection (IP) | IP41 |
| Transparent cover/door | Yes |
| With lock | Yes |
| Cover model | Closed |
Drawings
| Seria | Name | DWG | STEP |
|---|---|---|---|
|
