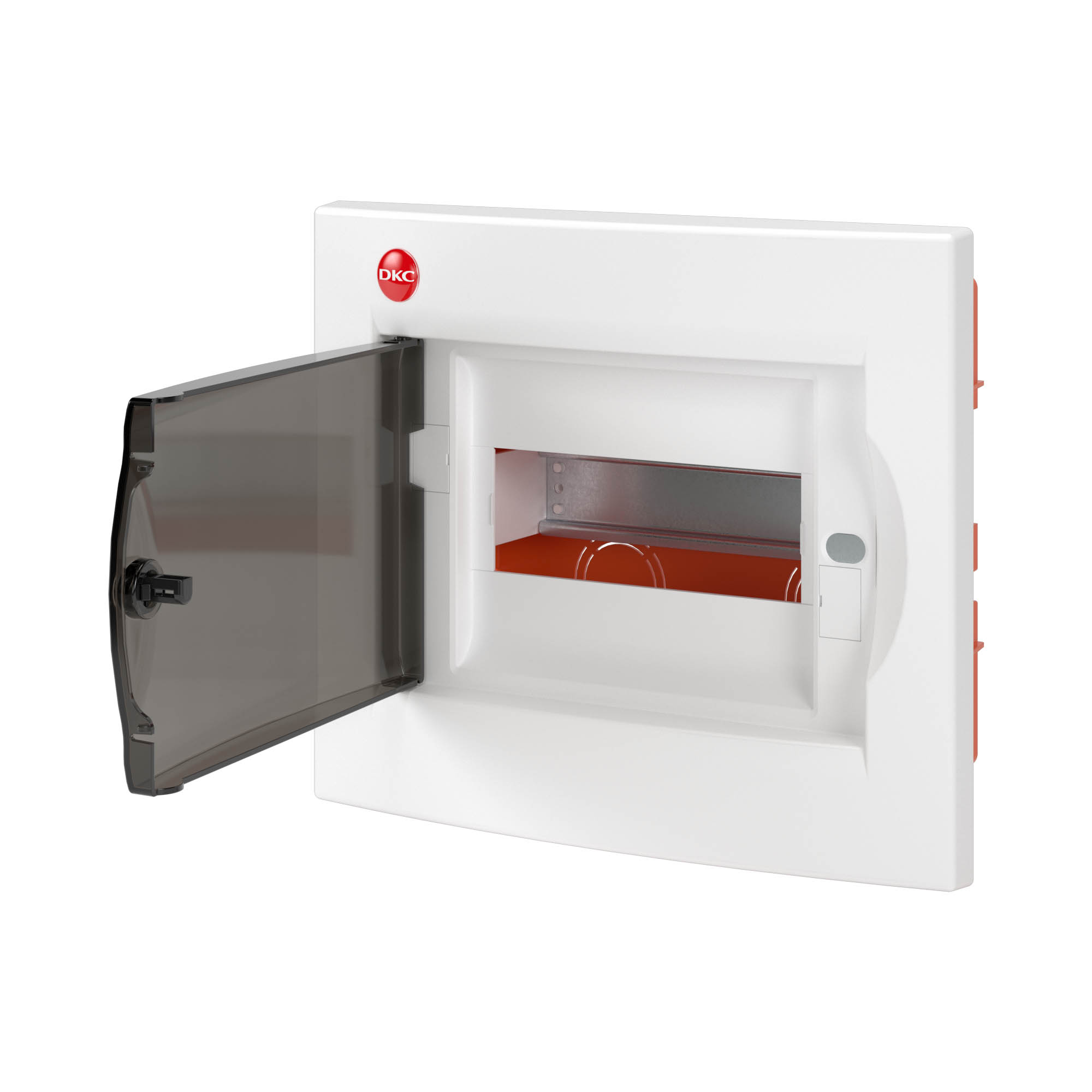

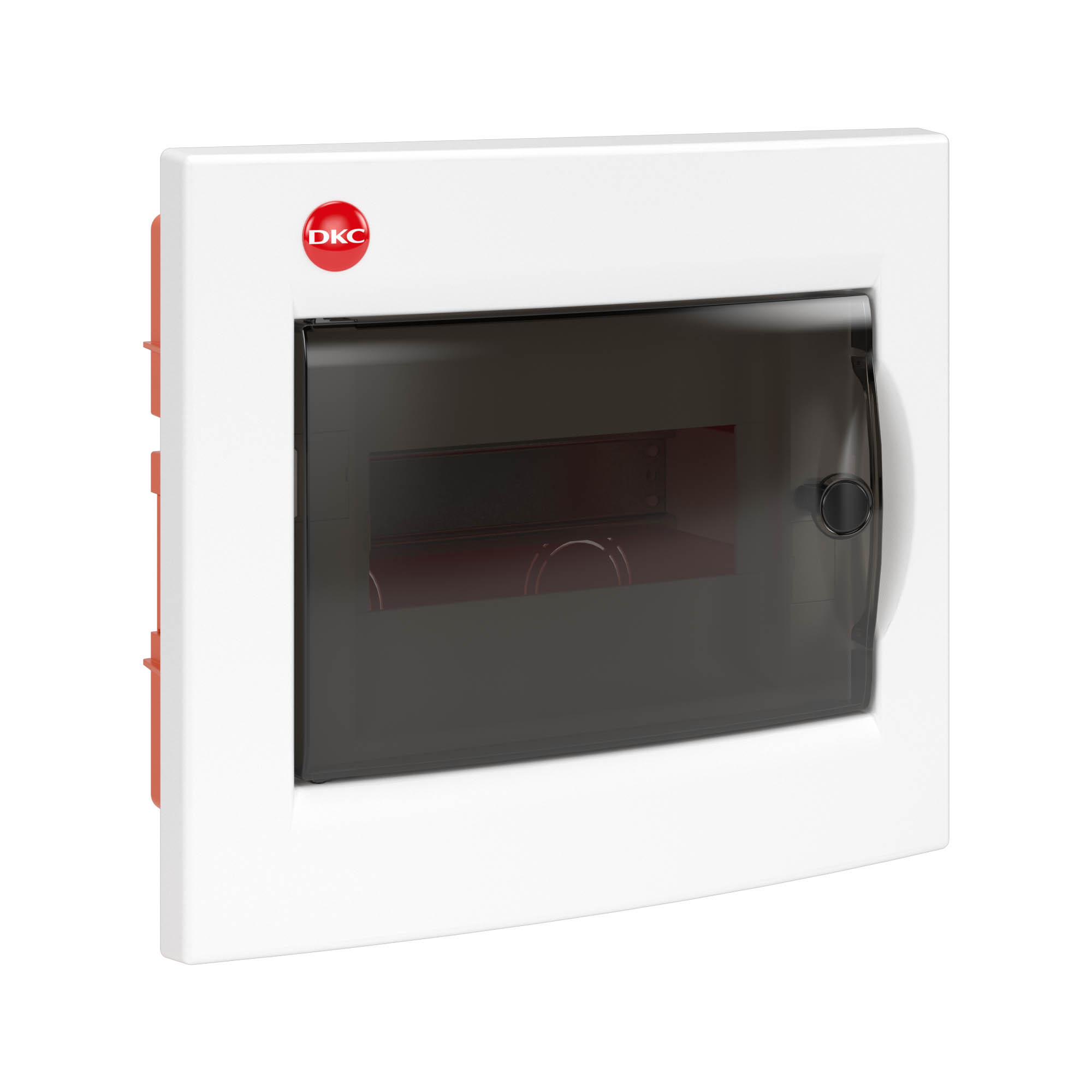

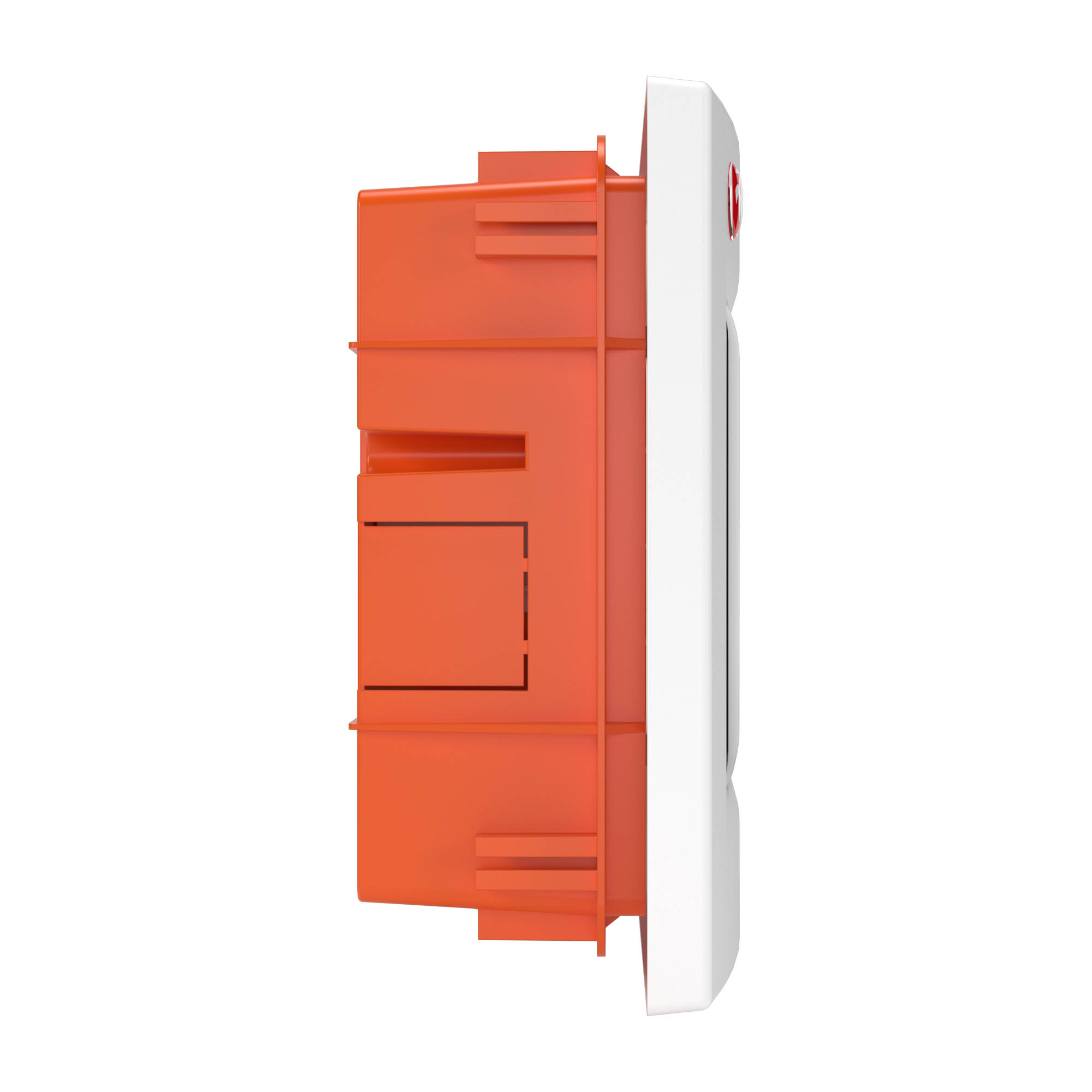

Plastic shield embeddable 8modules, IP41 white, with reinforced terminal block 1х87308

Code: 81708

Plastic shield embeddable 8modules, IP41 white, with reinforced terminal block 1х87308

Code: 81708
Mounting method Flush mounted (plaster)
Type of cover Door
DIN-rail Yes
Material housing Plastic
Transparent cover/door Yes
With lock Yes
Cover model Closed
Color White
Material PVC
Height, mm 225
Width, mm 261
Ingress Protection rating, IP 41
Shock resistance, J 6
Depth, mm 100
Depth of niche, mm 72
Accessories

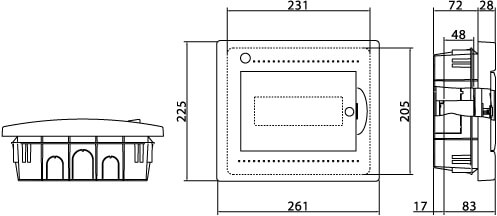

Drawings
Seria Name DWG STEP
Plastic modular enclosures - "RAMbase"
Plastic modular enclosures - "RAMbase"
