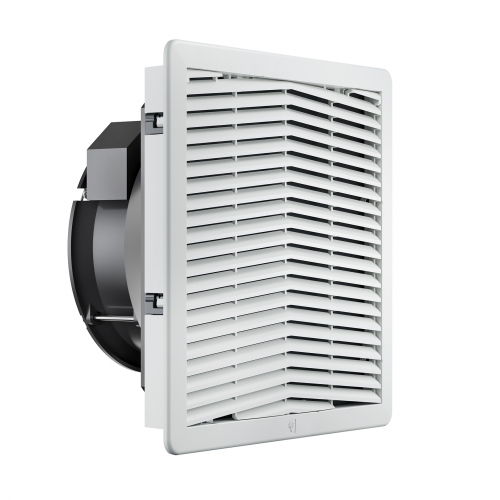

Fan with filter CHF 224/270 m3/h, 230 V, 250x250 mm, IP54

Code: R5CHF15230BE
Fan with filter CHF 224/270 m3/h, 230 V, 250x250 mm, IP54
  • To ask a question
Mounting method Snap mounting
Width, mm 250
Height, mm 250
Depth, mm 123
Suitable for 19 inch rack mounting Нет
Number of fans 1
EMC-version Нет
Degree of protection (IP) IP54
With filter Да
Rated power, W 32
Roof ventilator Нет
Built as slide-in ventilator Нет
Volume flow, freeblowing, m³/h 224
Air circulator Нет
Wall build in Да
Operating voltage at AC 50 Hz, V 230
Operating voltage at AC 60 Hz, V 230
Voltage type AC
RAL-number 7035
With protective cover ДА
Noise emission, dB(A) 50
Colour Grey
Product type Fan
Mounting type Wall-mounted
Rated operating voltage V, ~, Hz 230 V, 1 p, 50/60 Hz
Unimpeded air flow 224 m3/h
Size Size 15 252 x 252 / 250 x 250
EMC-version No
Thick-wall version Yes
Code of ventilation grille R5GCH15F
External dimensions (W x H x D), mm 250 x 250 x 123
Maximum installation depth, mm 118
Required mounting cut-out (W x H), mm 223 x 223
Degree of protection IP54
Optionally degree of protection IP55
Material ABS plastic, PC, UL94V0
Operating temperature range, ˚C -10…+50
Storage temperature range, ˚C -40…+70
Noise level, dB(A) 50
Rated current, A 0.14
Rated power consumption, W 32
Maximum static pressure, Pa 110
Service life (MTBF), h 45000
Filter class G3
Color RAL 7035
Weight, kg 1.7
Delivery package Fan, air filter mat, drilling templates
