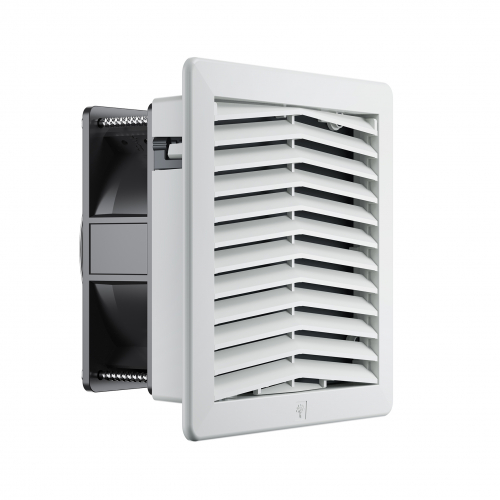

Fan with filter CHF 46/53 m3/h, 230 V, 150x150 mm, IP54

Code: R5CHF12230
Fan with filter CHF 46/53 m3/h, 230 V, 150x150 mm, IP54
  • To ask a question
Mounting method Snap mounting
Width, mm 150
Height, mm 150
Number of fans 1
EMC-version Нет
Degree of protection (IP) IP54
With filter Да
Rated power, W 17
Roof ventilator Нет
Volume flow, freeblowing, m³/h 46
Operating voltage at AC 50 Hz, V 230
Operating voltage at AC 60 Hz, V 230
Voltage type AC
RAL-number 7035
With protective cover ДА
Noise emission, dB(A) 43
Depth, mm 75.6
Suitable for 19 inch rack mounting Нет
Built as slide-in ventilator Нет
Air circulator Нет
Wall build in Да
Colour Grey
Product type Fan
Mounting type Wall-mounted
Rated operating voltage V, ~, Hz 230 V, 1 p, 50/60 Hz
Unimpeded air flow 46 m3/h
Size Size 12 150 x 150
EMC-version No
Thick-wall version Yes
Code of ventilation grille R5GCH12F
External dimensions (W x H x D), mm 150 х 150 х 75,6
Maximum installation depth, mm 71.1
Required mounting cut-out (W x H), mm 125 x 125
Degree of protection IP54
Optionally degree of protection IP55
Material ABS plastic, PC, UL94V0
Operating temperature range, ˚C -10…+50
Storage temperature range, ˚C -40…+70
Noise level, dB(A) 43
Rated current, A 0.1
Rated power consumption, W 17
Maximum static pressure, Pa 52
Service life (MTBF), h 45000
Filter class G3
Color RAL 7035
Weight, kg 0.8
Delivery package Fan, air filter mat, drilling templates
