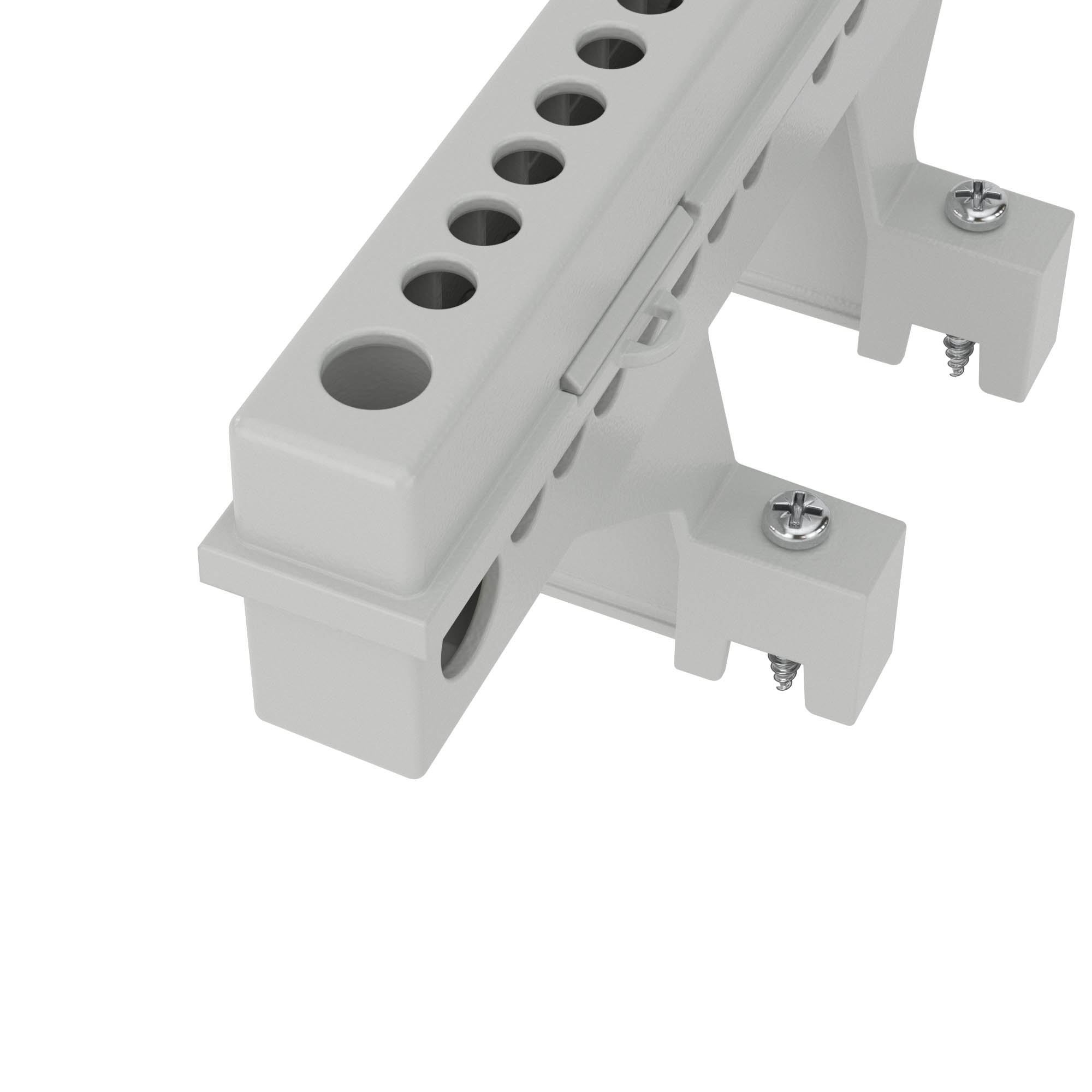

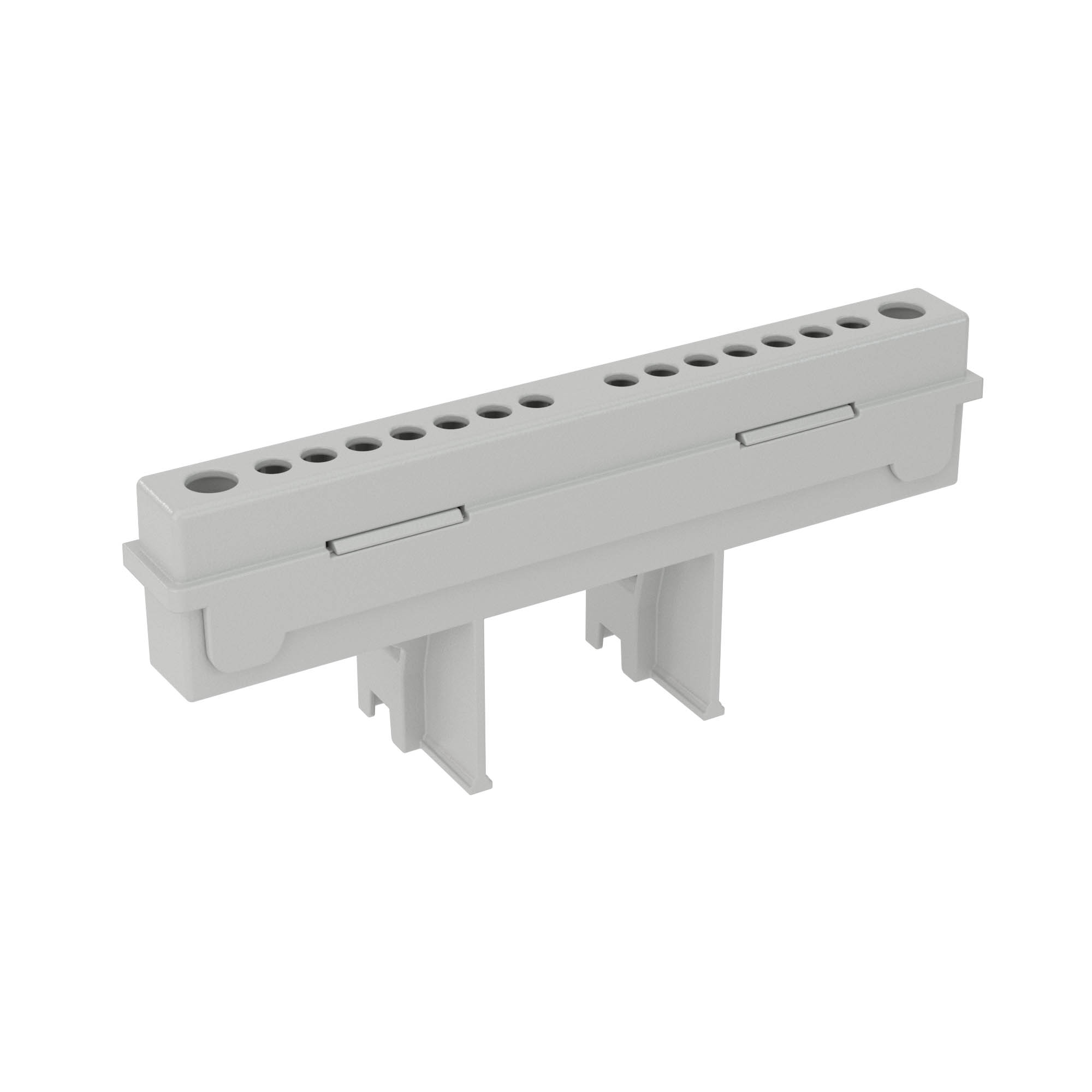

Terminal block (2х8modules, + supports)

Code: 87508
Mounting method Special profiles
Colour Other
Nominal rated voltage, V 400
Number of poles 16
Length, mm 137,8
Operation temperature, °C -60 - +80
Number of clamp positions per pole 7
Width/grid dimension, mm 5,4
Height at lowest possible mounting height, mm 15
Closing plate required No
Transparent No
Explosion-tested version 'Ex e' No
Inflammability class of insulation material acc. with UL94 V0
Type of electrical connection 1 Screw connection
Type of electrical connection 2 Screw connection
Material insulation body Other
Connection position Sideways
