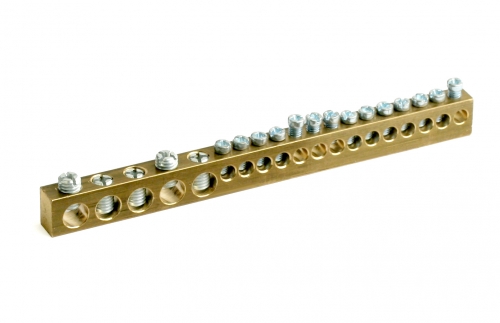

Terminal block 18 modules, (5х5.4mm+14х4.5mm)

Code: 87418
Mounting method Special profiles
Colour Other
Nominal rated voltage, V 400
Number of poles 18
Length, mm 165
Operation temperature, °C -60…80
Number of clamp positions per pole 14
Width/grid dimension, mm 5.4
Closing plate required Yes
Transparent No
Explosion-tested version 'Ex e' No
Inflammability class of insulation material acc. with UL94 Other
Type of electrical connection 1 Screw connection
Type of electrical connection 2 Screw connection
Material insulation body None
Connection position Sideways
P121 Yes
