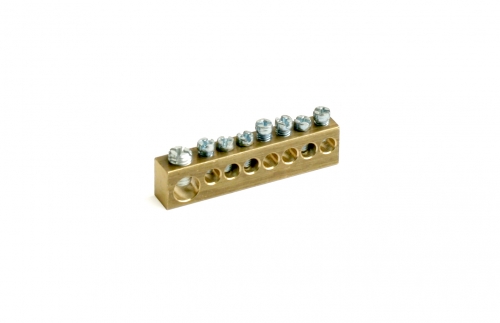

Terminal block 8 modules, (1х5.4mm+7х4.5mm)

Code: 87408
Terminal block  8 modules, (1х5.4mm+7х4.5mm)
  • To ask a question
Mounting method Special profiles
Colour Other
Nominal rated voltage, V 400
Number of poles 8
Length, mm 67
Operation temperature, °C -60…80
Number of clamp positions per pole 7
Width/grid dimension, mm 5.4
Closing plate required Yes
Transparent No
Explosion-tested version 'Ex e' No
Inflammability class of insulation material acc. with UL94 Other
Type of electrical connection 1 Screw connection
Type of electrical connection 2 Screw connection
Material insulation body None
Connection position Sideways
Drawings
Seria Name STEP DWG
