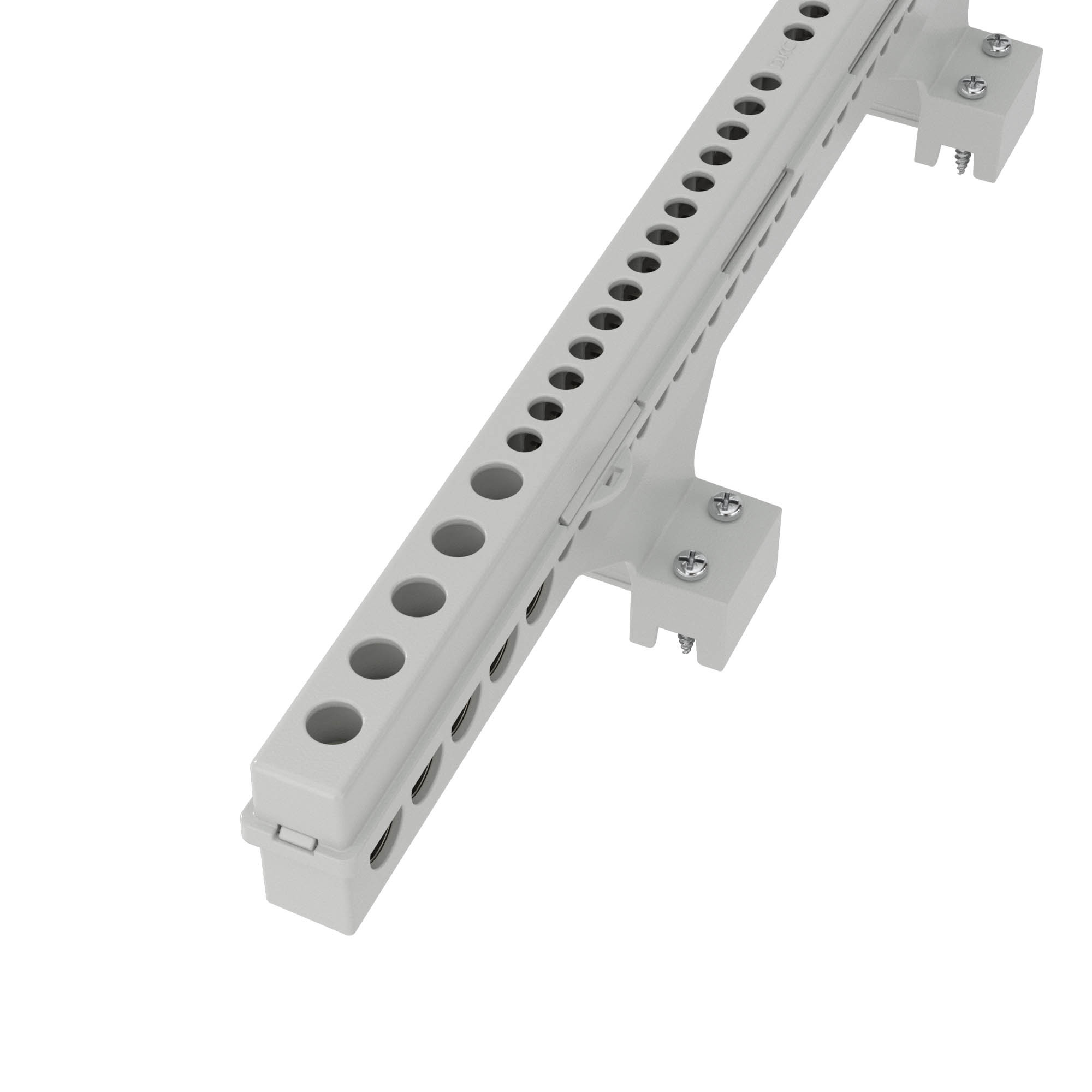

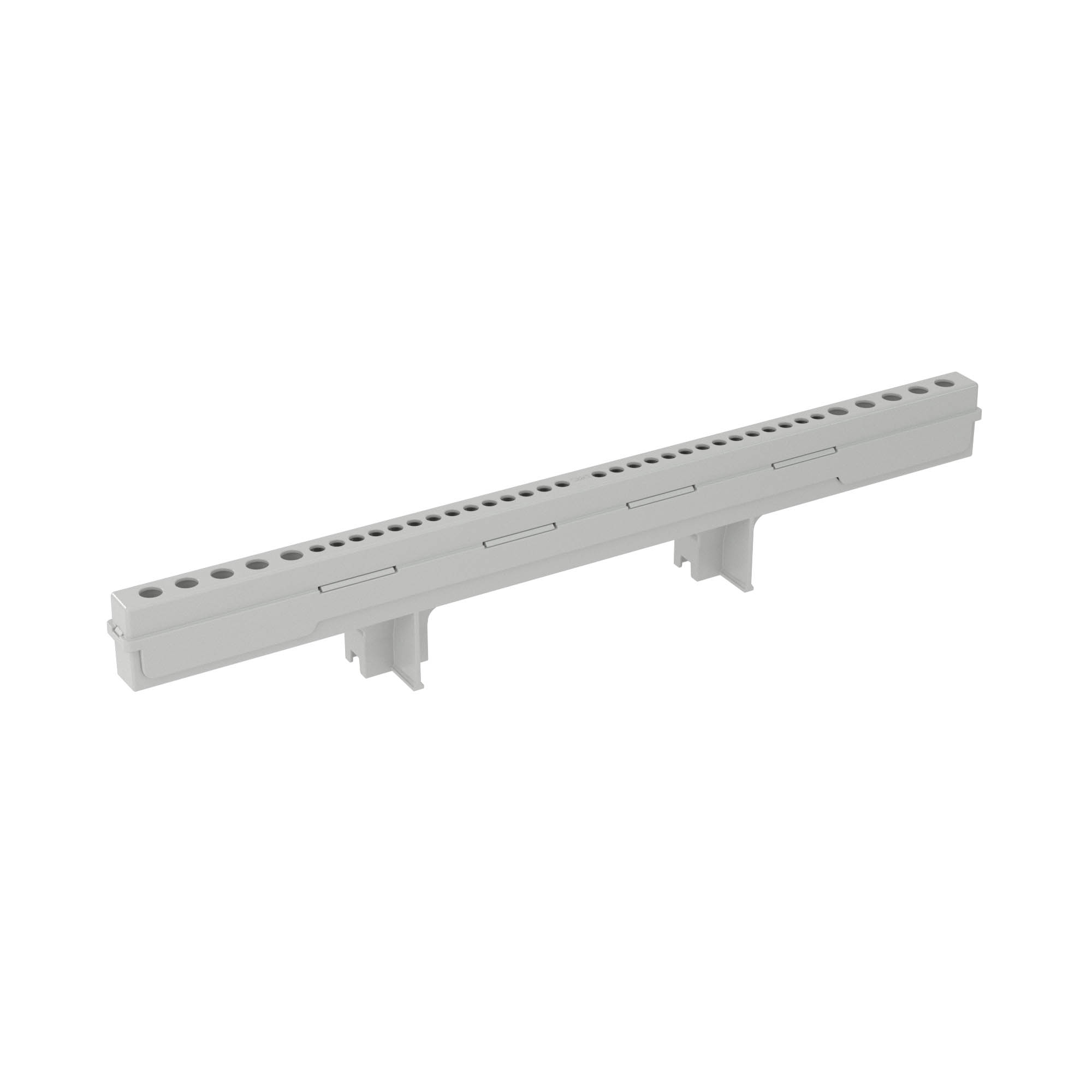

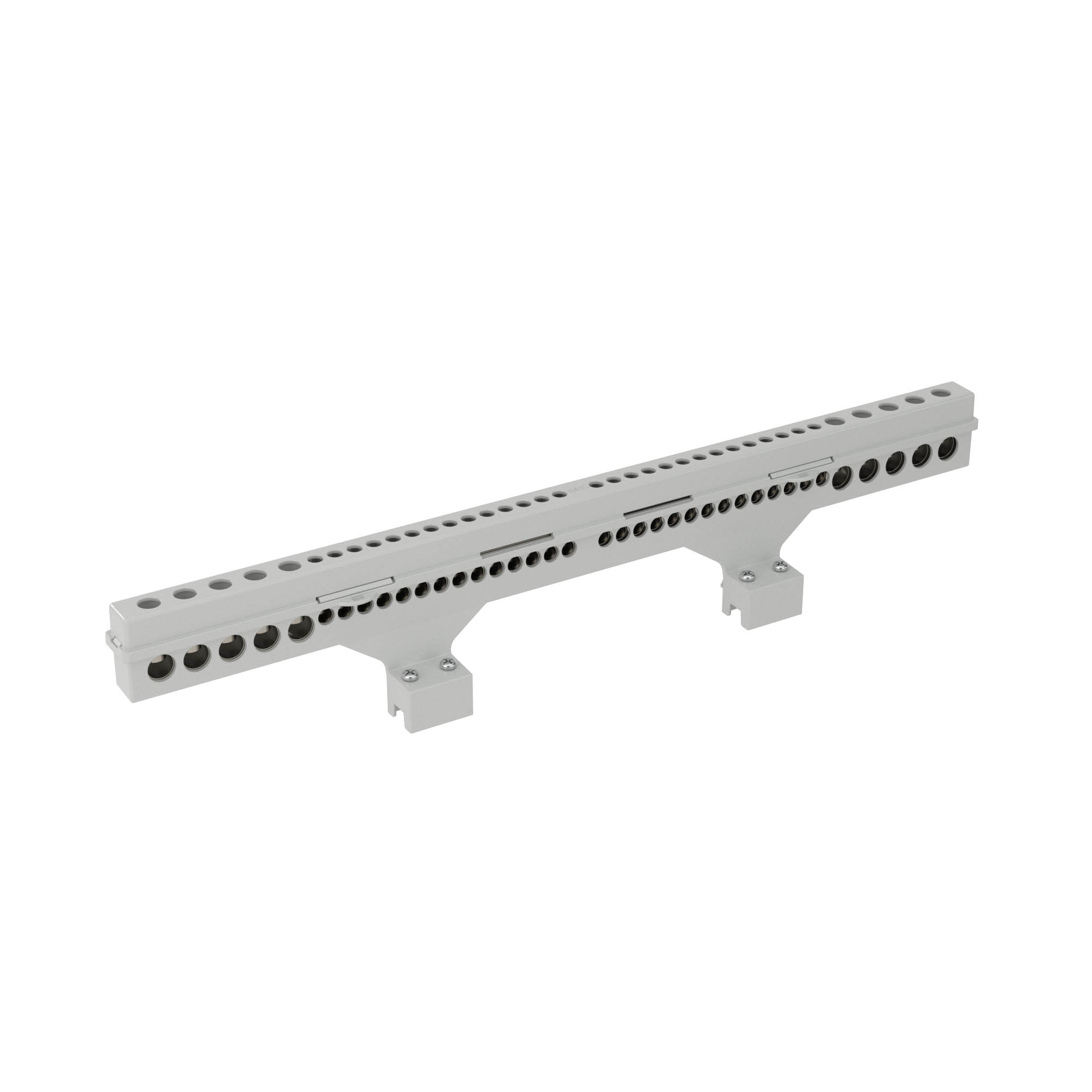

Reinforced terminal block (2х18 modules)
Code: 87318
Reinforced terminal block (2х18 modules)
Code: 87318
| Mounting method | Special profile |
| Colour | Other |
| Rated voltage, V | 400 |
| Number of poles | 36 |
| Length, mm | 335 |
| Operating temperature, °C | -60…80 |
| Number of clamp positions per pole | 14 |
| Width/grid dimension, mm | 9 |
| Height at lowest possible mounting height, mm | 15 |
| Closing plate required | No |
| Transparent | No |
| Explosion-tested version 'Ex e' | No |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Material insulation body | Thermoplastic |
| Connection position | Sideways |
